StarTech HDMI to USB C Video Capture Device, UVC, 1080p, 60fps - UVCHDCAP
Model # UVCHDCAP
-
SKU: UVCHDCAP
- Pick Up Available
- Australian Warranty
- Checkout Securely

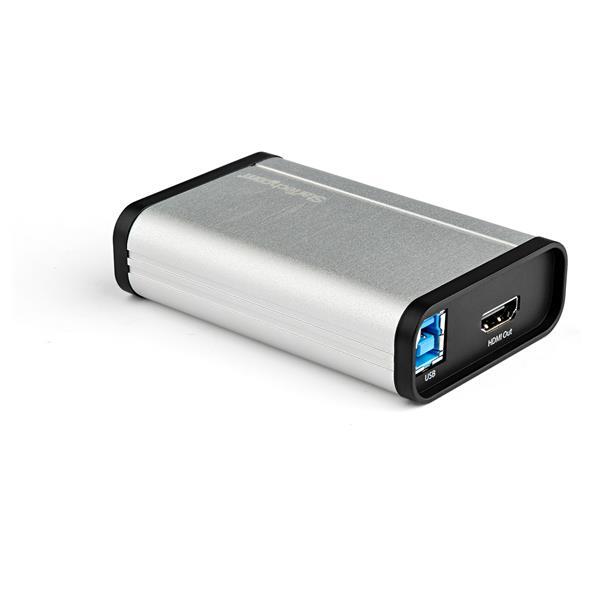

StarTech.com HDMI to USB 5Gbps Video Capture Device
A UVC-compatible external capture device that records or streams unprotected HDMI video at up to 1080p 60fps to a USB-A, USB-C or Thunderbolt host, with HDMI pass-through and 3.5mm stereo audio input.
Why choose UVCHDCAP?
Captures unprotected HDMI video at up to 1920 x 1080 60fps.
USB Video Class support enables driverless operation with compatible systems.
USB 5Gbps connection with USB-A and USB-C host cables included.
Best-fit applications
- Record meetings, presentations, training sessions or camera feeds
- Live-stream unprotected HDMI content using compatible UVC software
- Capture gameplay or other permitted HDMI sources at up to 1080p60
Australian warranty assurance
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for 2 years. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Information verified against the supplied DeviceDeal source workbook, the exact DeviceDeal product page and exact-SKU official StarTech.com product data.
Read DeviceDeal buying guidesFrequently asked questions
What does StarTech.com UVCHDCAP do?
A UVC-compatible external capture device that records or streams unprotected HDMI video at up to 1080p 60fps to a USB-A, USB-C or Thunderbolt host, with HDMI pass-through and 3.5mm stereo audio input.
Which devices or systems work with UVCHDCAP?
Current StarTech data lists Windows 8 through 11, macOS 10.11 and later versions listed by StarTech, and Linux 4.x or later LTS releases. Compatible UVC capture software is required.
What connectors does UVCHDCAP use?
Inputs are HDMI and 3.5mm stereo; host output is USB 3.2 Gen 1 Type-B. USB-C-to-B, USB-A-to-B and HDMI cables are included.
What performance does UVCHDCAP support?
Maximum capture resolution is 1920 x 1080 at 60fps with 2-channel stereo audio over a USB 5Gbps host connection.
Does UVCHDCAP need external power?
The capture device is powered from the 5V USB host connection; no separate AC adapter is listed.
What is included with UVCHDCAP?
Capture device, 1m USB-C-to-USB-B cable, 1m USB-A-to-USB-B cable, 1m HDMI cable and quick-start guide.
What should I check before buying UVCHDCAP?
A USB 3.0/5Gbps or faster host is required; it will not work through USB 2.0 or 1.1 controllers. HDCP-protected video cannot be captured.
What warranty applies to UVCHDCAP in Australia?
This Australian version supplied by DeviceDeal carries the official StarTech.com 2 years manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; eligibility and assessment are subject to StarTech terms.
(UVCHDCAP)
Features and highlights
- Captures unprotected HDMI video at up to 1920 x 1080 60fps
- USB Video Class support enables driverless operation with compatible systems
- USB 5Gbps connection with USB-A and USB-C host cables included
- HDMI pass-through and 3.5mm stereo audio input
- Supports third-party UVC software such as OBS, Teams and Zoom
StarTech.com HDMI to USB 5Gbps Video Capture Device
Product ID: UVCHDCAP
Video and audio
| Maximum capture resolution | 1920 x 1080 at 60fps |
|---|---|
| Other supported resolutions | 1280 x 720, 1024 x 768, 800 x 600 |
| Audio | 2-channel stereo |
| Standards | UVC; MPEG-4/H.264 |
Connectivity

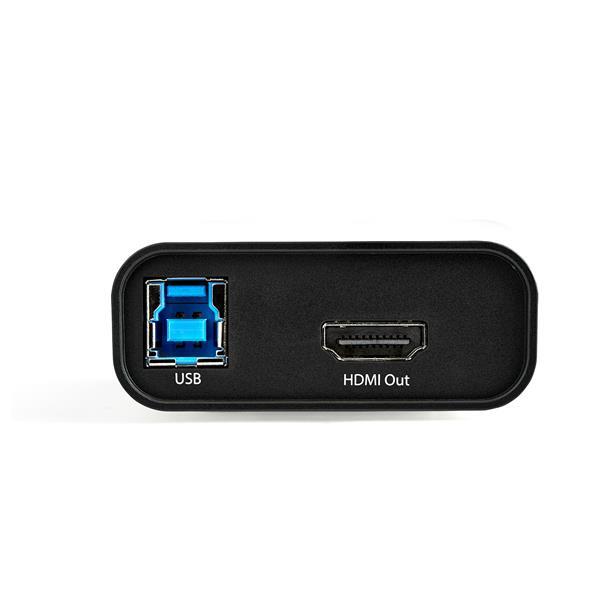

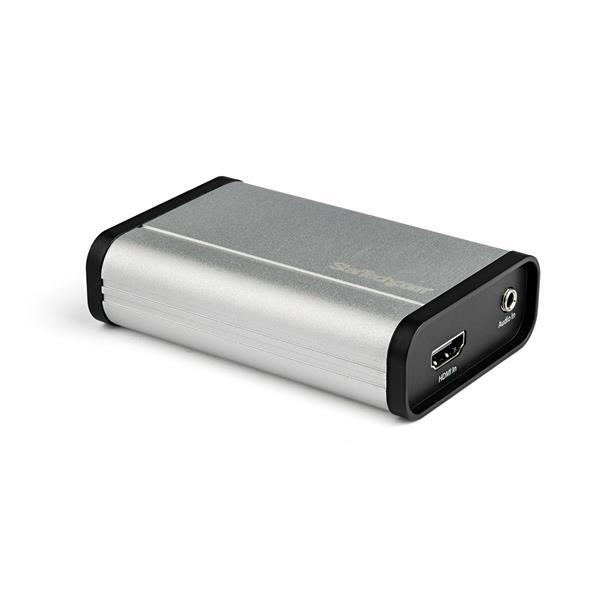

| AV input | 1 x HDMI female; 1 x 3.5mm stereo female |
|---|---|
| Host connection | 1 x USB 3.2 Gen 1 Type-B female, 5Gbps |
| Host cables | USB-C to USB-B and USB-A to USB-B, 1m each |
| HDMI cable | 1m included |
Physical and warranty
| Dimensions | 92 x 60 x 23mm |
|---|---|
| Weight | 86g |
| Colour | Silver and black |
| Warranty | 2 Years |
| SKU | UVCHDCAP |
| Barcode # | 65030876025 |
| Brand | Startech |
| Shipping Weight | 0.3900kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.050m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.001650000m3 |
