This VGA to RCA/S-Video converter box provides a simple way to convert and scale a 1080p VGA video input signal to a 480i composite (CVBS) or S-Video output signal. Perfect for use with legacy projectors or TV sets.
Hassle-Free Setup and Easy to Use

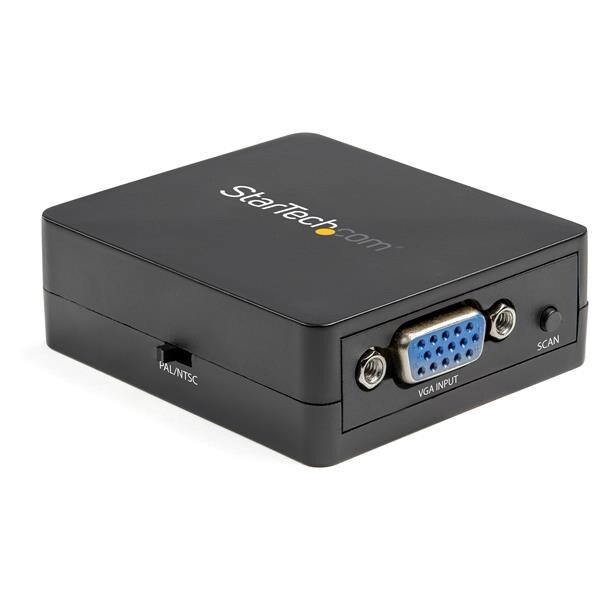

Equipped with a NTSC/PAL toggle switch and a scan button for simple configuration and selection of your video output settings, this compact VGA to Composite and S-Video adapter installs quickly and easily, for a true plug-and-play experience.
Save on Upgrade Costs
By using this VGA to AV adapter you can connect a PCs VGA connector to legacy TVs and projectors, ultimately saving the costs of upgrading your equipment. It's ideal for boardroom settings, medical imaging and watching videos on your S-Video or Composite display.
Crystal-Clear Picture Quality
The PC to television converter features an integrated video scaler circuit that dynamically converts VGA video input signals with resolutions up to 1920x1200 @ 60Hz. To ensure compatibility with your display or projector the computer to TV converter outputs high quality 640 x 480 video, the highest supported by S-Video or Composite.
VGA2VID2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- An inexpensive way to increase the size of a computer display
- Displays computer screen images on your TV or Projector
This VGA to RCA and S-Video AV adapter box is equipped with an NTSC/PAL toggle switch and a scan button for simple configuration - This PC connector to television converter features an integrated video scaler circuit that dynamically converts VGA video input resolutions up to 1080p @ 60Hz - To ensure compatibility with your display or projector the computer to TV converter outputs high quality 720 x 480 video which is the highest supported by S-Video or Composite (CVBS)
(VGA2VID2)
Specifications
Warranty Information | Warranty | 2 Years |
---|---|---|
Connector(s) | 1 - Connector A | VGA (15 pin, High Density D-Sub) |
1 - Connector B | S-Video (4 pin, Mini-DIN) | |
Composite Video (1 x RCA) | ||
Environmental | Operating Temperature | 0 to 50? (32 - 122°F) |
Storage Temperature | -10 to 80? (14 to 176°F) | |
Humidity | 5 to 90 % RH | |
Hardware | Active or Passive Adapter | Active |
AV Input | VGA | |
AV Output | S-Video | |
Composite | ||
Audio | No | |
Packaging Information | Package Height | 0.9 in [24 mm] |
Package Length | 4.1 in [10.5 cm] | |
Shipping (Package) Weight | 5.7 oz [162 g] | |
Package Width | 5.2 in [13.3 cm] | |
Performance | Supported Resolutions | Input - Up to 1920x1080 60Hz Output - 640x480 60Hz |
Physical Characteristics | Color | Black |
Product Height | 0.8 in [20 mm] | |
Product Length | 2.4 in [60.5 mm] | |
Weight of Product | 1.6 oz [46 g] | |
Product Width | 2.1 in [54 mm] | |
Power | Power Source | USB-Powered |
Plug Type | USB Mini-B (5 pin) | |
Power Consumption (In Watts) | 2.5W | |
What's in the Box | 1 - Included in Package | VGA to S-Video and Composite Adapter |
Mini USB Power Cable | ||
Quick-Start Guide |
SKU | VGA2VID2 |
Barcode # | 65030882590 |
Brand | STARTECH |
Shipping Weight | 0.1300kg |
