StarTech.com · HD2VID2

HDMI to RCA Composite Converter with Audio

Connect a modern HDMI source to an older composite television or projector with RCA video and stereo audio output for NTSC or PAL systems.

HDMI to compositeStereo RCA audioNTSC + PAL1080p input

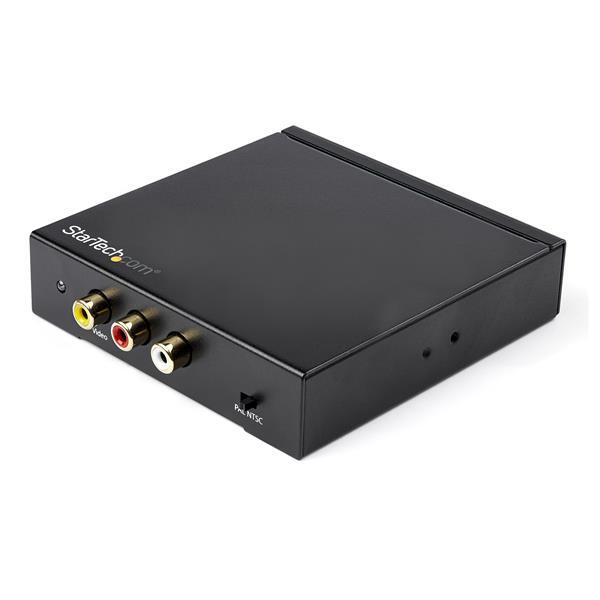

StarTech HD2VID2 HDMI to RCA Composite Converter with Audio

Built for dependable use

HDMI-to-composite conversion

Converts digital HDMI video and audio for displays with yellow, white and red RCA inputs.

NTSC and PAL support

Works with composite equipment based on either common television system.

Flexible HDMI input

Accepts compatible television and PC input resolutions up to 1080p.

Image processing

Includes noise reduction, frame-rate conversion and adaptive contrast enhancement.

What to know before you connect

The output is standard-definition composite video: 480i or 576p.
A high-resolution HDMI input is converted down to composite output.
The included AC adapter is required.
Choose NTSC or PAL to match the receiving display.

Australian version with official warranty

Supplied by DeviceDeal and covered by the official StarTech.com 2 years manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.

Frequently asked questions

What does the StarTech HD2VID2 do?

It converts digital HDMI video and audio to analogue composite RCA video and stereo RCA audio.

What connections does the HD2VID2 provide?

It has one HDMI female input, one composite-video RCA output and two RCA stereo-audio outputs.

What is the maximum verified performance?

It accepts HDMI inputs up to 1080p and outputs standard-definition composite video at 480i or 576p.

How is the HD2VID2 powered?

It uses the included 5V universal AC power adapter with ANZ plug support.

What compatibility should I check?

It supports compatible HDMI sources and NTSC or PAL composite televisions, monitors and projectors.

Does the converter output HD video through RCA?

No. It can accept HD input, but composite video output is standard definition at 480i or 576p.

What is included in the package?

The package includes the converter, universal ANZ-compatible power adapter, user manual, two mounting brackets and four screws.

What warranty applies in Australia?

The Australian-version HD2VID2 supplied by DeviceDeal is covered by a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(HD2VID2)

Features and highlights

HDMI-to-composite conversion

Converts digital HDMI video and audio for displays with yellow, white and red RCA inputs.

NTSC and PAL support

Works with composite equipment based on either common television system.

Flexible HDMI input

Accepts compatible television and PC input resolutions up to 1080p.

Image processing

Includes noise reduction, frame-rate conversion and adaptive contrast enhancement.

Mountable powered enclosure

Includes an ANZ-compatible universal adapter plus brackets and screws.

Key highlights

HDMI female input
Composite RCA video output
Stereo RCA audio output
Steel enclosure

Official StarTech.com 2 years manufacturer warranty in Australia.

Technical specifications

StarTech HD2VID2 · HDMI to RCA Composite Converter with Audio

Warranty Information

Warranty

2 Years

Hardware

Adapter Type

Active

AV Input

HDMI

AV Output

Composite video

Audio Output

Stereo RCA

Material

Steel

Performance

Maximum Input

1080p at 60Hz

Composite Output

480i or 576p

Audio

LPCM 2-channel input; stereo L/R output

Television Systems

NTSC and PAL

Connectors

Input

1 × HDMI female

Video Output

1 × composite RCA female

Audio Output

2 × RCA female

Power

Power Source

AC adapter included

Input

100240V AC

Output

5V DC, 1000mA

Plug Type

Physical Characteristics

Colour

Black

Dimensions

108 × 100 × 25mm

Weight

286g

Package Contents

Included

HDMI-to-composite converter

Included

Universal power adapter for NA/JP, EU, UK and ANZ

Included

User manual

Included

2 × mounting brackets and 4 × screws

SKU	HD2VID2
Barcode #	65030880824
Brand	STARTECH
Shipping Weight	0.5400kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.210m
Shipping Cubic	0.001050000m3

Australian warranty confidence

2 Years manufacturer warranty

This is the Australian version of StarTech HD2VID2 supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
