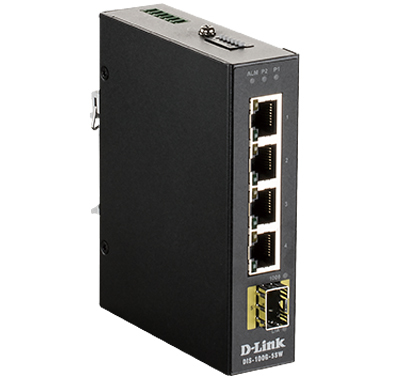

5-Port Gigabit Industrial Switch with 4 1000BASE-T ports and 1 SFP port


The DIS-100G Series Gigabit Industrial Unmanaged Switches are equipped with a variety of port combinations including 10/100/1000BASE-T non-PoE or PoE ports, and SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the DIS-100G Series are Plug-and-Play, allowing for effortless and swift deployment.






Unmanaged Plug and Play

Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames.



Gigabit Connectivity with RJ45 and SFP

Designed with 4 x Gigabit ports and 1 x SFP slot to suit a range of network layouts.



Discrete Size

Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.



Fast Deployment

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.



Officially Certified

Certifications for vibration, shock, free-fall, and electromagnetic compatibility.



Withstands Extreme Temperatures

Operates in harsh environments with temperatures from -40°C to +75°C.



Strong Build

The tough housing has been created to keep your network protected and reliably rugged.



Fanless Design

With no moving parts inside to reduce downtime and maintenance call outs.




Durable, Reliable, and Efficient


The DIS-100G Series switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-100G Series from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-100G Series while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-100G Series can also be mounted on a DIN rail or conveniently mounted on a solid surface wall. In addition, the DIS-100G Series supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.






  • 4 1000BASE-T ports and 1 SFP port
  • Robust and High-Redundancy Design
  • Officially Certified for industrial environments
  • DIN Rail mountable
  • Fanless, passive cooling design
  • Dual power input for redundancy
  • High EMC endurance
  • 9 KB Jumbo Frame
  • Multicast/Unicast/Storm Control
1000BASE-T Ports : 4
SFP Ports : 1
PoE Type Required : None
Switching Capacity : 10 Gbps
MAC Address Table Size : 2K
Metal Housing : Yes
DIN Rail Mountable : Yes
Power Input : 12 to 58V DC terminal block dual input
Fans : Fanless
Operating Temperature : From -40° to 75°C
Management Options : Unmanaged


Barcode # 974571607480
Brand D-Link
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.170m
Shipping Cubic 0.000850000m3

Manufacturer Warranty
12 Months Limited Warranty
