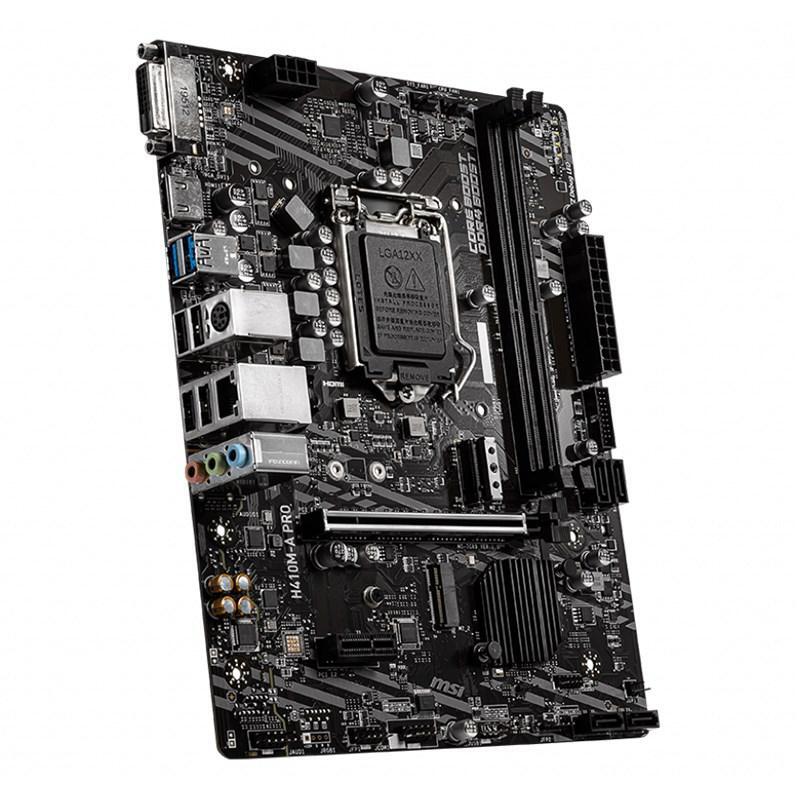

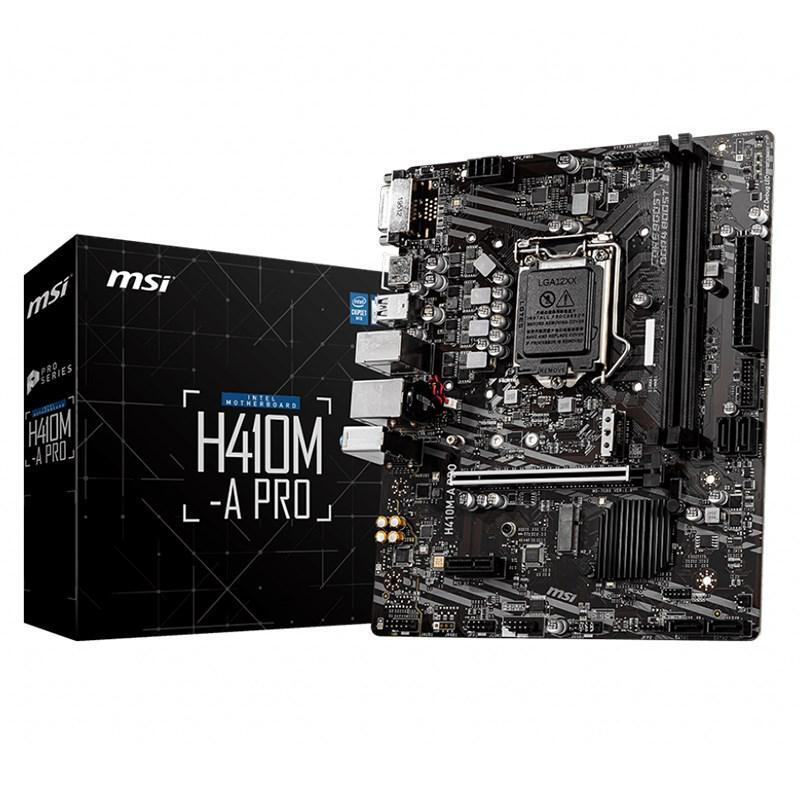

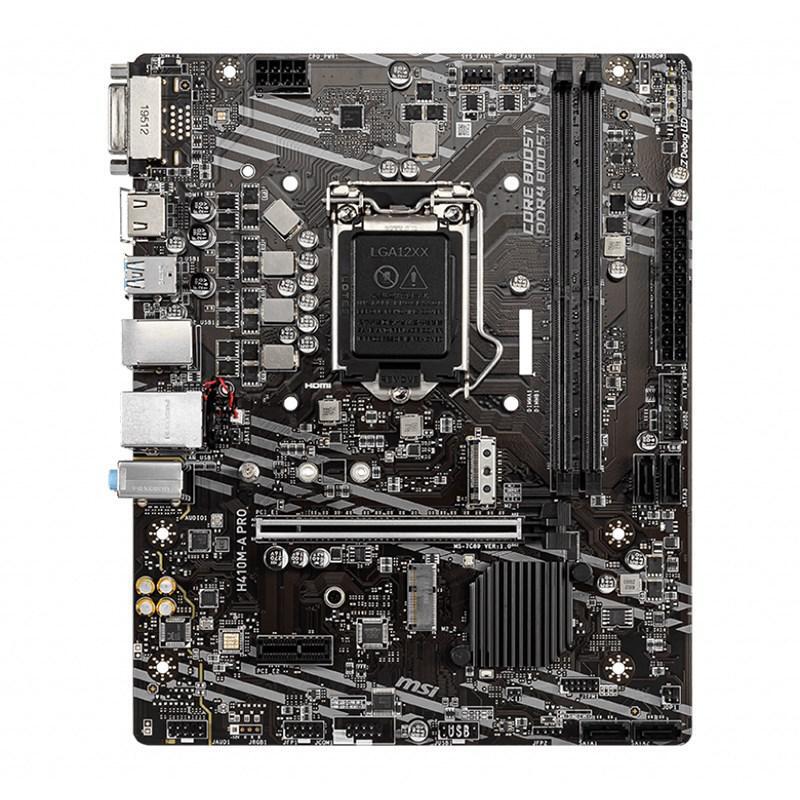

MSI H410M-A PRO LGA 1200 Micro-ATX Motherboard
Model # H410M-A PRO
-
SKU: H410M-A-PRO
- Pick Up Available
- Australian Warranty
- Checkout Securely
- MSI H410M-A PRO LGA 1200 Micro-ATX Motherboard
- Memory Support: 2x DDR4 DIMM Slots (Max 2933 MHz, 64GB)
- Graphics Interface: 1x PCIe 3.0 x16
- Expansion Slots: 1x PCIe 3.0 x1 & 1x M.2 E-Key (Supports WiFi Module)
- Storage Support: 1x Turbo M.2 Slot & 4x SATA 6Gb/s Connectors
- Total USB Ports: 4x USB 3.2 Gen 1 & 6x USB 2.0
- Network: Intel® I219V Gigabit LAN
- 8-Channel(7.1) HD Audio with Audio Boost
- H410M-A PRO
- 3 Years Limited Warranty
(H410M-A-PRO)
Audio
| Audio Channels | 7.1 |
I/O Controller
| Controller Type | Serial ATA/600 |
Network & Communication
| Gigabit Ethernet | Yes |
Video
| Onboard Video | CPU Dependent Video |
Physical Characteristics
| Form Factor | Micro ATX |
| Width | 236.2 mm |
| Depth | 190.5 mm |
I/O Expansions
| Number of PCI Express x1 Slots | 1 |
| Number of Total Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 2 |
Onboard Interfaces
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of M.2 Interfaces | 1 |
| Number of Onboard USB 3.2 Ports | 2 |
General Information
| Product Type | Desktop Motherboard |
| Manufacturer Website Address | http://au.msi.com |
| Manufacturer | MSI |
| Product Model | H410M-A PRO |
| Product Name | H410M-A PRO Desktop Motherboard |
| Product Series | PRO |
| Brand Name | MSI |
Interfaces/Ports
| HDMI | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Ports | 2 |
Memory
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 2933 MHz |
| 2666 MHz |
Processor & Chipset
| Processor Supported | Core i9 |
| Celeron | |
| Core i5 | |
| Pentium Gold | |
| Core i3 | |
| Core i7 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Chipset Manufacturer | Intel |
| Chipset Model | H410 |
| SKU | H410M-A-PRO |
| Barcode # | 824142218167 |
| Brand | MSI |
| Shipping Weight | 0.7000kg |
