View PDF BrochureEpson TM-U220IIB-302 Dot Matrix Impact Kitchen Receipt Printer Serial Auto Cutter (C31CL27302)
Model # TM-U220IIB-302
-
SKU: C31CL27302
- Pick Up Available
- Australian Warranty
- Checkout Securely
Two-colour kitchen receipt printing with serial connectivity

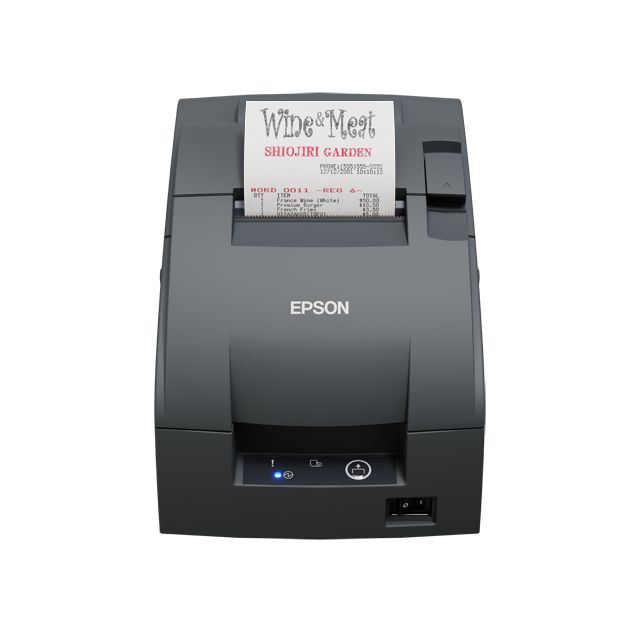

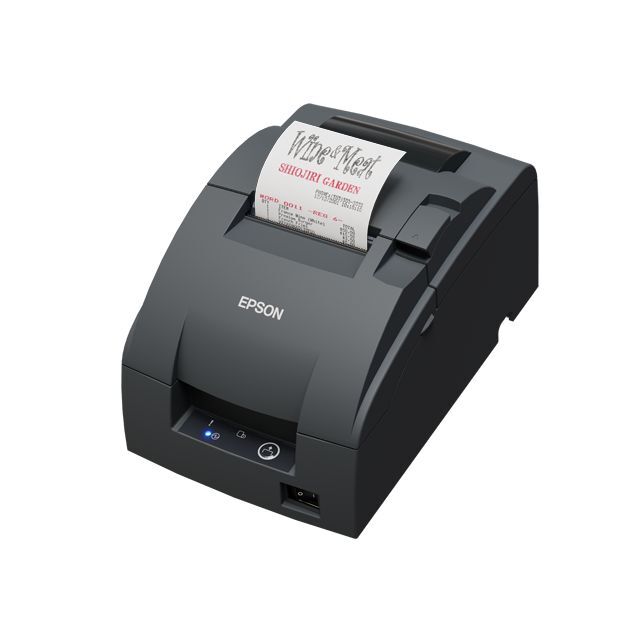

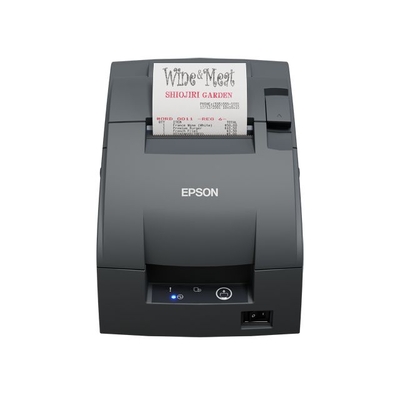

The Epson TM-U220IIB-302 is a 9-pin impact dot matrix kitchen and receipt printer with serial connectivity, black-and-red output and a partial-cut auto cutter.
Impact output for kitchen environments
Impact-printed receipt paper is listed to remain legible around heat and moisture. Two-colour black and red printing can highlight order exceptions.
POS and web-print support
The printer supports listed mPOS and PC-POS systems, including web-browser orders through Epson ePOS-Print technology.
Flexible installation and alerts
Wall-mount installation is supported with right-side-up printing. Compatibility with an optional Epson buzzer is listed for incoming-order alerts.
Technical specifications
| Product details | |
|---|---|
| Brand | Epson |
| Model | TM-U220IIB-302 |
| SKU | C31CL27302 |
| Product type | Kitchen and receipt impact dot matrix printer |
| Colour | Dark grey |
| Print and media | |
| Print technology | 9-pin impact dot matrix |
| Maximum print speed | 6 lines per second |
| Print colour | Black and red |
| Column capacity | 40 |
| Maximum copies | 2 |
| Ribbon life | 4,000,000 characters |
| Media thickness | 0.09mm |
| Media type | Receipt paper |
| Connectivity and operation | |
| Connection | Serial |
| Cutter | Partial-cut automatic cutter |
| Installation | Desktop or wall mount |
| Optional alert | Epson buzzer compatibility |
| Input voltage | 24V DC |
| Maximum power consumption | 24.7W |
| Physical details | |
| Dimensions | 160 x 248 x 138.5mm |
| Weight | 2.5kg |
Frequently asked questions
Which connection is supplied on the TM-U220IIB-302?
The 302 configuration is listed with a serial connection.
Can it print in two colours?
Yes. Black and red output is listed.
Is the AC cable included?
The source states both that an AC cable is required and that an AC adapter and cable are included, so this update does not state either claim.
(C31CL27302)
- Power-Saving Mode
- RoHS compliant
- End-of-life options available
- Brochure
- Manual
| Interfaces/Ports | |
|---|---|
| Serial Port | Yes |
| Software | |
| Operating System Supported | ePOS SDK (Android®, iOS®), OPOS ADK (Windows), JavaPOS ADK (Windows, Linux®), OPOS ADK for .NET (Windows) |
| Media Types & Handling | |
| Media Thickness | 0.09 mm |
| Media Type | Receipt Paper |
| Power Description | |
| Input Voltage | 24 V DC |
| Maximum Power Consumption | 24.70 W |
| Technical Information | |
| Number of Columns | 40 |
| Number of Pins | 9-pin |
| Connectivity Technology | Wired |
| Print Technology | Impact Dot Matrix |
| Print Color Capability | Colour |
| Maximum Number of Copies | 2 |
| Character Sets | 16 international sets |
| Ribbon Life | 4000000 characters |
| Miscellaneous | |
| Package Contents | Kitchen and Receipt Impact Printer roll paper (Starter Roll for Testing) User Manual ERC-38BR Ribbon CassetteAC adapter and AC cord |
| Platform Supported | PC |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 2.50 kg |
| Height | 138.5 mm |
| Width | 160 mm |
| Depth | 248 mm |
| Product Color | Dark Grey |
| Color Family | Grey |
| General Information | |
| Product Type | Dot Matrix Printer |
| Manufacturer Part Number | C31CL27302 |
| Manufacturer Website Address | http://www.epson.com.au |
| Manufacturer | Epson Corporation |
| Product Model | TM-U220IIB-302 |
| Product Name | Kitchen and Receipt Impact Printer |
| Product Series | TM-U220 |
| Brand Name | Epson |
| SKU | C31CL27302 |
| Brand | EPSON |
| Shipping Weight | 3.8300kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.220m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.026400000m3 |
Manufacturer Warranty : Two year Return to Base (RTB)
