View PDF Brochure
Twelve SATA plus two NVMe bays
The system combines front SATA storage with two rear E1.S/M.2 NVMe slots.
QNAP TS-h1465U-RP-8G 12-Bay, Intel quad-core CPU,8 GB DDR5, 300W RP 2U rackmount Enterprise NAS
Model# TS-h1465U-RP-8G
-
SKU: TS-h1465U-RP-8G
Don't pay: $9,479.00
$3,899.00
SAVE $5,580.00 (59%)
You Might Want To Add
- Pick Up Available
- Australian Warranty
- Checkout Securely
14-bay 2U rackmount QuTS hero NAS

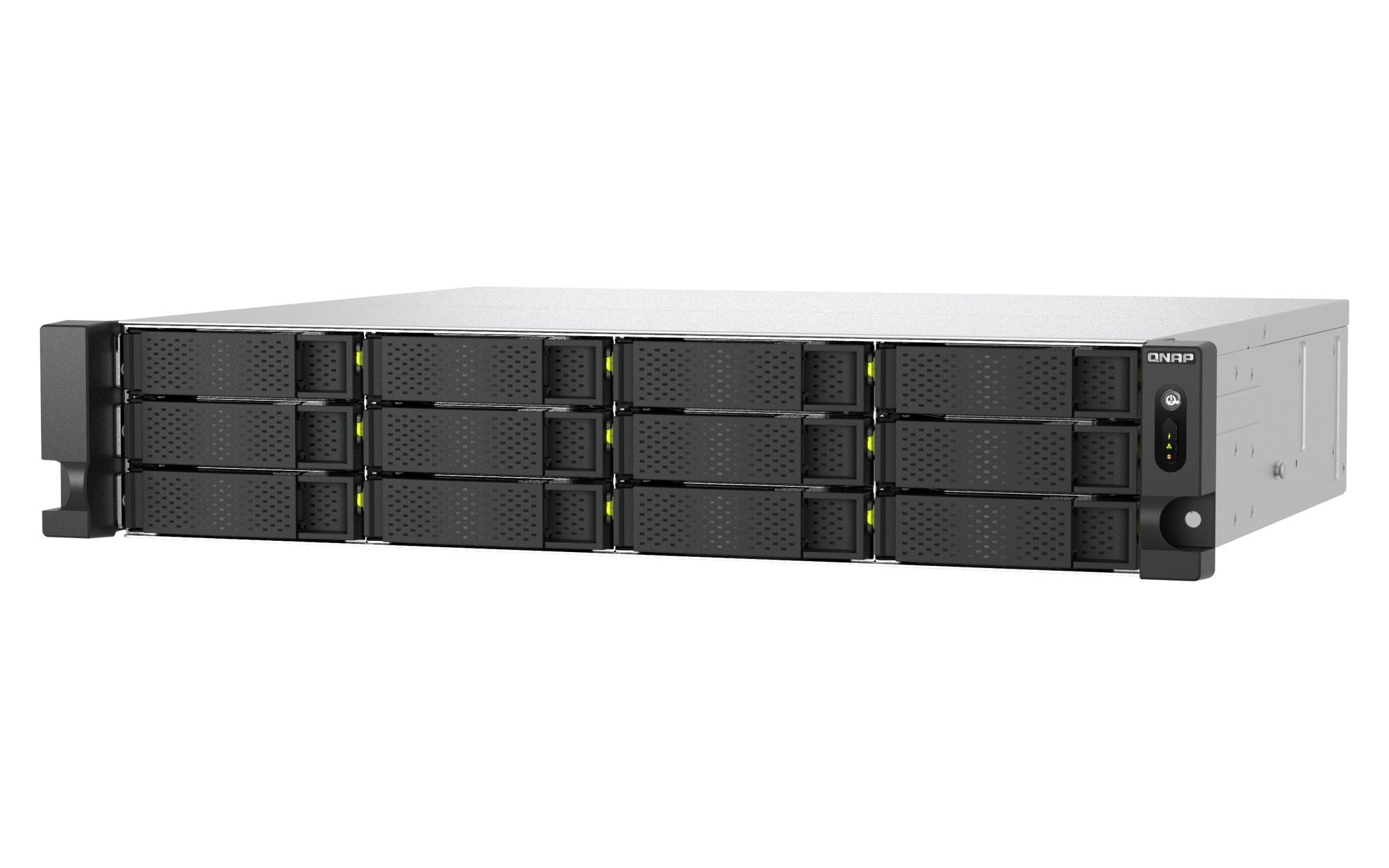

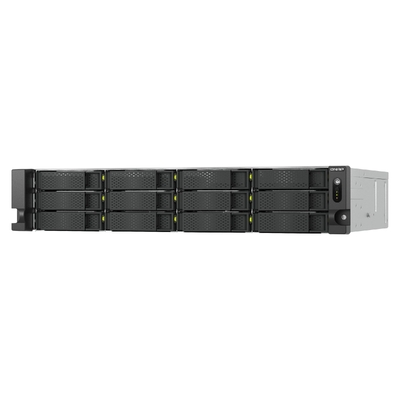

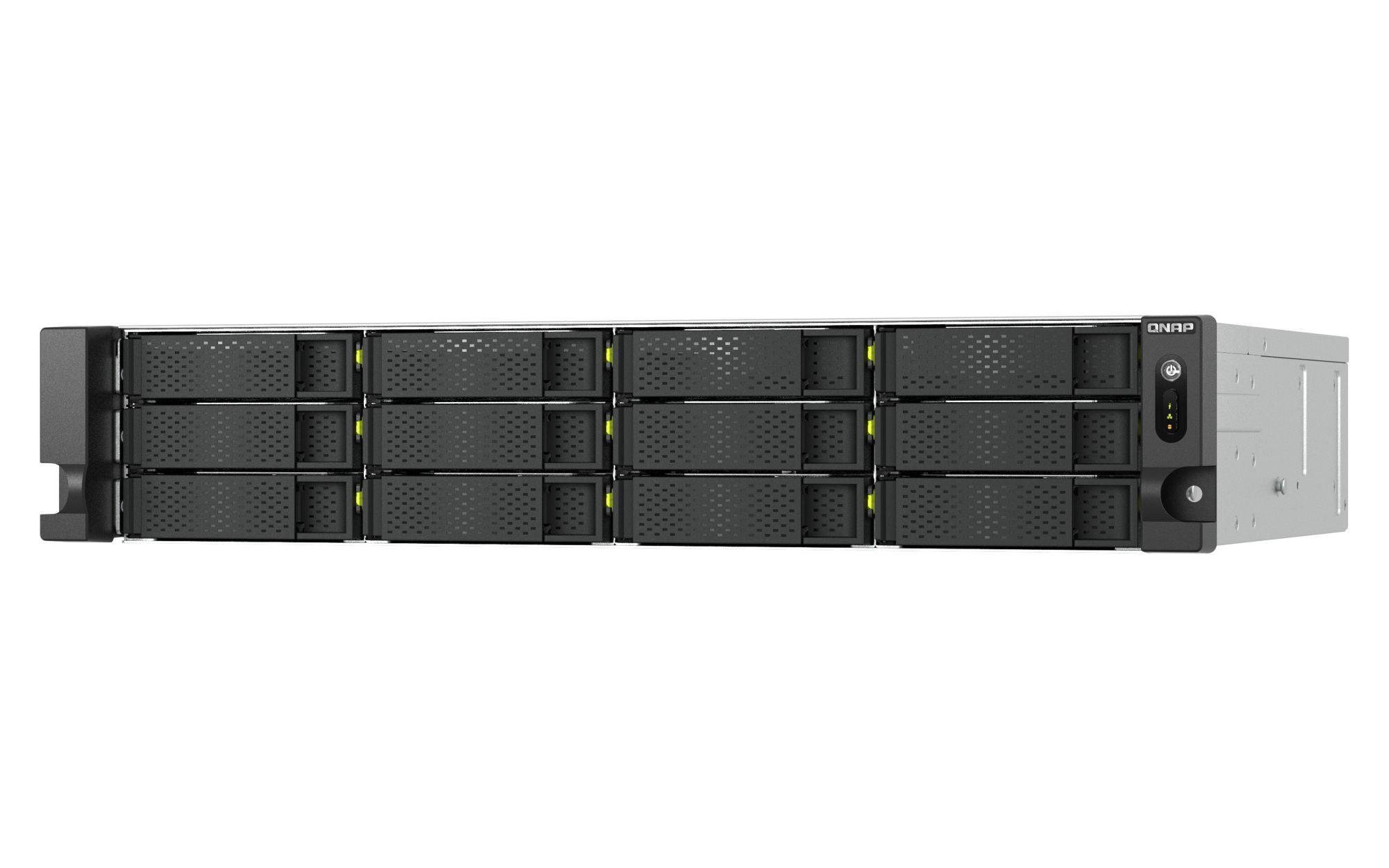

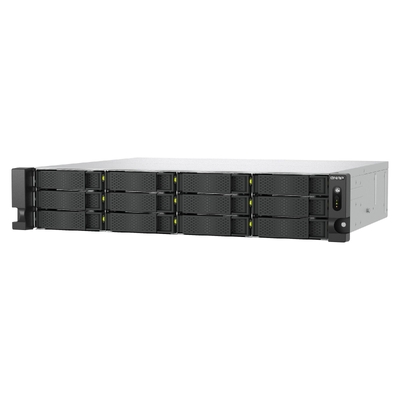

QNAP TS-h1465U-RP-8G 14-Bay 2U Rackmount NAS
The QNAP TS-h1465U-RP-8G combines twelve front SATA bays and two rear E1.S/M.2 NVMe slots with an Intel quad-core processor, 8GB DDR5 memory, dual 2.5GbE, PCIe Gen 3 expansion and dual 300W power supplies.
12 + 2 drive bays8GB DDR5Dual 2.5GbE3-year warranty
What is the QNAP TS-h1465U-RP-8G?
It is a 2U multitasking NAS for small and medium-sized businesses, combining high-capacity SATA storage, rear NVMe slots, multi-gigabit networking, QuTS hero and redundant power.
12 + 2 BaysSATA plus E1.S/M.2 NVMe
4-CoreIntel 64-bit x86 CPU
8GB DDR5Upgradeable to 16GB
2 × 2.5GbEWOL and Jumbo Frame
Need help choosing a NAS?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage considerations and practical features before selecting your next network storage system.
Twelve SATA bays plus two rear NVMe slots

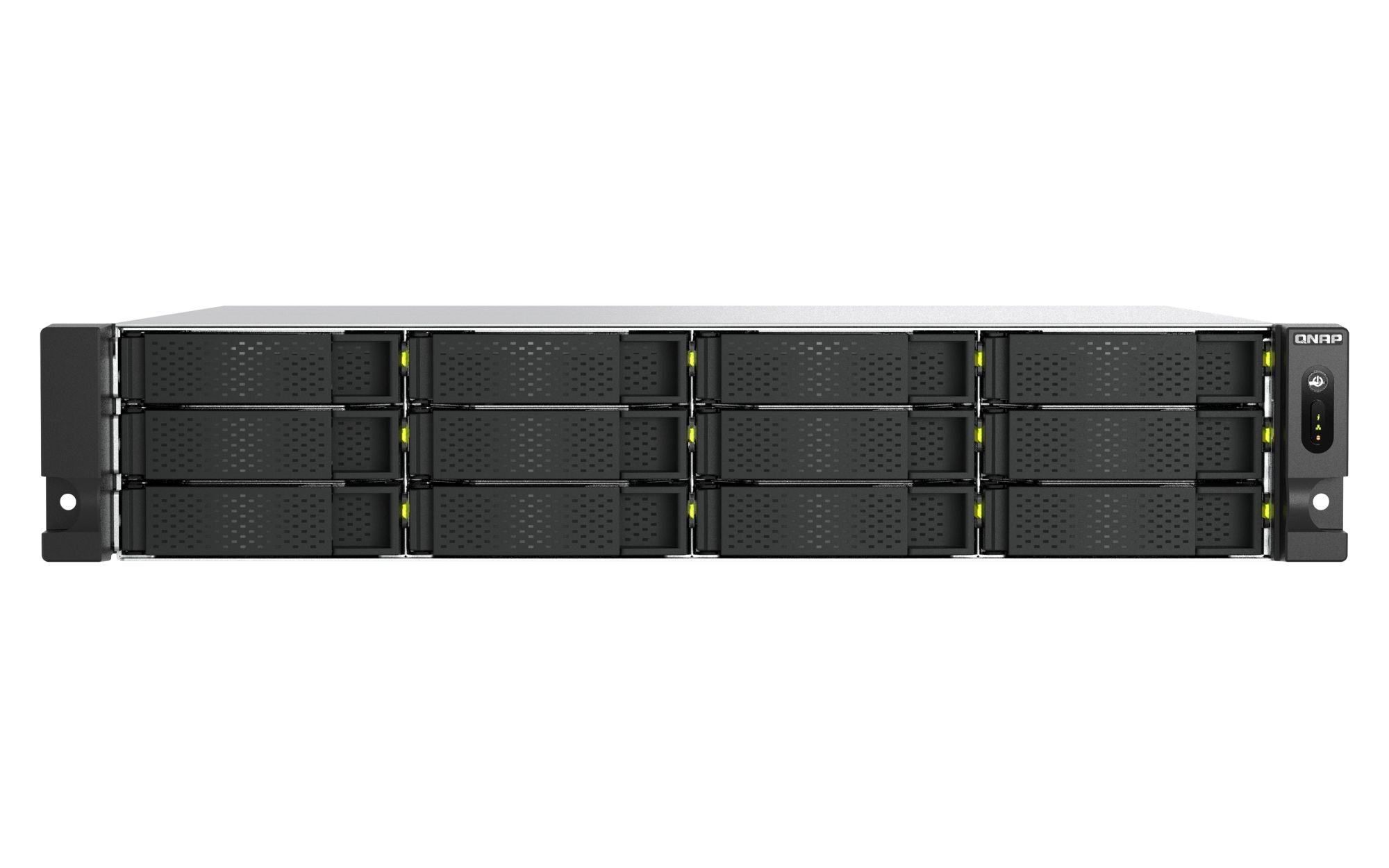

Twelve front 3.5-inch bays support 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.

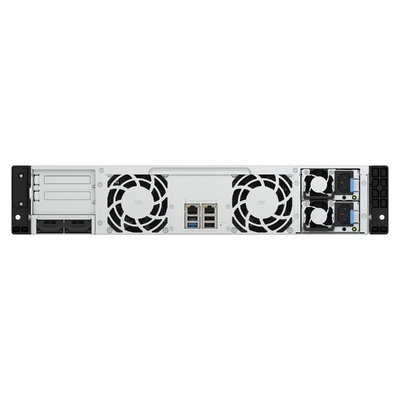

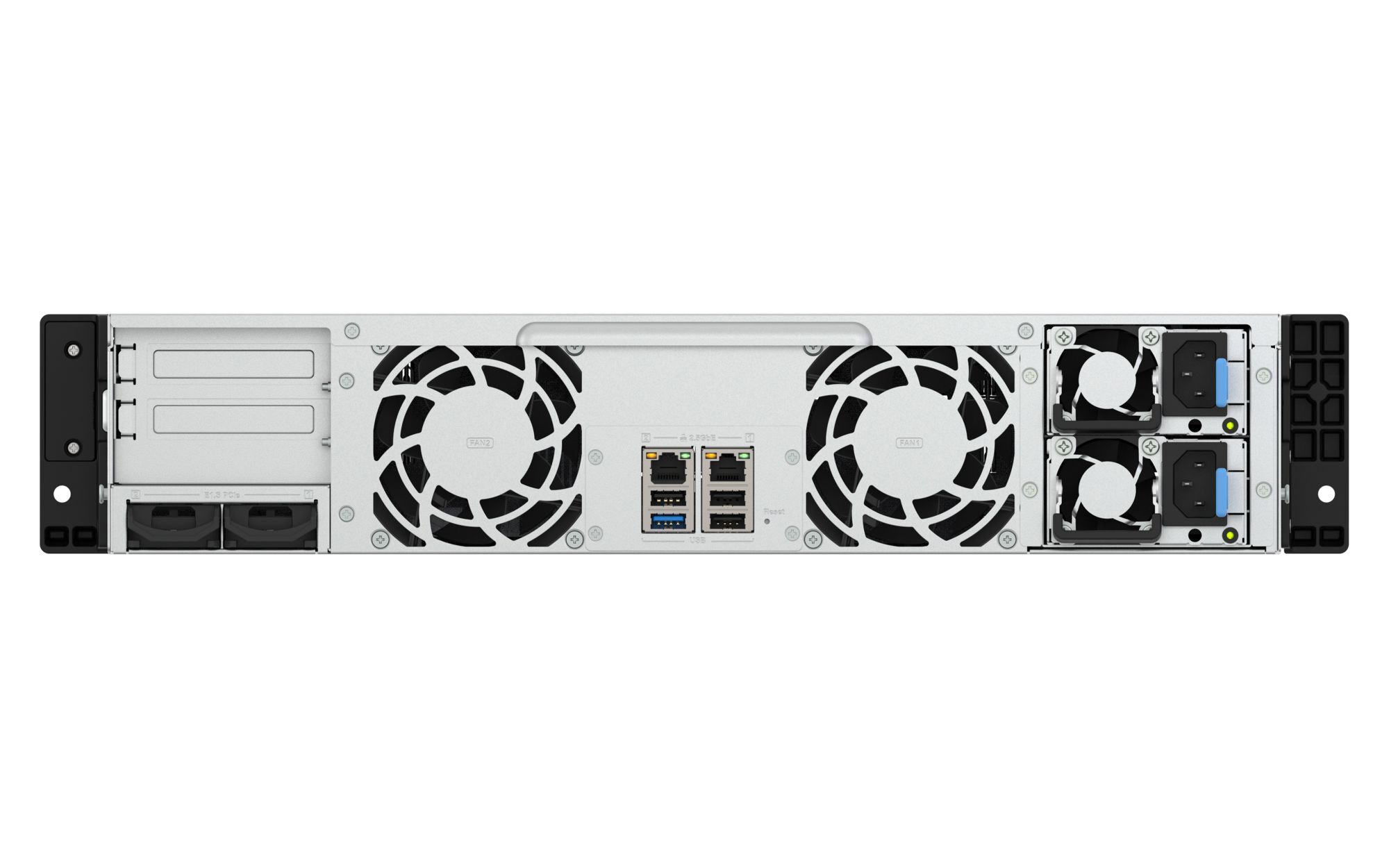

Two rear E1.S/M.2 NVMe Gen 3 x1 slots support E1.S NVMe SSDs and M.2 NVMe SSDs when used with the optional QDA-E1SM2 adapter.
- The drive bays are listed as hot-swappable.
- SSD cache acceleration is supported.
- The source does not identify whether drives are included.
Intel quad-core processing and DDR5 memory
The processor is identified only as an Intel four-core 64-bit x86 model, so no unsupported CPU model is added.
This configuration includes 8GB SODIMM DDR5 memory and supports up to 16GB through one SODIMM slot.
- AES-NI hardware encryption support is listed.
- Hardware-accelerated transcoding is supported.
- The supplied description identifies In-Band ECC support for the installed DDR5 memory.
Dual 2.5GbE and PCIe Gen 3 expansion
Two 2.5GbE ports support 2.5G, 1G, 100M and 10M speeds. The supplied description also identifies Port Trunking or SMB Multichannel use.
One PCIe Gen 3 x2 slot supports compatible 5GbE or 10GbE networking and QM2 expansion.
- Wake on LAN and Jumbo Frame support are listed.
- Three USB 2.0 ports are included.
- One Type-A USB 3.2 Gen 2 10Gbps port is included.
QuTS hero, redundant power and long-term supply
The supplied product information identifies QuTS hero as the preinstalled ZFS-based operating system, with data-integrity and immutability capabilities.
Two 300W power supply units provide redundant power for the 2U rackmount chassis.
- QNAP states that the platform will remain available and supported up to 2031.
- The supplied award reference applies to QuTS hero rather than the exact NAS.
- The source lists up to 1,500 concurrent CIFS connections with maximum memory installed.
Important purchasing and deployment notes
- The storage layout consists of twelve front SATA bays plus two rear E1.S/M.2 NVMe slots.
- Drive inclusion is not specified; confirm the exact configuration before ordering.
- M.2 NVMe support through the rear slots requires the optional QDA-E1SM2 adapter.
- The supplied row does not provide chassis dimensions, weights or power-consumption figures.
Frequently asked questions
What is the QNAP TS-h1465U-RP-8G?
It is a 2U rackmount QuTS hero NAS with twelve SATA bays, two rear E1.S/M.2 NVMe slots, 8GB DDR5, dual 2.5GbE and redundant power.
How many drive bays does it have?
The detailed source lists twelve front 3.5-inch SATA bays plus two rear E1.S/M.2 NVMe Gen 3 x1 slots.
Which drives are supported?
The front bays support 3.5-inch SATA hard drives and 2.5-inch SATA SSDs. The rear slots support E1.S NVMe SSDs and M.2 NVMe SSDs with the optional QDA-E1SM2 adapter.
Does the supplied source confirm that drives are included?
No. The supplied row does not identify whether drives are included, so the exact configuration should be confirmed before purchase.
Which processor is installed?
The supplied information identifies an Intel four-core 64-bit x86 processor but does not provide a model number.
How much memory is installed and supported?
It includes 8GB SODIMM DDR5 memory and supports up to 16GB through one SODIMM slot.
Which network ports are included?
It provides two 2.5GbE ports supporting 2.5G, 1G, 100M and 10M speeds.
Can faster networking be added?
The supplied specifications list optional 5GbE through a network adapter and optional 10GbE through a network adapter or PCIe expansion card.
Does it support PCIe expansion?
Yes. It includes one PCIe Gen 3 x2 slot.
Does it have redundant power supplies?
Yes. It includes two 300W power supply units.
Which operating system is identified?
The supplied product information identifies the ZFS-based QuTS hero operating system as preinstalled.
What manufacturer warranty applies?
The supplied specifications list a three-year QNAP manufacturer warranty.
(TS-h1465U-RP-8G)
Features and highlights
Key capabilities below are organised from the supplied product information for TS-h1465U-RP-8G.
Intel quad-core processor
The supplied processor is identified as a four-core 64-bit x86 model.
8GB DDR5 memory
The installed SODIMM can be upgraded to a supplied maximum of 16GB.
Dual 2.5GbE
Two multi-gigabit ports support Wake on LAN and Jumbo Frame.
PCIe Gen 3 expansion
One x2 slot supports compatible networking or QM2 expansion.
Redundant 300W power
Two power supply units support continuous-service deployments.
Important: Drive inclusion is not specified. M.2 support requires the optional QDA-E1SM2 adapter, and compatible drives, memory and expansion hardware should be confirmed.
TS-h1465U-RP-8G specifications
Specifications below are organised from the supplied QNAP product information for TS-h1465U-RP-8G.
Processor and Memory
| CPU | Intel 4-core processor |
|---|---|
| CPU Architecture | 64-bit x86 |
| Encryption Engine | Yes (AES-NI) |
| Hardware-Accelerated Transcoding | Yes |
| System Memory | 8GB SODIMM DDR5 |
| Maximum Memory | 16GB (1 x 16GB) |
| Memory Slot | 1 x SODIMM DDR5 |
Storage
| Drive Bays | Front: 12 x 3.5-inch Rear: 2 x E1.S/M.2 NVMe Gen 3 x1 slots |
|---|---|
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives E1.S/M.2 slots: E1.S NVMe SSD M.2 NVMe SSD With the QDA-E1SM2 adapter, available as an optional purchase, the slots support M.2 NVMe SSDs. |
| Hot-Swappable | Yes |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | Yes |
Networking
| 2.5 Gigabit Ethernet | 2 x ports (2.5G/1G/100M/10M) |
|---|---|
| 5 Gigabit Ethernet | Optional via network adapter |
| 10 Gigabit Ethernet | Optional via network adapter or PCIe expansion card |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
Expansion and Connectivity
| PCIe Slot | 1 x PCIe Gen 3 x2 Slot 1: PCIe Gen 3 x2 |
|---|---|
| USB 2.0 Ports | 3 |
| USB 3.2 Gen 2 Port | 1 x Type-A USB 3.2 Gen 2 (10Gbps) |
Physical Specifications
| Form Factor | 2U rackmount |
|---|---|
| LED Indicators | HDD 1-12, E1.S/M.2 1-2, Status, LAN, Expansion, Power |
| Buttons | Power, Reset |
Power and Environmental
| Operating Temperature | 0-40 degC (32 degF-104 degF) |
|---|---|
| Storage Temperature | -20-70 degC (-4 degF-158 degF) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27 degC (80.6 degF) |
| Power Supply Unit | 300W (x2), 100-240V |
| System Warning | Buzzer |
Warranty and Connections
| Standard Warranty | 3 years |
|---|---|
| Maximum Concurrent CIFS Connections | 1,500 with maximum memory installed |
| SKU | TS-h1465U-RP-8G |
| Brand | QNAP |
| Shipping Weight | 15.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.370m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.037000000m3 |
3 YearsQNAP manufacturer warranty
3-year QNAP manufacturer warranty
The supplied specifications list a 3-year standard manufacturer warranty for the QNAP TS-h1465U-RP-8G.
Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
