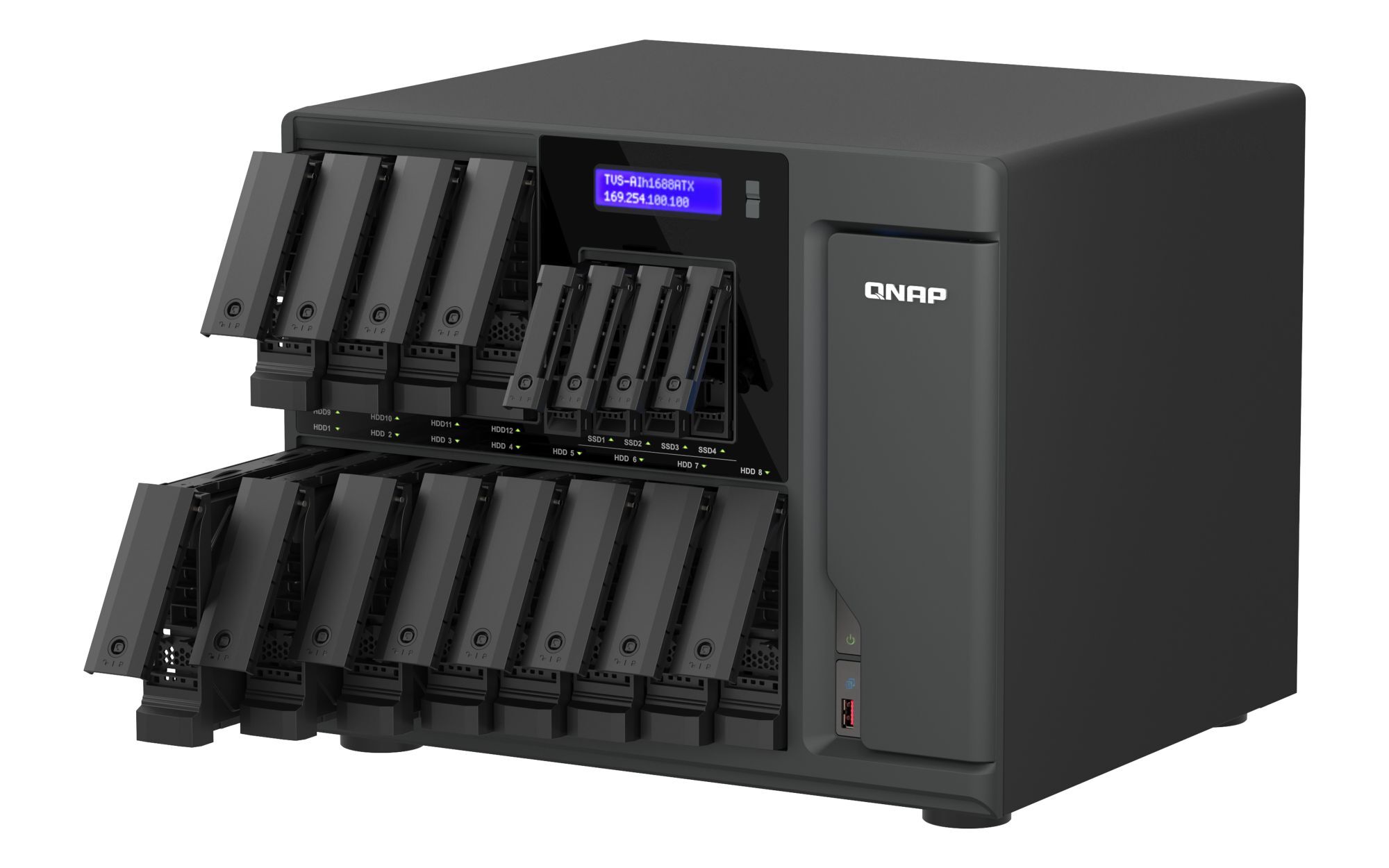

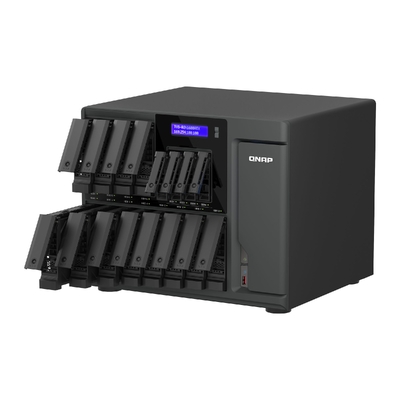

QNAP TVS-AIh1688ATX-U7-32G 16-bay, Up to 36 TOPS empower AI NAS
Model# TVS-AIh1688ATX-U7-32G
-
SKU: TVS-AIh1688ATX-U7-32G
- Pick Up Available
- Australian Warranty
- Checkout Securely
16-bay QuTS hero AI and virtualisation NAS
QNAP TVS-AIh1688ATX-U7-32G 16-Bay AI 10GbE NAS
The QNAP TVS-AIh1688ATX-U7-32G combines an Intel® Core Ultra 7 processor, integrated NPU, 32GB ECC DDR5, twelve SATA bays, four U.2 NVMe/SATA SSD slots, dual 2.5GbE, dual 10GBASE-T and three PCIe Gen 4 slots.
Up to 36 TOPS16 bays32GB ECC DDR5Dual 10GBASE-TQNAP manufacturer warranty
What is the QNAP TVS-AIh1688ATX-U7-32G?
It is a 16-bay hybrid-storage QuTS hero NAS designed for AI image applications, enterprise storage and virtualisation. The supplied configuration combines CPU, graphics and NPU resources for up to 36 TOPS.
Feature group 1
Core Ultra processing for AI and multitasking
CPU, graphics and neural processing resources support intelligent image and storage workloads.
Intel® Core Ultra 7
The supplied processor has 20 cores, comprising eight performance cores and twelve efficiency cores, 20 threads and speeds up to 5.3GHz.
Integrated NPU
The neural processing unit can offload AI inference tasks from the CPU.
Up to 36 TOPS
The supplied content states combined CPU, graphics and NPU performance of up to 36 TOPS.
Feature group 2
AI image recognition and analytics
The supplied product information includes performance and concurrency figures for QNAP AI applications.
QuMagie
The supplied claim states that image recognition is 77% faster for large photo collections.
QVR Face Insight
The source states facial recognition can complete in 0.2 seconds with support for 20 cameras for real-time attendance analytics.
QVR Human
The supplied content lists real-time people-counting analytics across up to 24 cameras concurrently.
Need help choosing a NAS?
Read NAS Buying Guide
Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage planning considerations and practical buying factors before selecting a system.
Feature group 3
Hybrid SATA and U.2 NVMe storage
Twelve SATA bays and four flexible SSD slots balance capacity and low-latency performance.
Twelve SATA bays
The 3.5-inch bays support compatible 3.5-inch SATA HDDs, 2.5-inch SATA HDDs and 2.5-inch SATA SSDs.
Four U.2/SATA SSD slots
The 2.5-inch slots support U.2 NVMe PCIe Gen 4 x2 SSDs or SATA SSDs.
Flexible SSD use
The SSD slots can be used for cache acceleration, an SSD storage pool or a QuTS hero system drive.
Feature group 4
Networking, connectivity and expansion
Built-in high-speed interfaces and three PCIe Gen 4 slots support demanding enterprise workflows.
Built-in networking
Two 2.5GbE and two 10GBASE-T ports support Port Trunking and network redundancy.
USB and display
Two USB 4 Type-C ports, five USB 3.2 Gen 2 ports and HDMI 2.1 output up to 4096 × 2160 at 60Hz are included.
Optional Thunderbolt 5
The QXP-T52P two-port adapter is sold separately. Third-party Thunderbolt external storage devices are not supported.
Frequently asked questions
What is the QNAP TVS-AIh1688ATX-U7-32G?
It is a 16-bay QuTS hero AI and virtualisation NAS with an Intel® Core Ultra 7 processor, integrated NPU, 32GB ECC DDR5 and built-in 10GbE.
Which processor is installed?
It uses an Intel® Core Ultra 7 processor with 20 cores, 20 threads and speeds up to 5.3GHz.
What does the up to 36 TOPS figure represent?
The supplied product information states that combined CPU, graphics and NPU resources provide up to 36 TOPS for AI workloads.
How much memory is included and supported?
It includes 32GB ECC UDIMM DDR5 memory and supports up to 192GB across four slots.

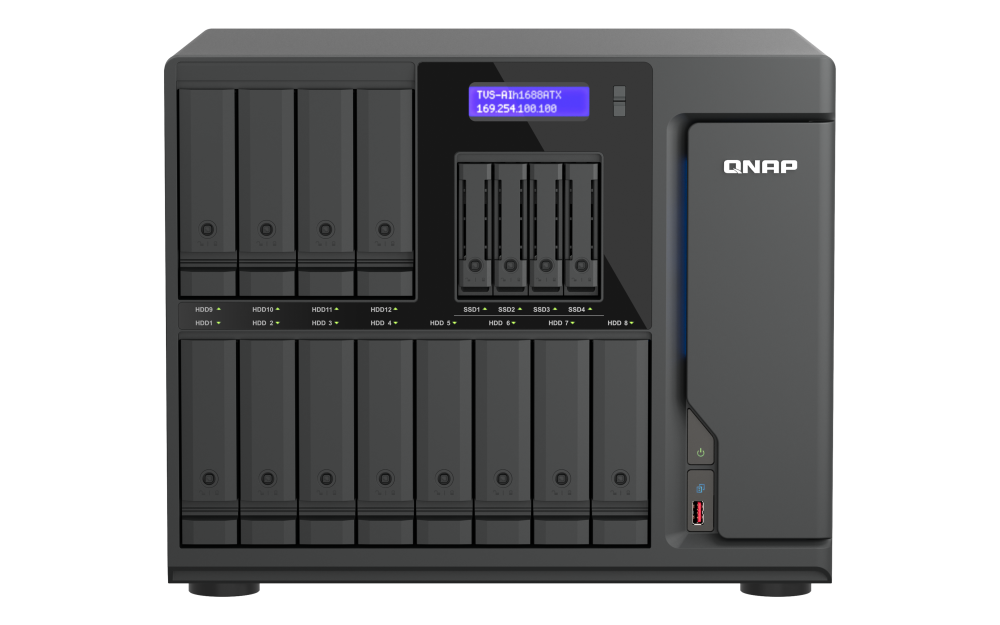

How are the 16 drive bays configured?
It has twelve 3.5-inch SATA bays and four 2.5-inch U.2 NVMe Gen 4 x2 or SATA SSD slots.
Which drive types are supported?
The SATA bays support compatible 3.5-inch SATA HDDs, 2.5-inch SATA HDDs and 2.5-inch SATA SSDs. The four SSD slots support U.2 NVMe or SATA SSDs.
What network ports are built in?
It includes two 2.5GbE ports and two 10GBASE-T ports.
Does it support Thunderbolt 5?
Yes, through the optional QXP-T52P two-port Thunderbolt 5 PCIe adapter, which is sold separately.
What are the Thunderbolt limitations?
The optional adapter supports Thunderbolt connections for Windows and Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported.
Which USB and HDMI connections are included?
It includes two USB 4 Type-C ports, three USB 3.2 Gen 2 Type-A ports, two USB 3.2 Gen 2 Type-C ports and HDMI 2.1 up to 4096 × 2160 at 60Hz.
Which AI application figures are supplied?
The source lists 77% faster QuMagie recognition, 0.2-second QVR Face Insight recognition with 20 cameras, and QVR Human analytics across up to 24 cameras. Test conditions are not supplied and results may vary.
What warranty applies to the TVS-AIh1688ATX-U7-32G?
The supplied specifications list a five-year QNAP manufacturer warranty. Coverage is subject to QNAPs applicable warranty terms.
(TVS-AIh1688ATX-U7-32G)
Features and highlights
Key product details organised from the supplied QNAP information for TVS-AIh1688ATX-U7-32G.
Up to 36 TOPS
The supplied configuration combines CPU, graphics and NPU resources for AI workloads.
Core Ultra 7 processor
Twenty cores, twenty threads and speeds up to 5.3GHz are listed.
32GB ECC DDR5
Installed memory supports expansion up to 192GB.
16-bay hybrid storage
Twelve SATA bays are paired with four U.2 NVMe/SATA SSD slots.
Built-in 10GbE and 2.5GbE
Two ports of each type are included.
Three PCIe Gen 4 slots
Expansion options include high-speed networking, storage cards, QM2 and optional Thunderbolt 5.
Purchase check: The optional QXP-T52P Thunderbolt 5 adapter is sold separately. It supports Thunderbolt connections for Windows and Mac hosts and USB storage devices, but third-party Thunderbolt external storage devices are not supported.
Technical specifications
The following specifications are organised from the supplied product information for QNAP TVS-AIh1688ATX-U7-32G.
Product details
| Brand | QNAP |
|---|---|
| Model / SKU | TVS-AIh1688ATX-U7-32G |
| Product type | 16-bay AI and virtualisation tower NAS |
Processor and Memory
| CPU | Intel® Core Ultra 7, 20-core (8P+12E), 20-thread processor, up to 5.3GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphics Processor | Intel® Graphics |
| Encryption Engine | Yes (AES-NI) |
| Hardware-Accelerated Transcoding | Yes |
| Neural Processing Unit | Yes |
| System Memory | 32GB ECC UDIMM DDR5 |
| Maximum Memory | 192GB (4 × 48GB) |
| Memory Slots | 4 × UDIMM DDR5 For dual-DIMM configurations, use a pair of identical DDR5 modules. |
Storage
| Drive Bays | 12 × 3.5-inch SATA 6Gb/s, 3Gb/s bays 4 × 2.5-inch U.2 NVMe Gen 4 x2 slots |
|---|---|
| 3.5-inch Bay Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| 2.5-inch Bay Compatibility | 2.5-inch U.2 / SATA solid state drives |
| Hot-Swappable | Yes |
| SSD Cache Acceleration | Supported |
Networking
| 2.5 Gigabit Ethernet | 2 × 2.5GbE ports (2.5G/1G/100M/10M) |
|---|---|
| 5 Gigabit Ethernet | Optional via an adapter |
| 10 Gigabit Ethernet | 2 × 10GBASE-T ports (10G/5G/2.5G/1G) |
| 25 Gigabit Ethernet | Optional via an adapter |
| Wake on LAN | Yes |
| Jumbo Frame | Yes |
Expansion and Connectivity
| Thunderbolt Port | Optional via the QXP-T52P two-port Thunderbolt 5 PCIe adapter Supports Thunderbolt connections for Windows and Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported. |
|---|---|
| PCIe Slots | 3 slots Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 Slot 3: PCIe Gen 4 x4 Slot 1 card dimensions: 260 × 111.15 × 37.52mm. Slot 2 card dimensions: 150 × 68.9 × 18.76mm. Slot 3 card dimensions: 150 × 68.9 × 18.76mm. Wider cards can be installed if the next PCIe slot is not used. |
| USB 3.2 Gen 2 Ports | 3 × USB 3.2 Gen 2 Type-A 2 × USB 3.2 Gen 2 Type-C |
| USB 4 Ports | 2 × USB 4 Type-C |
| HDMI Output | 1 × HDMI 2.1, up to 4096 × 2160 at 60Hz |
Physical Specifications
| Form Factor | Tower |
|---|---|
| LED Indicators | System status, LAN, USB and Disk 116 |
| LCD Display / Button | Yes |
| Buttons | Power, reset and USB Auto Copy |
| Dimensions (H × W × D) | 294.3 × 369.89 × 319.8mm |
| Net Weight | 13.8kg |
| Kensington Security Slot | Yes |
Power and Cooling
| Power Supply | 750W PSU, 100240V |
|---|---|
| Disk Standby Power Consumption | 97.036W |
| Typical Operating Power Consumption | 130.83W |
| Fans | System fan: 3 × 80mm, 12VDC CPU fan: 2 × 97mm, 12VDC |
| System Warning | Buzzer |
Operating Environment
| Operating Temperature | 040°C (32104°F) |
|---|---|
| Storage Temperature | -2070°C (-4158°F) |
| Relative Humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and Connections
| Standard Warranty | 5 years |
|---|---|
| Maximum Concurrent CIFS Connections | 10,000 with maximum memory installed |
| SKU | TVS-AIh1688ATX-U7-32G |
| Barcode # | 885022033096 |
| Brand | QNAP |
| Shipping Weight | 19.0000kg |
Five yearsQNAP manufacturer warranty
5-year QNAP manufacturer warranty
The supplied specifications list a 5-year manufacturer warranty for QNAP TVS-AIh1688ATX-U7-32G.
Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
