TBS-h574TX-i3-12G

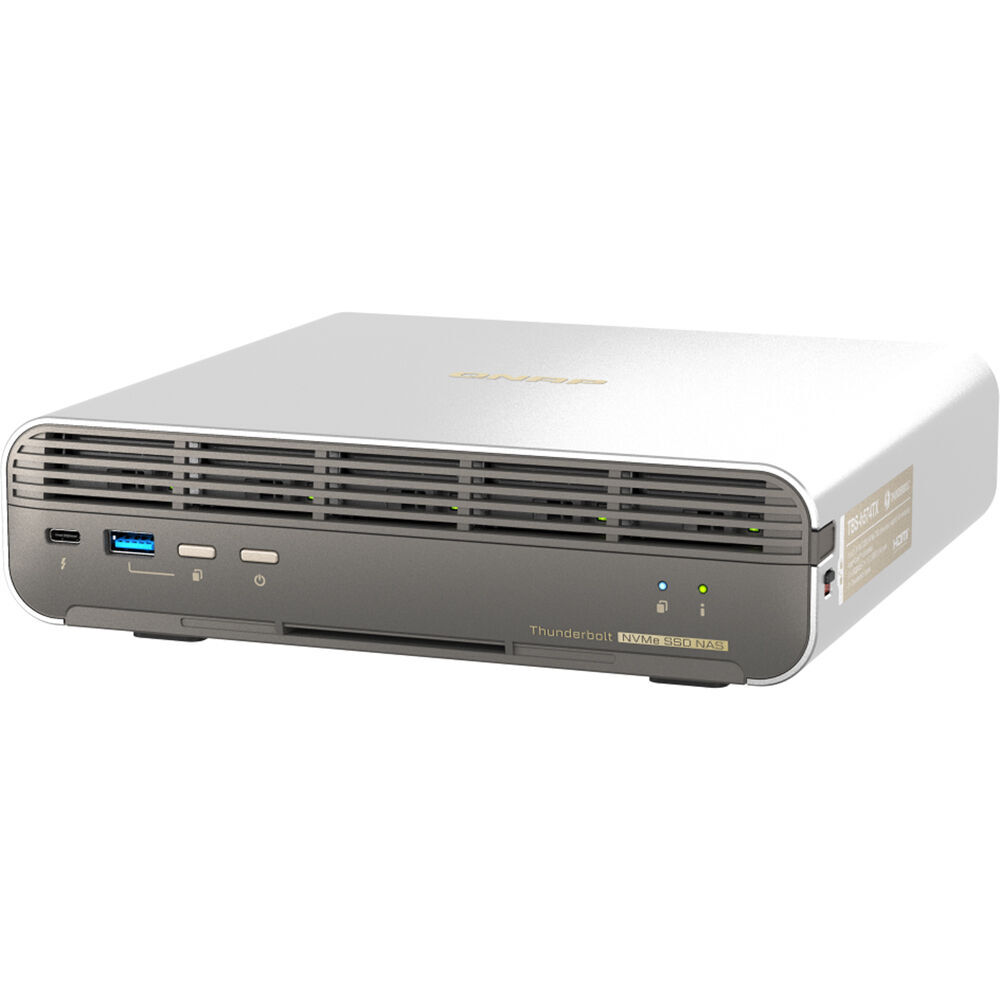

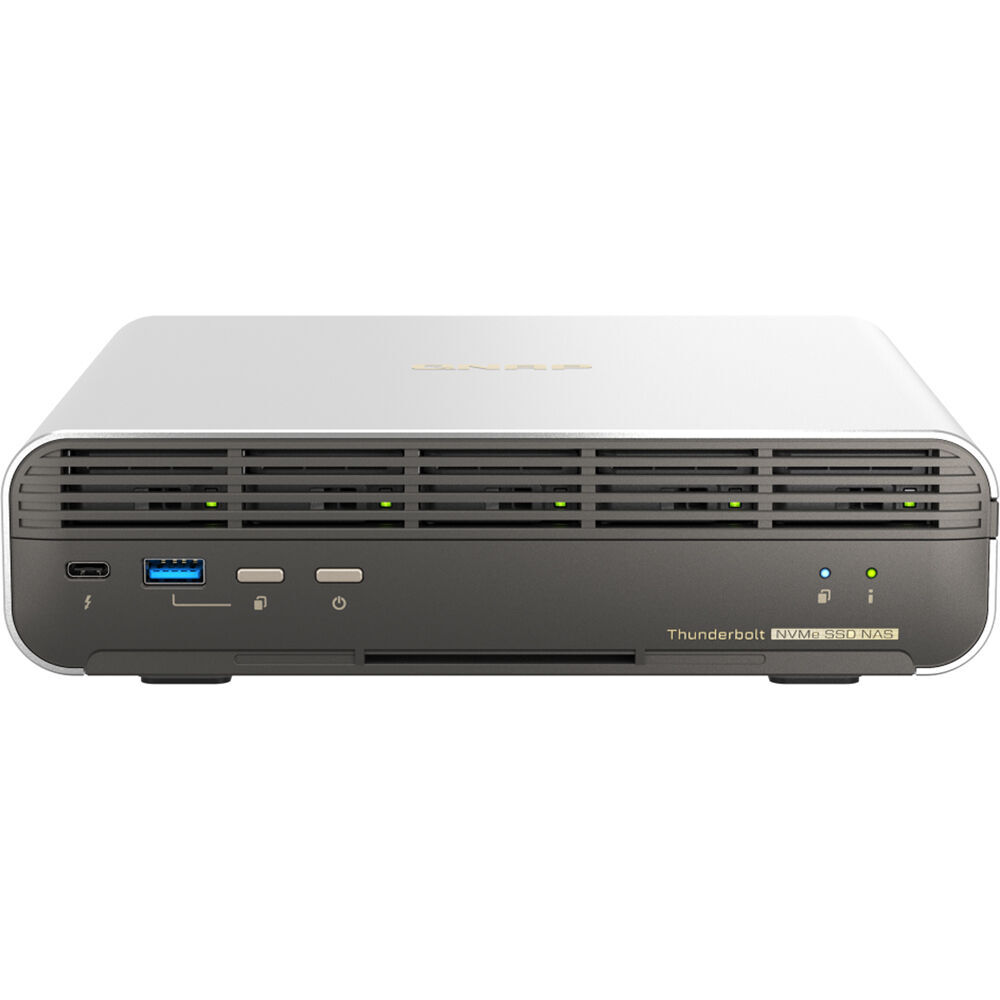

QNAP TBS-h574TX-i3-12G Thunderbolt 4 All-Falsh NASbook

TBS-h574TX-i3-12G Intel® Core™ i3-1320PE 8C(4P+4E)/12T up to 4.50GHz, 12 GB on board (non-expandable)

Make your creativity bloom with the lightning-fast Thunderbolt™ 4 All-Flash NASbook

Key Features

5 x E1.S / M.2 2280 NVMe PCIe Drive Bays

Intel Core i3-1320PE 8-Core (13th Gen)

12GB of DDR4 RAM

1 x 10GbE Port | 1 x 2.5GbE Port

2 x Thunderbolt 4 Ports

2 x USB-A 3.2 Gen 2 | 1 x USB-A 2.0

1 x HDMI 1.4b

RAID 0, 1, 5, 6, 10, JBOD, and Single

AES 256-Bit Volume Encryption

QTS 5.1.3 Operating System

Designed for film sets, small studios, small-scale video production teams and SOHO users, the compact TBS-h574TX Thunderbolt™ 4 all-flash NASbook elevates video production for optimum productivity. It packs high-speed I/O and Intel® Core™ performance required by video production, allowing creators using Mac® or Windows® to enjoy the smoothest experience ever in real-time video editing, large file transfer, video transcoding, and backup. The TBS-h574TX, as the bridge between pre-production and post-production, takes video projects and team collaboration to the next level.

thunderboltintel-core-i3intel-core-i52.5gbex10gbeusb3.2-gen2hdmiquts-hero-qts

Ultra-fast RAW file editing

With an E1.S to M.2 SSD adapter attached in each slot, you can flexibly install five E1.S or M.2 PCIe NVMe SSDs for lightning-fast multimedia file editing.

Stay agile for ongoing projects

Hot-swappable M.2 SSD and automatic RAID disk replacement enhance system reliability, reduce the risk of data loss, and smoothen ongoing projects.

Thunderbolt™ 4 for faster direct connections

Two Thunderbolt™ 4 ports allow directly connecting Mac®/PC workstations to the TBS-h574TX, delivering up to 20Gbps for 4K video editing.

Hybrid-architecture CPU for multitasking

The 13th Gen Intel® Core™ processors with hybrid-architecture (P-core and E-core) delivers high performance and efficiency.

2.5GbE and 10GbE as standard

2.5GbE and 10GbE networks accelerate large file transfer and allow for more connected devices/workstations by attaching a network switch.

Faster USB transfer

Two USB 3.2 Gen 2 (10Gbps) ports enable fast file import/export from/to external storage devices.

All-flash NASbook supporting E1.S/M.2 NVMe SSDs – a perfect companion for video production

Compared to large rackmount all-flash array storage, the TBS-h574TX all-flash NASbook features a compact, portable design with five SSD slots yet delivers extreme performance. It is the ideal choice to accelerate ongoing creative video projects from pre-production to post-production, and seamlessly works with USB DAS (TR-004) for file backup/archiving. The TBS-h574TX is always ready for your next project! An E1.S to M.2 SSD adapter is attached to each drive bay of the TBS-h574TX, providing great flexibility to choose between M.2 SSDs and E1.S SSDs on demand.



M.2 SSD

Supports M.2 2280 modules

Smaller capacity but more available on the market

More affordable and more vendor options; suited for diverse applications

Faster than SATA SSDs

Enabling hot-swappable M.2 SSDs!

As a frontline video production team, there is the risk of project interruptions due to unexpected SSD failures in storage devices. The innovative TBS-h574TX makes M.2 SSDs become hot-swappable for easier drive replacement. Along with supporting automatic RAID replacement with spares (supported from QTS 5.1 / QuTS hero h5.1), if potential drive errors are detected, the system automatically moves data from the affected drive in a RAID group to a spare, before the data on the affected drive is completely corrupted. This reduces system downtime and data loss risks as it avoids RAID rebuilding.

E1.S SSD

Supports heights of 5.9mm / 9.5mm / 15mm

Larger capacity but less common on the market

Suited for high-intensity data transfer and is more future-proof

Compared to M.2 SSDs, E1.S SSDs are hot-swappable and have higher heat dissipation efficiency

Advanced power-loss protection (PLP) that prevents data loss

High-performance SSDs. Effective heat dissipation.

Designed with an excellent cooling system, the TBS-h574TX is equipped with dual fans and supports SSD heatsinks (heatsinks sold separately) to effectively enhance heat dissipation during intensive workloads, allowing creators to confidently enjoy the ultimate performance of SSD.

Thunderbolt™ 4 direct connection to workstations for higher productivity

The TBS-h574TX has two Thunderbolt™ 4 ports for high-speed data transfer (up to 20Gbps bandwidth). Mac® (including M1 and M2 chip models) or Windows® workstations can directly connect to the TBS-h574TX for fast and smooth real-time video editing, allowing for the transfer of a 1TB 4K video just in 11 minutes.

Notes:

• QNAP Thunderbolt NAS adopts Thunderbolt Networking for peer-to-peer connection, up to 20Gbps.

• Mac® system requirement: macOS 13.5 (or later)

• Connect the TBS-h574TX to your Mac® or Windows® PC with Thunderbolt™ 4 / Thunderbolt™ 3 cables and your connected devices with the Thunderbolt icon

(TBS-h574TX-i3-12G)

Key Features

5 x E1.S / M.2 2280 NVMe PCIe Drive Bays

Intel Core i3-1320PE 8-Core (13th Gen)

12GB of DDR4 RAM

1 x 10GbE Port | 1 x 2.5GbE Port

2 x Thunderbolt 4 Ports

2 x USB-A 3.2 Gen 2 | 1 x USB-A 2.0

1 x HDMI 1.4b

RAID 0, 1, 5, 6, 10, JBOD, and Single

AES 256-Bit Volume Encryption

QTS 5.1.3 Operating System

CPU Intel® Core™ i3-1320PE 8C(4P+4E)/12T up to 4.50GHz
CPU Architecture 64-bit x86
Graphic Processors Intel® UHD Graphics for 13th Gen Intel® Processors
Floating Point Unit
Encryption Engine
Hardware-accelerated Transcoding
System Memory 12 GB on board (non-expandable)
Maximum Memory 12 GB on board (non-expandable)
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 5 x E1.S up to 15mm (5x PCIe Gen3 x2)

Pre-install adapter to support M.2 2280 for each slots
Drive Compatibility E1.S or M.2 2280 PCIe NVMe
Hot-swappable
SSD Cache Acceleration Support

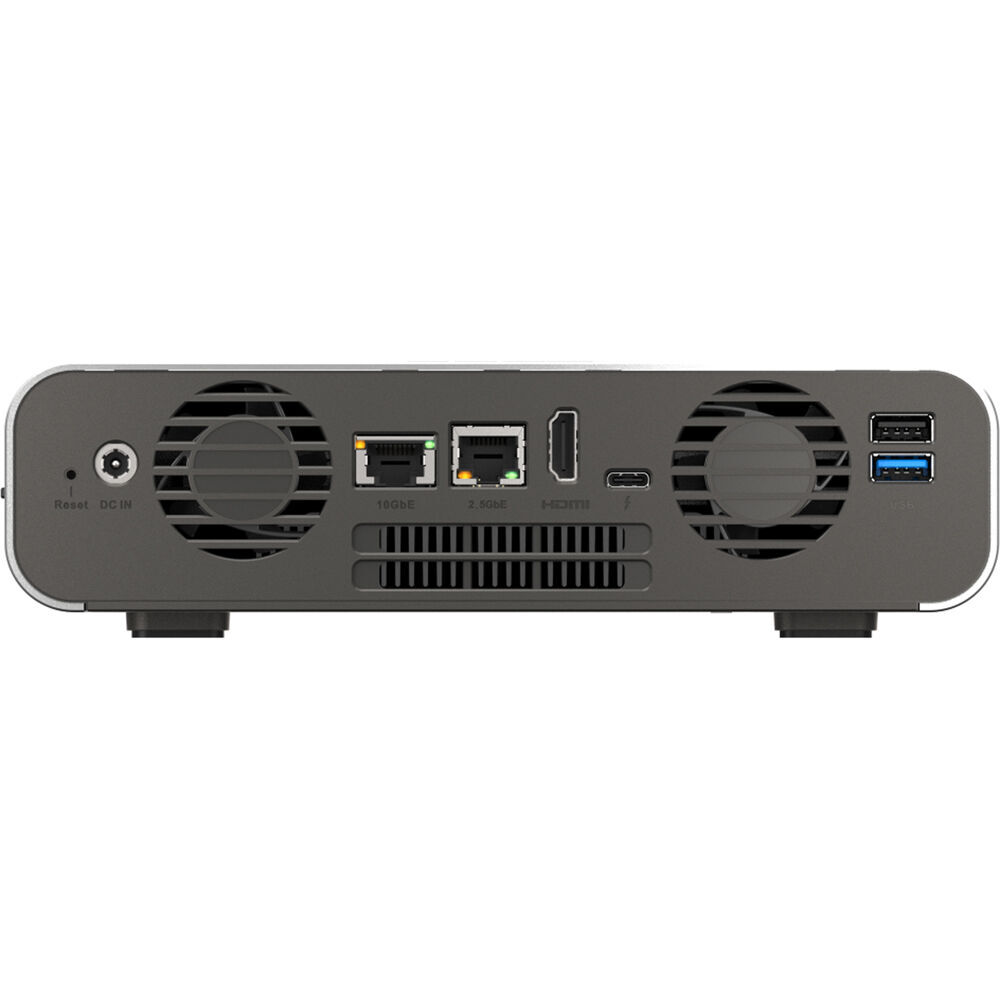

2.5 Gigabit Ethernet Port (2.5G/1G/100M) 1
10 Gigabit Ethernet Port 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL)
Jumbo Frame
Thunderbolt Port 2 (Thunderbolt™ 4)
USB 2.0 port 1
USB 3.2 Gen 2 (10Gbps) Port 2
HDMI™ Output 1, HDMI™ 1.4b
Form Factor Set-top design
LED Indicators Status, USB copy, SSD 1-5
Buttons Status, USB copy, Reset
Dimensions (HxWxD) 215 × 199 × 60 mm

Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)

Weight (Net) 2.24 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 120W Adapter (19VDC output, 100-240VAC input)
Power Consumption: Operating Mode, Typical 46 W
Fan System fan: 2 x 40mm
CPU fan: 1 x 75mm
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 1500
SKU TBS-h574TX-i3-12G
Barcode # 885022026876
Brand QNAP
Shipping Weight 2.2000kg

Manufacturer Warranty
