13th Gen Intel® Core⢠hybrid-architecture?CPU
Five E1.S/M.2 PCIe NVMe SSD slots; hot-swappable

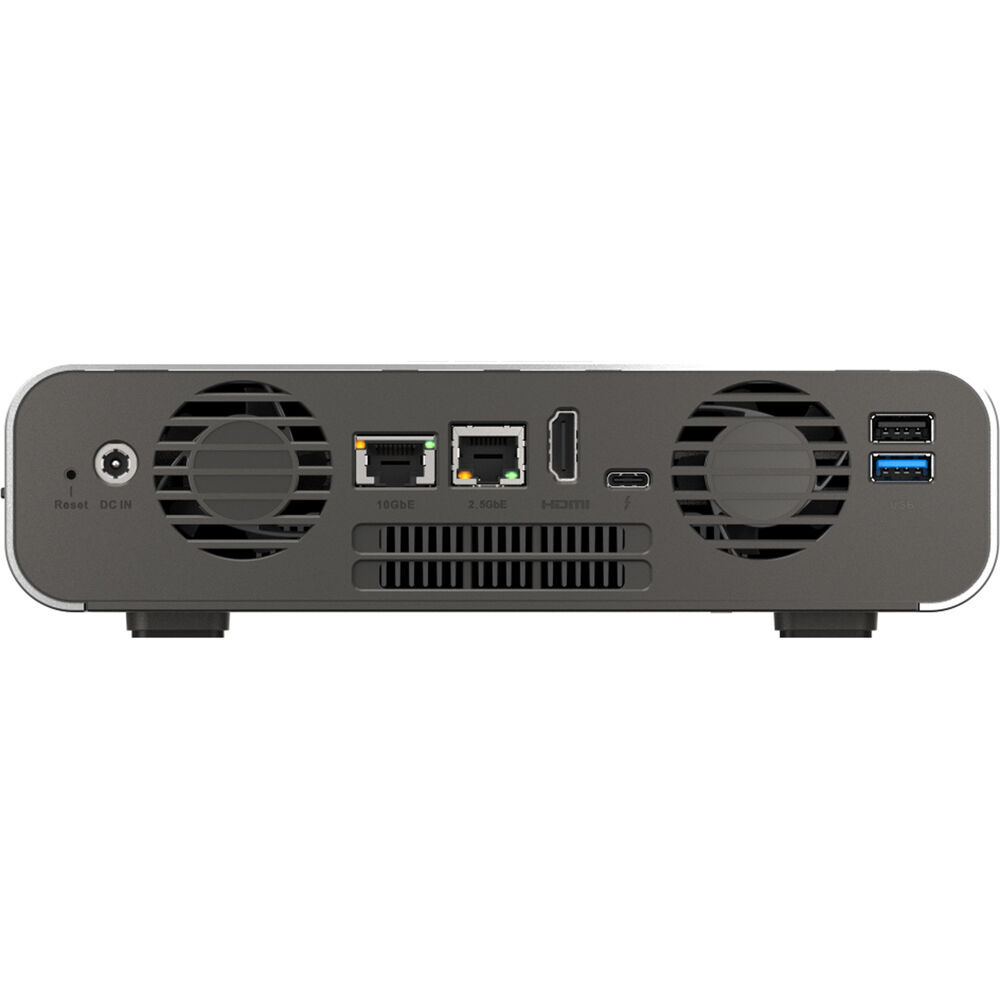

2x Thunderbolt⢠4, 1x 2.5GbE, 1x 10GbE, 2x USB 3.2 Gen 2 (10Gbps)
Â

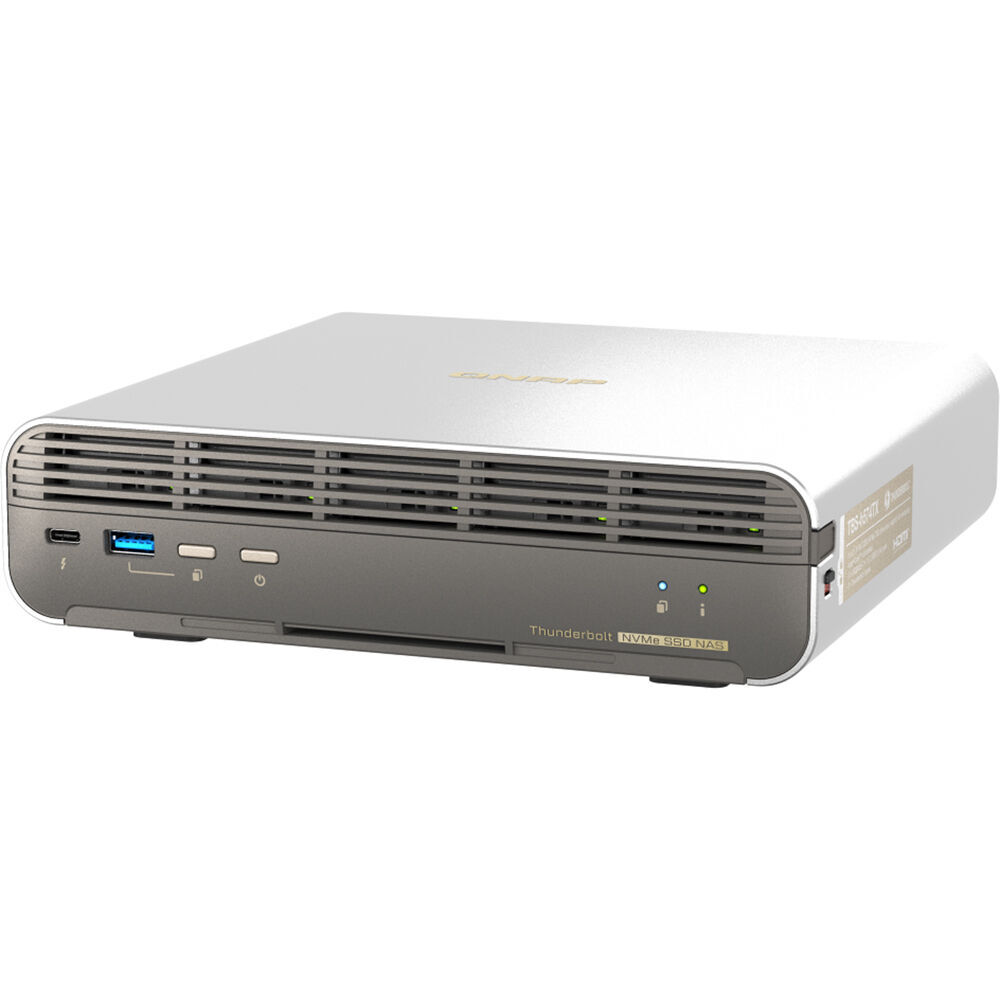

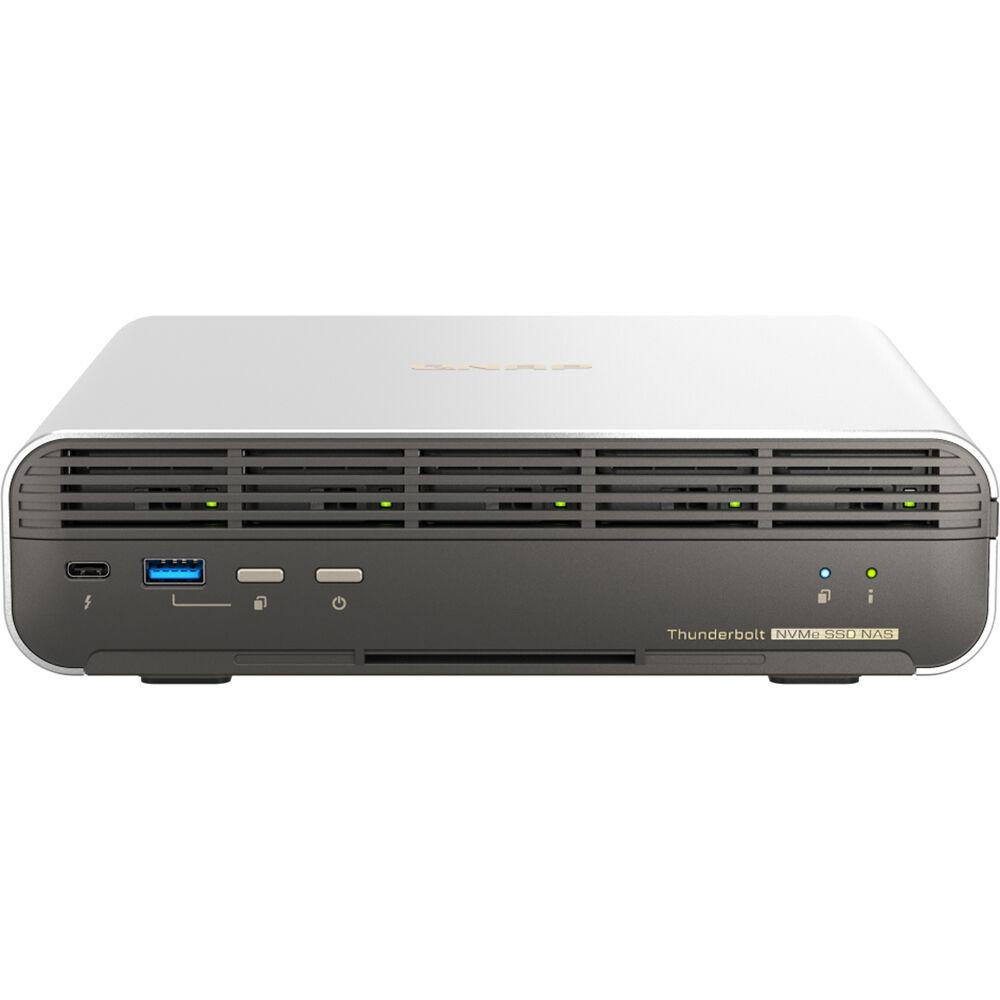

Designed for film sets, small studios, small-scale video production teams and SOHO users, the compact TBS-h574TX Thunderbolt⢠4 all-flash NASbook elevates video production for optimum productivity. It packs high-speed I/O and Intel® Core⢠performance required by video production, allowing creators using Mac® or Windows® to enjoy the smoothest experience ever in real-time video editing, large file transfer, video transcoding, and backup. The TBS-h574TX, as the bridge between pre-production and post-production, takes video projects and team collaboration to the next level. The TBS-h574TX runs the ZFS-based QuTS hero operating system that ensures data integrity. You can also switch to QTS operating system based on your needs.
-
Ultra-fast RAW file editing
With an E1.S to M.2 SSD adapter attached in each slot, you can flexibly install five E1.S or M.2 PCIe NVMe SSDs for lightning-fast multimedia file editing.
-
Stay agile for ongoing projects
Hot-swappable M.2 SSD and automatic RAID disk replacement enhance system reliability, reduce the risk of data loss, and smoothen ongoing projects.
-
Thunderbolt⢠4 for faster direct connections
Two Thunderbolt⢠4 ports allow directly connecting Mac®/PC workstations to the TBS-h574TX, delivering up to 20Gbps for 4K video editing.
-
Hybrid-architecture CPU for multitasking
The 13th Gen Intel® Core⢠processors with hybrid-architecture (P-core and E-core) delivers high performance and efficiency.
-
2.5GbE and 10GbE as standard
2.5GbE and 10GbE networks accelerate large file transfer and allow for more connected devices/workstations by attaching a network switch.
-
Faster USB transfer
Two USB 3.2 Gen 2 (10Gbps) ports enable fast file import/export from/to external storage devices.
Â
Specification
Â
| CPU | Intel® Core⢠i5-1340PE 12C(4P+8E)/16T up to 4.50GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® Iris® Xe Graphics eligible |
| Floating Point Unit |  |
| Encryption Engine | |
| Hardware-accelerated Transcoding | |
| System Memory | 16 GB on board (non-expandable) |
| Maximum Memory | 16 GB on board (non-expandable) |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 5 x E1.S up to 15mm (5x PCIe Gen3 x2) Pre-install adapter to support M.2 2280 for each slots |
| Drive Compatibility | E1.S or M.2 2280 PCIe NVMe |
| Hot-swappable | |
| M.2 Slot | 5 x M.2 2280 PCIe Gen 3 slots (via pre-installed adapter)
The system is shipped without SSD.
|
| SSD Cache Acceleration Support | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1 |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| Thunderbolt Port | 2 (Thunderbolt⢠4)
Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported.
|
| USB 2.0 port | 1 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 |
| HDMI⢠Output | 1, HDMI⢠1.4b |
| Form Factor | Set-top design |
| LED Indicators | Status, USB copy, SSD 1-5 |
| Buttons | Status, USB copy, Reset |
| Dimensions (HxWxD) | 60 Ã 215 Ã 199 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 2.24 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËC (80.6ËF) |
| Power Supply Unit | 120W Adapter (19VDC output, 100-240VAC input) |
| Power Consumption: Operating Mode, Typical | 46 W |
| Fan | System fan: 2 x 40mm CPU fan: 1 x 75mm |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
