Five HDD plus four SSD bays
The mixed 3.5-inch and 2.5-inch layout supports an HDD/SSD hybrid storage configuration.
QNAP TS-932PX-4G 9-Bay 10GbE and 2.5GbE Hybrid NAS - 4GB RAM
Model # TS-932PX-4G
-
SKU: TS-932PX-4G
- Pick Up Available
- Australian Warranty
- Checkout Securely
compact 9-bay hybrid-storage NAS
QNAP TS-932PX-4G 9-Bay 10GbE and 2.5GbE NAS
The QNAP TS-932PX-4G is a diskless 9-bay tower NAS with five 3.5-inch bays, four 2.5-inch SSD bays, an Alpine AL324 quad-core 1.7GHz processor, 4GB DDR4 memory, dual 10GbE SFP+ and dual 2.5GbE.
Diskless 9-bay NASDual 10GbE SFP+Dual 2.5GbE2-year warranty
What is the QNAP TS-932PX-4G?
It is a compact mixed-bay NAS that combines hard-drive capacity with dedicated 2.5-inch SSD bays for SSD caching, Qtier auto-tiering and high-speed network access.
5 + 4 BaysHDD and SSD hybrid layout
4GB DDR4Expandable to 16GB
2 × 10GbEBuilt-in SFP+ ports
2 × 2.5GbEMulti-gigabit RJ45 ports
Need help choosing a NAS?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage considerations and practical features before selecting your next network storage system.

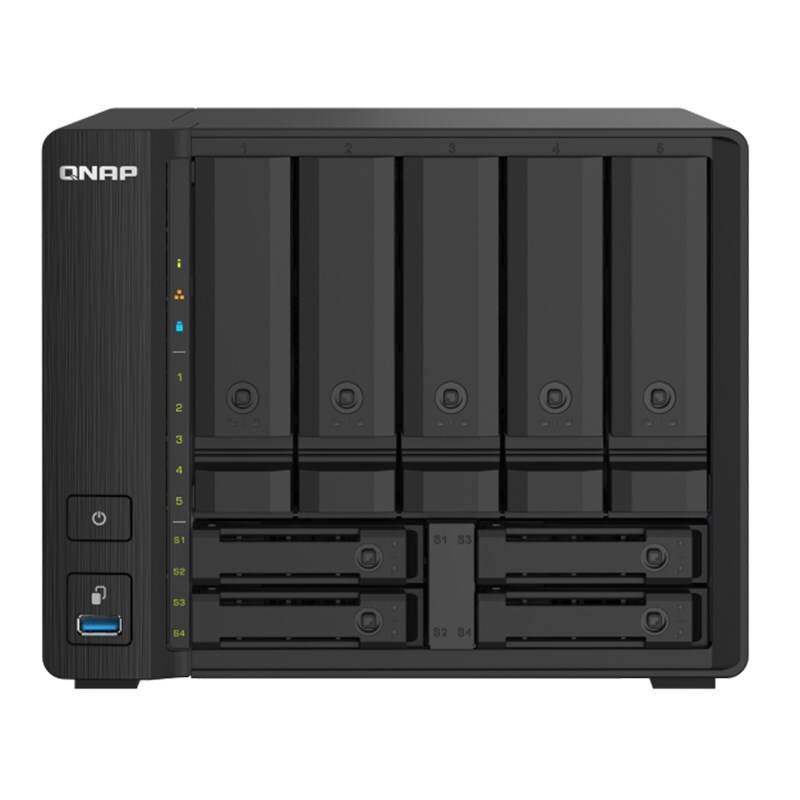

Compact nine-bay hybrid storage
The TS-932PX provides five 3.5-inch SATA 6Gb/s bays and four 2.5-inch SATA 6Gb/s bays in a compact tower chassis.
The mixed-bay design supports an HDD and SSD storage configuration that can combine storage capacity with SSD-based application acceleration.
- The 3.5-inch bays support compatible 3.5-inch SATA hard drives, 2.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
- The four 2.5-inch bays support compatible 2.5-inch solid state drives.
- All nine drive bays are listed as hot-swappable.
Quad-core ARM processing and expandable memory
The AnnapurnaLabs Alpine AL324 is a 64-bit ARM Cortex-A57 four-core processor running at 1.7GHz.
The NAS includes 4GB SODIMM DDR4 memory and supports up to 16GB through one SODIMM slot.
- The supplied specifications include an encryption engine.
- Use compatible memory and refer to the hardware user manual before installation.
- Maximum concurrent CIFS connections are listed as 700 with maximum memory installed.
Built-in 10GbE and 2.5GbE networking
Two 10GbE SFP+ ports and two 2.5GbE RJ45 ports provide built-in high-speed connectivity without requiring an additional network card.
Port Trunking and Failover are supported for resilient or aggregated network configurations.
- Wake on LAN is supported through the 2.5GbE ports.
- Jumbo Frame support is included.
- Three USB 3.2 Gen 1 ports are listed for external connectivity.
Storage protection, optimisation and expansion
The supplied product information includes backup and recovery, source-side QuDedup, block-based snapshots and hybrid-cloud storage gateways.
Qtier auto-tiering, SSD caching and SSD over-provisioning support storage optimisation.
- Storage capacity can be expanded using compatible QNAP TR RAID enclosures or TL JBOD expansion units.
- QTS 5.1.0 supports AES-128-GMAC signing acceleration for compatible Windows Server 2022 and Windows 11 clients using SMB 3.1.1.
- The system warning method is listed as voice prompts or buzzer.
Important purchasing and deployment notes
- The product name identifies this model as diskless; compatible storage drives must be purchased separately.
- Match each drive to the bay type and supported interface before purchase.
- The single memory slot supports up to one 16GB SODIMM DDR4 module.
- Check SFP+ transceiver, cable and expansion-unit compatibility for the planned network and storage design.
Frequently asked questions
What is the QNAP TS-932PX-4G?
It is a compact diskless nine-bay NAS with five 3.5-inch bays, four 2.5-inch SSD bays, dual 10GbE SFP+ and dual 2.5GbE.
Does the TS-932PX-4G include storage drives?
The supplied product name identifies it as a diskless NAS, so compatible drives must be purchased separately.
How are the nine drive bays arranged?
It has five 3.5-inch SATA bays and four 2.5-inch SATA bays.
Which processor is installed?
It uses an AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 four-core processor running at 1.7GHz.
How much memory is installed and supported?
It includes 4GB SODIMM DDR4 memory and supports up to 16GB through one memory slot.
Which network ports are built in?
It includes two 10GbE SFP+ ports and two 2.5GbE RJ45 ports.
Does it support Wake on LAN?
Yes. Wake on LAN is supported through the two 2.5GbE ports.
Are the drive bays hot-swappable?
Yes. The supplied specifications list the drive bays as hot-swappable.
Does it support SSD caching and Qtier?
Yes. SSD cache acceleration and Qtier auto-tiering are included in the supplied product information.
Can its storage capacity be expanded?
Yes. Compatible QNAP TR RAID expansion enclosures and TL JBOD expansion units can be used.
Which USB ports are included?
The supplied specifications list three USB 3.2 Gen 1 ports.
What manufacturer warranty applies?
The supplied specifications list a two-year QNAP manufacturer warranty.
(TS-932PX-4G)
Features and highlights
Key capabilities below are organised from the supplied product information for TS-932PX-4G.
Dual 10GbE SFP+
Two built-in 10GbE ports support bandwidth-demanding file access and sharing.
Dual 2.5GbE RJ45
Two additional multi-gigabit ports support Port Trunking, Failover and Wake on LAN.
4GB expandable DDR4
The installed 4GB memory supports expansion to a maximum of 16GB.
SSD storage optimisation
SSD caching, Qtier auto-tiering and SSD over-provisioning are listed.
Storage expansion support
Compatible QNAP TR RAID and TL JBOD units can be used to increase capacity.
Important: This model is identified as diskless in the supplied product name. Confirm drive, SFP+, cable and expansion-unit compatibility before ordering.
TS-932PX-4G specifications
Specifications below are organised from the supplied QNAP product information for TS-932PX-4G.
Processor and Memory
| CPU | AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 4-core 1.7GHz processor |
|---|---|
| CPU Architecture | 64-bit ARM |
| Encryption Engine | Yes |
| System Memory | 4 GB SODIMM DDR4 |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x SODIMM DDR4 |
Storage
| Drive Bays | 5 x 3.5-inch + 4 x 2.5-inch SATA 6Gb/s |
|---|---|
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch solid state drives |
| Hot-Swappable | Yes |
| SSD Cache Acceleration Support | Yes |
Networking
| 2.5 Gigabit Ethernet | 2 x 2.5GbE ports (2.5G/1G/100M/10M) |
|---|---|
| 10 Gigabit Ethernet | 2 x 10GbE SFP+ |
| Wake on LAN | Yes Supported through the 2.5GbE ports only. |
| Jumbo Frame | Yes |
Connectivity and Controls
| USB Ports | 3 x USB 3.2 Gen 1 ports |
|---|---|
| LED Indicators | System status, LAN, USB, HDD15, SSD14 |
| Buttons | Power, reset, USB Copy |
Physical Specifications
| Form Factor | Tower |
|---|---|
| Dimensions (H x W x D) | 176.5 x 224.6 x 224.1 mm Dimensions do not include the foot pad. The foot pad may be up to 30 mm / 1.18 inches high depending on model. |
| Weight (Net) | 4.66 kg |
| Weight (Gross) | 5.2 kg |
| Kensington Security Slot | Yes |
Power and Cooling
| Power Supply Unit | External, 120 W, AC 100 to 240 V |
|---|---|
| Power Consumption: Disk Standby Mode | 23.833 W |
| Power Consumption: Operating Mode, Typical | 43.003 W Tested with drives fully populated. |
| Fan | 1 x 140 mm, 12VDC |
| System Warning | Voice prompts or buzzer |
Environmental
| Operating Temperature | 040°C (32104°F) |
|---|---|
| Storage Temperature | -2070°C (-4158°F) |
| Relative Humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and Connections
| Standard Warranty | 2 years |
|---|---|
| Maximum Concurrent Connections (CIFS) | 700 with maximum memory installed |
| SKU | TS-932PX-4G |
| Model # | TS-932PX |
| Barcode # | 4713213517963 |
| Brand | QNAP |
| Shipping Weight | 5.1000kg |
| Shipping Width | 0.320m |
| Shipping Height | 0.320m |
| Shipping Length | 0.320m |
2 YearsQNAP manufacturer warranty
2-year QNAP manufacturer warranty
The supplied specifications list a 2-year standard manufacturer warranty for the QNAP TS-932PX-4G.
Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
