QNAP TS-h973AX-8G Desktop 9-Bay Diskless NAS AMD Ryzen CPU 8GB RAM
Model # TS-h973AX-8G
-
SKU: TS-h973AX-8G
$2,136.00
Stock Availability
🟢Live
Only 1 left!
Vermont VIC: ✓ In Stock
(Click & Collect Available)
(Click & Collect Available)
- Pick Up Available
- Australian Warranty
- Checkout Securely
Diskless 9-bay hybrid-storage tower NAS
QNAP TS-h973AX-8G 9-Bay Ryzen 10GbE QuTS hero NAS

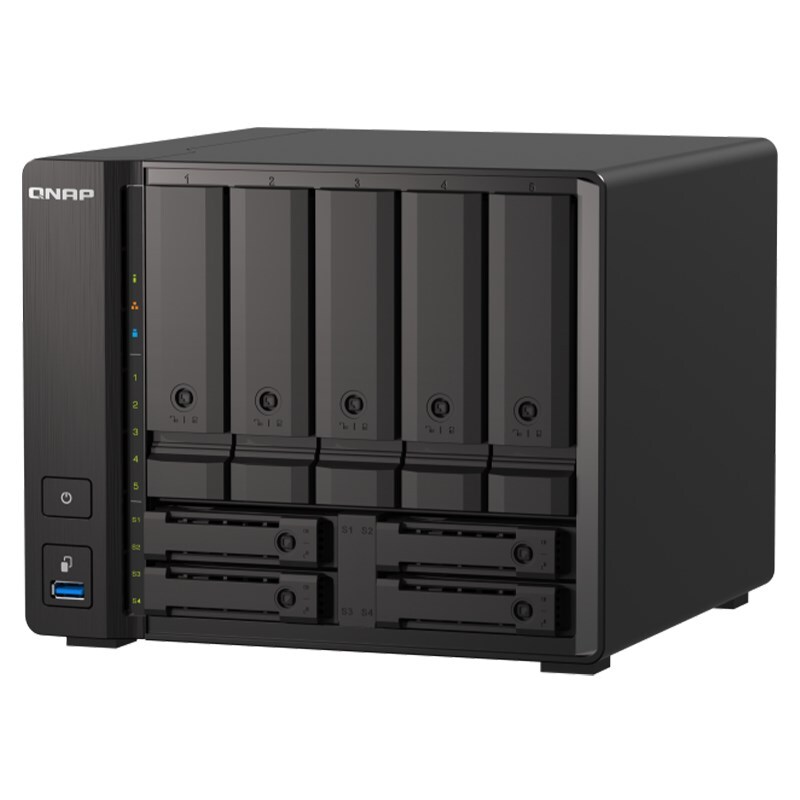

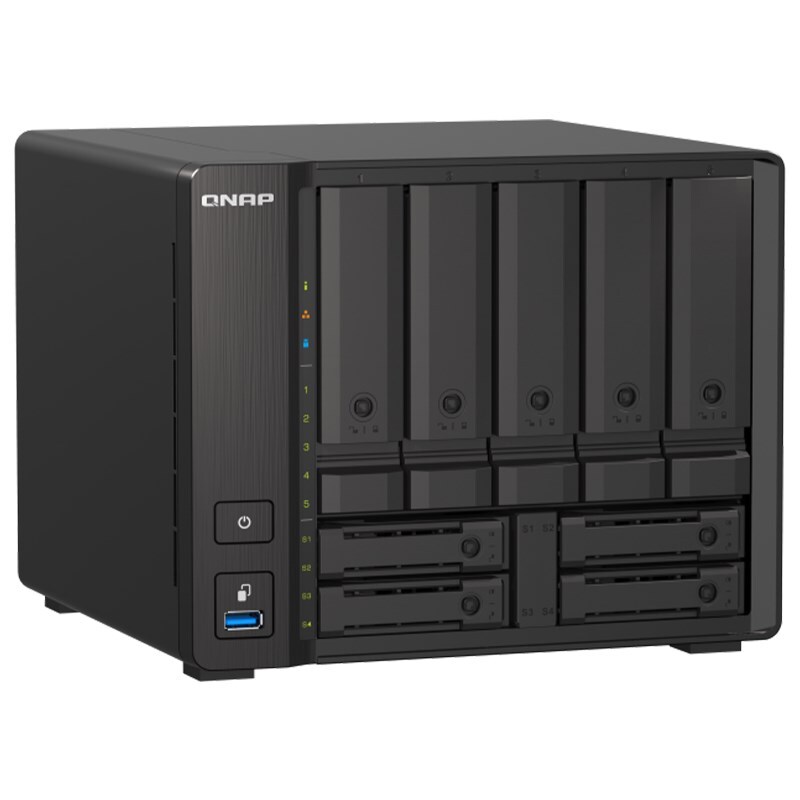

The QNAP TS-h973AX-8G is a diskless 9-bay QuTS hero NAS with an AMD Ryzen Embedded V1500B processor, 8GB DDR4 memory, five 3.5-inch bays, four 2.5-inch bays, one 10GBASE-T port and two 2.5GbE ports.
Diskless9 bays8GB DDR410GbE + 2.5GbEQNAP manufacturer warranty
What is the QNAP TS-h973AX-8G?
It is a diskless hybrid tower NAS with SATA HDD, SATA SSD and U.2 NVMe support. U.2 NVMe drives can only be installed in 2.5-inch bays 1 and 2.
Feature group 1
Ryzen processing and expandable memory
The platform combines four-core processing with two DDR4 memory slots.
AMD Ryzen Embedded V1500B
The processor provides four cores, eight threads and a 2.2GHz clock speed.
8GB installed memory
The supplied configuration includes one 8GB SODIMM DDR4 module and supports up to 64GB.
Memory-intensive applications
The supplied information recommends at least 16GB for applications such as Virtualization Station, Qcenter, Qsirch, QVR Center, Qsync and Boxafe.
Feature group 2
Hybrid HDD, SATA SSD and U.2 NVMe storage
The nine drive positions support a mixed capacity and flash-storage design.
Five 3.5-inch bays
These bays support compatible 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
Four 2.5-inch bays
The 2.5-inch positions support compatible SATA solid state drives.
U.2 NVMe restriction
Only 2.5-inch bays 1 and 2 support U.2 NVMe PCIe Gen 3 x4 SSDs. Installing U.2 drives elsewhere can damage the connectors.
Need help choosing a NAS?
Read NAS Buying Guide
Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage planning considerations and practical buying factors before selecting a system.
Feature group 3

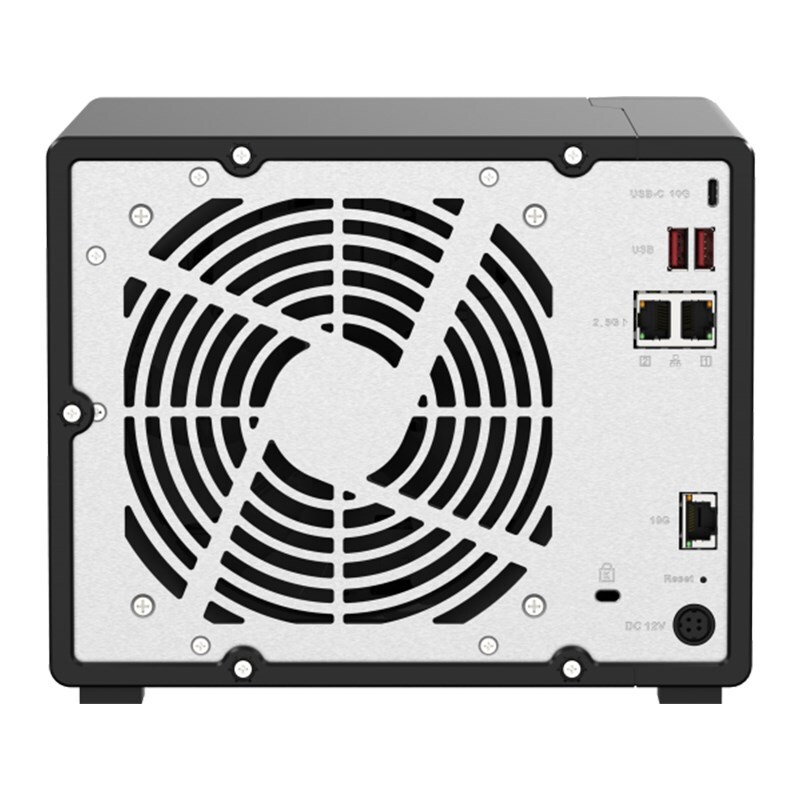

10GbE and 2.5GbE connectivity
Multi-gigabit networking supports file access, backup and media workflows.
10GBASE-T
One port supports 10G, 5G, 2.5G, 1G and 100M speeds.
Dual 2.5GbE
Two additional ports support 2.5G, 1G and 100M.
USB connectivity
One Type-C and three Type-A USB 3.2 Gen 2 ports support transfer speeds up to 10Gbps.
Feature group 4
QuTS hero and expansion
ZFS-based features support protection, efficiency and hybrid-cloud applications.
Data protection
The supplied feature set includes inline deduplication, compression, snapshots and SnapSync.
Business applications
Virtual machines, containers, SaaS backup, VM backup and cloud storage gateways are supported by the supplied content.
External expansion
Compatible USB expansion enclosures, including TR-series JBOD units, can expand storage capacity.
Frequently asked questions
Does the QNAP TS-h973AX-8G include storage drives?
No. It is supplied without hard disk drives or solid state drives.
How are the nine drive bays configured?
It has five 3.5-inch bays and four 2.5-inch bays.
Where can U.2 NVMe SSDs be installed?
U.2 NVMe PCIe Gen 3 x4 SSDs can only be installed in 2.5-inch bays 1 and 2. Installing them in other bays can damage the drive connectors.
Which processor is installed?
It uses an AMD Ryzen Embedded V1500B four-core, eight-thread processor running at 2.2GHz.
How much memory is included and supported?
It includes 8GB SODIMM DDR4 memory and supports up to 64GB using two 32GB modules.
Does it support ECC memory?
Yes. Optional ECC memory is supported. For dual-DIMM configurations, use identical modules and do not mix ECC and non-ECC memory.
Should the memory be upgraded for virtualisation?
The supplied information recommends at least 16GB for memory-intensive applications including Virtualization Station, Qcenter, Qsirch, QVR Center, Qsync and Boxafe.
What network ports are included?
It includes one 10GBASE-T port and two 2.5GbE ports.
Which USB ports are provided?
It includes one USB 3.2 Gen 2 Type-C port and three USB 3.2 Gen 2 Type-A ports, with speeds up to 10Gbps.
Does it support SSD cache acceleration?
Yes. SSD cache acceleration is supported.
Can storage capacity be expanded?
Yes. Compatible USB expansion enclosures, including TR-series JBOD units, can be connected.
What warranty applies to the TS-h973AX-8G?
The supplied specifications list a three-year QNAP manufacturer warranty. Coverage is subject to QNAPs applicable warranty terms.
(TS-h973AX-8G)
Features and highlights
Key product details organised from the supplied QNAP information for TS-h973AX-8G.
Diskless 9-bay design
Five 3.5-inch bays and four 2.5-inch bays support mixed storage configurations.
Ryzen V1500B processor
Four cores and eight threads operate at 2.2GHz.
8GB DDR4 memory
Memory supports expansion up to 64GB, with optional ECC support.
Built-in 10GbE
One 10GBASE-T port and two 2.5GbE ports are included.
U.2 NVMe support
Bays 1 and 2 support U.2 NVMe PCIe Gen 3 x4 SSDs.
QuTS hero
ZFS-based data protection, snapshots and data-reduction features are included.
Purchase check: This NAS is supplied without HDDs or SSDs. U.2 NVMe SSDs can only be installed in 2.5-inch bays 1 and 2. For listed memory-intensive applications, the supplied information recommends at least 16GB memory.
Technical specifications
The following specifications are organised from the supplied product information for QNAP TS-h973AX-8G.
Product details
| Brand | QNAP |
|---|---|
| Model / SKU | TS-h973AX-8G |
| Product type | diskless 9-bay hybrid-storage tower NAS |
Processor and Memory
| CPU | AMD Ryzen Embedded V1500B 4-core, 8-thread 2.2GHz processor |
|---|---|
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes, AES-NI |
| System Memory | 8GB SODIMM DDR4 (1 x 8GB) |
| Maximum Memory | 64GB (2 x 32GB) |
| Memory Slots | 2 x SODIMM DDR4 Optional ECC memory supported For a dual-DIMM configuration, use a pair of identical DDR4 modules. |
| Flash Memory | 5GB with dual-boot OS protection |
Storage
| Drive Bays | 5 x 3.5-inch plus 4 x 2.5-inch The system is supplied without hard disk drives or solid state drives. |
|---|---|
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives 2.5-inch U.2 NVMe PCIe Gen 3 x4 solid state drives in bays 1 and 2 2.5-inch bays 1 and 2 support either U.2 NVMe SSDs or SATA 6Gb/s SSDs. U.2 NVMe SSDs can only be installed in 2.5-inch bays 1 and 2. Installing them in other bays will damage the drive connectors. |
| Hot-Swappable | Yes |
| SSD Cache Acceleration Support | Yes |
Networking
| 2.5 Gigabit Ethernet | 2 x 2.5GbE RJ45 ports (2.5G/1G/100M) |
|---|---|
| 5 Gigabit Ethernet | Optional via the QNA-UC5G1T USB-to-5GbE network adapter |
| 10 Gigabit Ethernet | 1 x 10GBASE-T port (10G/5G/2.5G/1G/100M) |
| Wake on LAN | Yes |
| Jumbo Frame | Yes |
Connectivity and Physical Specifications
| USB 3.2 Gen 2 Ports | 1 x Type-C USB 3.2 Gen 2 3 x Type-A USB 3.2 Gen 2 Up to 10Gbps |
|---|---|
| Form Factor | Tower |
| LED Indicators | HDD 15, SSD 14, power/status, LAN and USB |
| Buttons | Power, reset and USB Copy |
| Dimensions (H x W x D) | 176.5 x 224.6 x 224.1mm The supplied datasheet also lists 6.95 x 8.84 x 8.82 inches. Dimensions do not include the foot pad, which may be up to 30mm / 1.18 inches high depending on the model. |
| Net Weight | 4.34kg / 9.57lb |
| Gross Weight | 5.08kg / 11.2lb |
Power and Cooling
| Power Supply Unit | External 120W, AC 100240V |
|---|---|
| Power Consumption: Disk Standby | 41.2W |
| Power Consumption: Typical Operating Mode | 55.41W Tested with drives fully populated. |
| Fan | 1 x 140mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
Operating Environment
| Operating Temperature | 040°C (32104°F) |
|---|---|
| Storage Temperature | -2070°C (-4158°F) |
| Relative Humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and Connections
| Standard Warranty | 3 years |
|---|---|
| Maximum Concurrent CIFS Connections | 2,000 with maximum memory installed |
| SKU | TS-h973AX-8G |
| Model # | TS-h973AX |
| Barcode # | 4713213518649 |
| Brand | QNAP |
| Shipping Weight | 5.2000kg |
| Shipping Width | 0.230m |
| Shipping Height | 0.230m |
| Shipping Length | 0.180m |
Three yearsQNAP manufacturer warranty
3-year QNAP manufacturer warranty
The supplied specifications list a 3-year manufacturer warranty for QNAP TS-h973AX-8G.
Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
