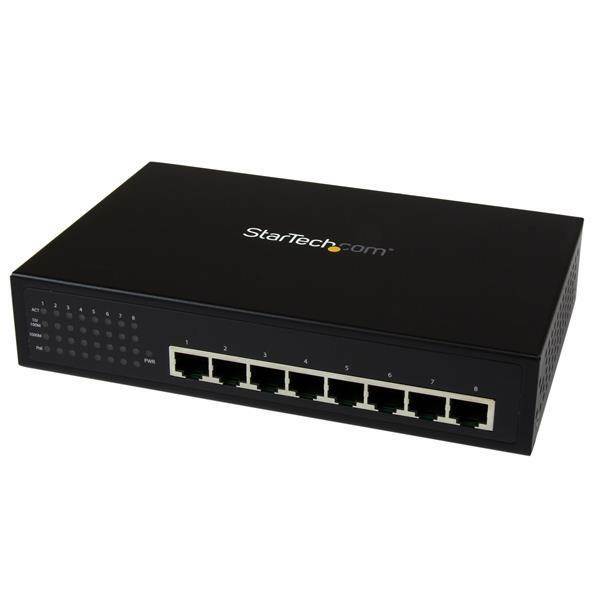

The IES81000POE 8-Port Gigabit Power over Ethernet Switch lets you connect Gigabit Ethernet and power to up to eight PoE-enabled devices, or a mixture of PoE and non-PoE components.

Giving you the freedom to place your equipment in locations where power outlets are not available, this PoE+ switch complies with IEEE 802.3af and 802.3at standards and supplies up to 30 W per port, with a total power budget of 120 W.

A true unmanaged switching solution, the 8 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, and also auto-negotiate between 10/100/1000 Mbps network speed and duplex.

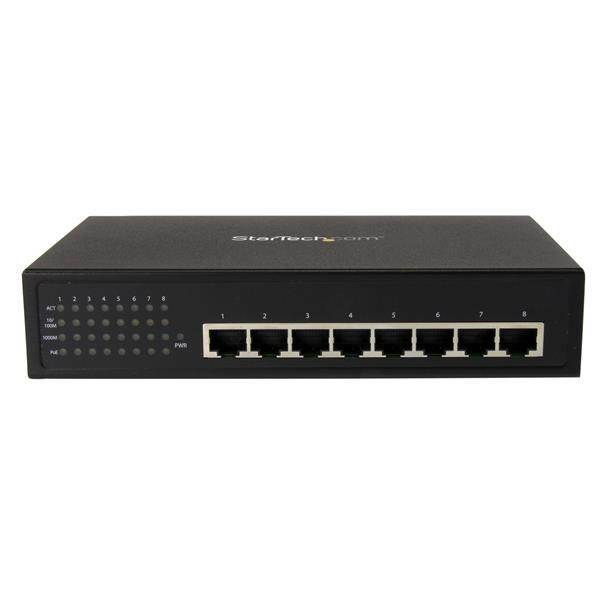

The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications

  • Power a security camera/network webcam situated in a remote area where power connection is not possible
  • Perfect for powering a Wireless Access Point(WAP) in a business environment
  • Great for IT administrators implementing PoE supported VoIP phones
+ More- Less

The StarTech.com Advantage

  • Position your network devices where power outlets aren’t available, with 30 Watts per-port from the switch
  • Reduce expenses by using existing standard Cat5/5e/6 Ethernet cabling to deliver power and data
  • Provides durable performance in harsh environments with a sturdy steel construction

(IES81000POE)

Warranty Information
Warranty 2 Years
Hardware
Industry Standards IEEE 802.3at/af Power Over Ethernet, IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3x Flow Control
Ports 8
Performance
Auto MDIX Yes
Buffer Size 128 KB
Compatible Networks 10/100/1000 Mbps
Flow Control Half-duplex back-pressure and IEEE802.3x full-duplex
Full Duplex Support Yes
Maximum Data Transfer Rate 2 Gbps (Full-Duplex)
Switching Architecture Store-and-Forward
Connector(s)
Connector Type(s) 8 - RJ-45 Female
Software
OS Compatibility OS Independent; No additional drivers or software required
Special Notes / Requirements
Patents and Licenses The following patents are licensed for this product. This list might not be all inclusive.
• United States Patent No. 5,406,260 (expired)
• United States Patent No. 6,650,622
• United States Patent No. 7,457,250
• United States Patent No. 8,155,012
• United States Patent No. 8,902,760
• United States Patent No. 8,942,107
• United States Patent No. 9,019,838
• United States Patent No. 9,049,019
• United States Patent Application No. 14/695,456
• United States Patent Application No. 14/726,940
Indicators
LED Indicators 1 - Power
8 - Activity
8 - 10/100 Mbps
8 - 1000 Mbps
8 - PoE
Power
Center Tip Polarity Positive
Input Current 2 A
Input Voltage 100 - 240 AC
Output Current 2.31 A
Output Voltage 52 DC
Plug Type M
Power Consumption (In Watts) 120
Power Source AC Adapter Included
Environmental
Humidity 10~90% RH (Non-Condensing)
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 90°C (-4°F to 194°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 1.5 in [3.8 cm]
Product Length 7.4 in [18.8 cm]
Product Width 4.7 in [11.9 cm]
Weight of Product 26.5 oz [750 g]
Packaging Information
Package Height 2.7 in [69 mm]
Package Length 14.6 in [37.1 cm]
Package Width 7.8 in [19.7 cm]
Shipping (Package) Weight 3.9 lb [1.8 kg]

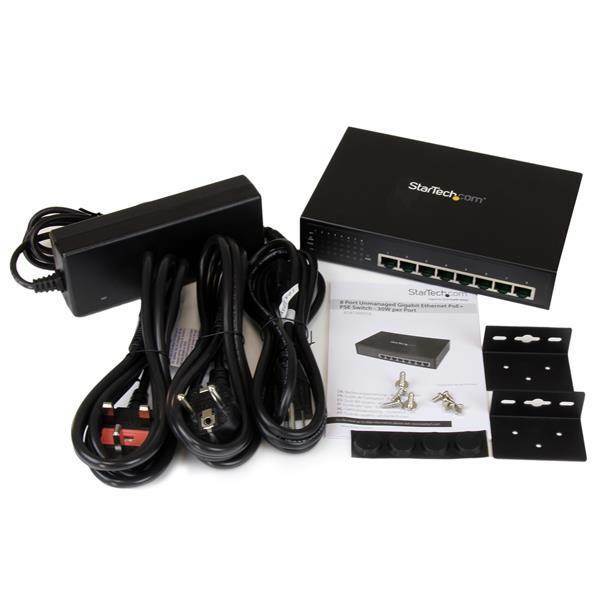

What's in the Box
Included in Package 1 - 8 Port Gigabit PoE Switch
2 - Wallmount Brackets
1 - Set, Rubber Feet
1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
1 - Instruction Manual
SKU IES81000POE
Barcode # 65030854573
Brand Startech
Shipping Weight 1.7900kg
Manufacturer Warranty: 2 Years Limited Warranty
