StarTech.com · PCIEPOWEXT

StarTech 8in 6 pin PCI Express Power Extension Cable - PCIEPOWEXT

Eight-inch 6-pin PCI Express power extension cable for improving reach and reducing strain inside a desktop or server chassis.

Quick answer: Extends an existing 6-pin PCIe power lead by 203mm between the power supply and a compatible graphics or expansion card.

Best forSystem builds where the PSU lead is too short or places tension on the graphics-card power connector.

Check before orderingBoth ends are 6-pin PCIe power connectors. This extension does not convert to 8-pin and does not increase the PSU power capacity.

Answers before you buy

Frequently asked questions

What does PCIEPOWEXT do?

Extends an existing 6-pin PCIe power lead by 203mm between the power supply and a compatible graphics or expansion card.

Who is this product best for?

System builds where the PSU lead is too short or places tension on the graphics-card power connector.

What should I check before ordering?

Both ends are 6-pin PCIe power connectors. This extension does not convert to 8-pin and does not increase the PSU power capacity.

Does it require drivers or software?

No. It is a passive internal power extension cable.

What is included in the package?

One 8-inch 6-pin PCI Express power extension cable.

What is the key installation requirement?

Confirm the power supply and card use compatible 6-pin PCIe power connectors and that the PSU can safely support the connected card.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

PCIEPOWEXT carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(PCIEPOWEXT)

Features & highlights

Why choose PCIEPOWEXT?

?203mm extensionAdds eight inches of reach inside a desktop or server chassis.

?6-pin to 6-pin PCIe powerExtends an existing PCI Express graphics power connection.

?Reduces cable strainHelps avoid stretching the PSU cable across components.

?18 AWG conductorsBuilt with an internal-power cable gauge suited to the specified use.

?Flexible cable designSupports cleaner routing in constrained system builds.

?Passive operationNo drivers, software or external electronics are involved.

Compatibility reminder: Both ends are 6-pin PCIe power connectors. This extension does not convert to 8-pin and does not increase the PSU power capacity.

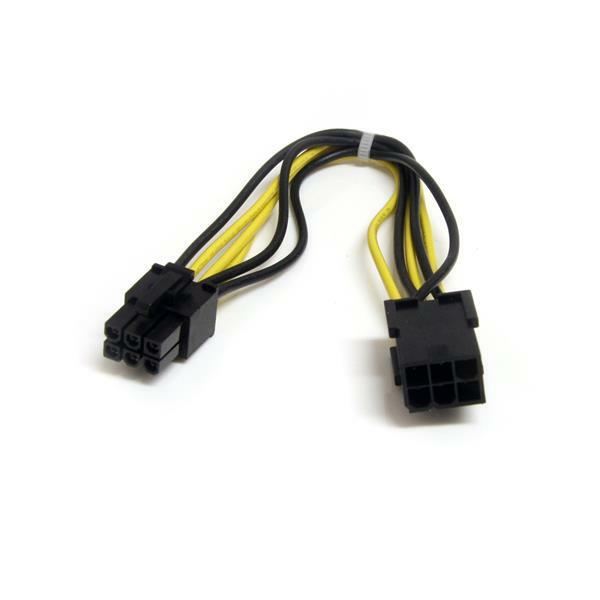

StarTech 8in 6 pin PCI Express Power Extension Cable - PCIEPOWEXT product image

Technical specifications

PCIEPOWEXT specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	Lifetime
Connectors
Connector A	1 - PCI Express Power (6 pin, v1.x) Female
Connector B	1 - PCI Express Power (6 pin, v1.x) Male
Physical Characteristics
Colour	Black
Cable Length	203.2mm (8in)
Wire Gauge	18 AWG
Product Dimensions	20.3 x 1.4 x 1.4cm
Product Weight	16g
Packaging Information
Package Dimensions	10.9 x 12.8 x 2.3cm
Shipping Weight	22g
Package Quantity	1
What's in the Box
Included	1 - 8in PCI Express power extension cable

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	PCIEPOWEXT
Barcode #	65030842778
Brand	STARTECH
Shipping Weight	0.0200kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.110m
Shipping Cubic	0.000550000m3

Manufacturer warranty

Lifetime

This Australian-version product is supplied by DeviceDeal and is covered by the official StarTech.com limited lifetime manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
