StarTech.com · LP4PCIEX8ADP

StarTech LP4PCIEX8ADP 6in Dual-LP4 to 8-Pin PCIe Power Adapter

6in Dual-LP4 to 8-Pin PCIe Power Adapter designed for professional IT, electronics, security or workstation use.

Quick answer: LP4PCIEX8ADP converts two LP4 power connectors from an ATX power supply into one 8-pin PCI Express power connector.

Best forInstalling a compatible PCIe graphics card when the existing power supply has two available LP4 connectors but no 8-pin PCIe lead.

Check before orderingRequires two free 4-pin LP4 power connectors and a graphics card that uses one 8-pin PCIe power connection.

Answers before you buy

Frequently asked questions

What is StarTech LP4PCIEX8ADP?

It is a internal graphics-card power adapter that converts two LP4 power connectors from an ATX power supply into one 8-pin PCI Express power connector.

Which connections or mounting method are provided?

Two LP4 4-pin power inputs to one PCI Express 8-pin v2.x output

What performance is specified?

Passive internal power conversion over a fixed 152.4mm / 6in cable

How is the product constructed?

Black 18AWG internal power cable with straight connectors

How many LP4 connectors are required?

Two available 4-pin LP4 connectors from the existing ATX power supply are required.

Which PCIe connector does it provide?

It provides one 8-pin PCI Express power connector specified as version 2.x.

What should be checked before ordering?

Requires two free 4-pin LP4 power connectors and a graphics card that uses one 8-pin PCIe power connection.

What warranty applies?

LP4PCIEX8ADP carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(LP4PCIEX8ADP)

Features & highlights

Why choose LP4PCIEX8ADP?

?Purpose-built designTwo LP4 4-pin power inputs to one PCI Express 8-pin v2.x output

?Specified performancePassive internal power conversion over a fixed 152.4mm / 6in cable

?Professional constructionBlack 18AWG internal power cable with straight connectors

?Key capabilityAvoids replacing a suitable existing power supply solely to add an 8-pin PCIe connector.

?Deployment advantageSimple passive design requires no drivers or software.

?Order with confidenceRequires two free 4-pin LP4 power connectors and a graphics card that uses one 8-pin PCIe power connection.

Compatibility reminder: Requires two free 4-pin LP4 power connectors and a graphics card that uses one 8-pin PCIe power connection.

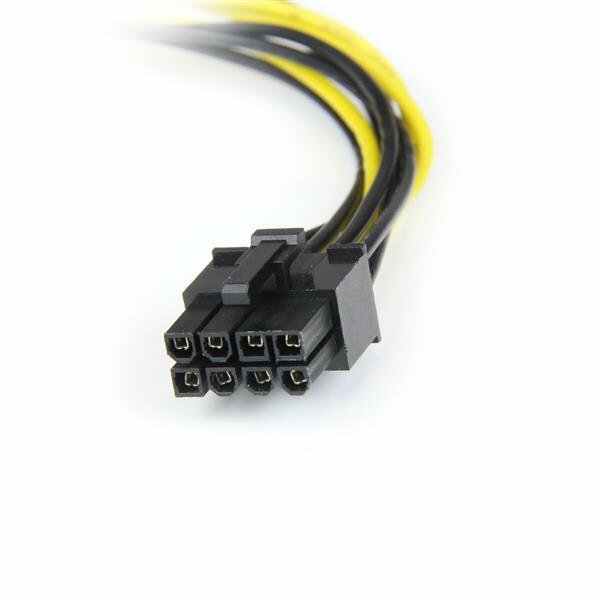

StarTech LP4PCIEX8ADP 6in Dual-LP4 to 8-Pin PCIe Power Adapter product image

Technical specifications

LP4PCIEX8ADP specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Connectors
Connector A	2 × LP4 4-pin large-drive power
Connector B	1 × PCI Express power 8-pin, v2.x
Requirements
System Requirement	Two LP4 connectors from the ATX power supply and a video card using an 8-pin PCIe power connector
Physical Characteristics
Colour	Black
Wire Gauge	18AWG
Cable Length	152.4mm / 6in
Product Dimensions	152 × 25 × 15mm
Product Weight	19g
Packaging Information
Package Dimensions	127 × 127 × 21mm
Package Weight	22g
What's in the Box
Included	6in LP4-to-8-pin PCIe video-card power adapter
