StarTech 12in 4 Pin LP4 to Dual Latching SATA Y Splitter - PYO2LP4LSATA
Model # PYO2LP4LSATA
-
SKU: PYO2LP4LSATA
- Pick Up Available
- Australian Warranty
- Checkout Securely

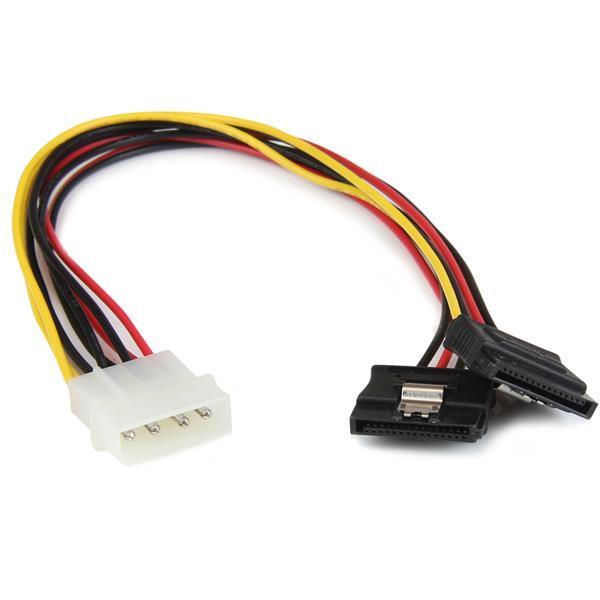

LP4 to dual latching SATA power splitter
A 12-inch internal power splitter that converts one LP4 (4-pin Molex-type) power connection into two latching SATA 15-pin power receptacles.
What to know before buying
It has one 4-pin LP4 male connector and two SATA 15-pin latching power receptacles. The cable is specified with 20 AWG wire.
Australian version with official StarTech.com warranty
This is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com lifetime manufacturer warranty in Australia. Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is the StarTech PYO2LP4LSATA?
Which connectors does it provide?
How long is the cable?
What is the benefit of the latching SATA connectors?
What devices can it power?
What wire gauge is specified?
What is included?
What warranty applies in Australia?
(PYO2LP4LSATA)
Features and highlights
Power two SATA devices
Splits one LP4 power connection from a computer power supply into two SATA power receptacles.
Latching SATA connectors
Two latching SATA 15-pin receptacles help reduce accidental disconnection from compatible drives.
12-inch reach
Provides 304.8 mm (12 in) of cable length for positioning drives inside the system.
Broad SATA-device use
Official product information supports use with Serial ATA hard drives, CD-RW/DVD-ROM drives and other compatible SATA-powered devices.
20 AWG construction
The supplied specification lists 20 AWG wire gauge.
Lifetime warranty
Covered by the official StarTech.com lifetime manufacturer warranty in Australia.
Key highlights
- One LP4 male to two SATA power receptacles
- Latching SATA connectors
- 304.8 mm (12 in) cable length
- 20 AWG wire gauge
- For compatible SATA-powered devices
Specifications
StarTech PYO2LP4LSATA specifications compiled from the supplied DeviceDeal product information and exact-product official StarTech.com sources.
Connector(s)

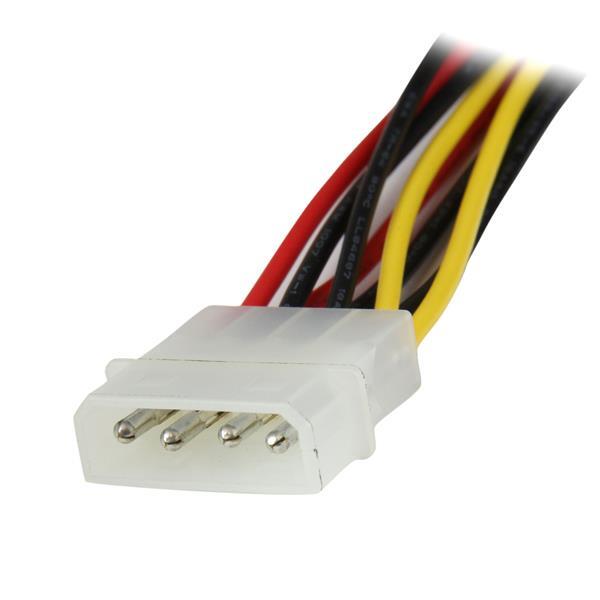

| Connector A | 1 × LP4 (4-pin; Molex-type large drive power) Male |
|---|---|

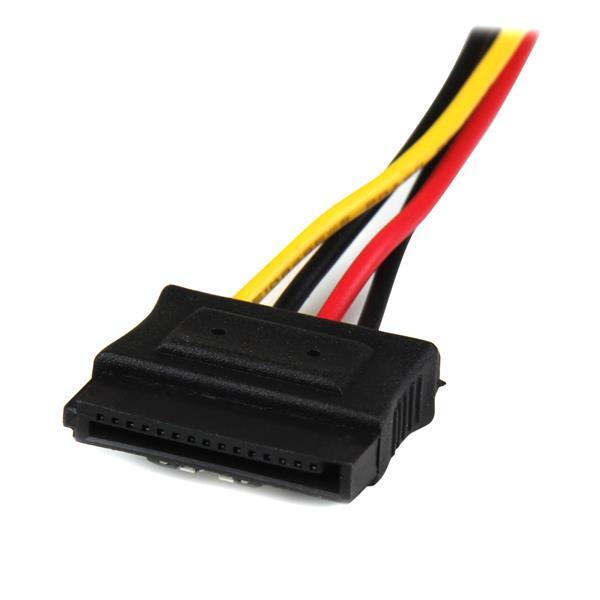

| Connector B | 2 × SATA Power (15-pin) Receptacle, Latching |
Physical Characteristics
| Colour | Black & White |
|---|---|
| Wire gauge | 20 AWG |
| Cable length | 304.8 mm (12 in) |
| Product length | 304.8 mm (12 in) |
| Product weight | 28 g (1 oz) |
Environmental
| Operating temperature | -25°C to 80°C (-13°F to 176°F) |
|---|---|
| Storage temperature | -25°C to 80°C (-13°F to 176°F) |
| Humidity | 4565% |
Packaging
| Package quantity | 1 |
|---|---|
| Package length | 14.2 cm (5.6 in) |
| Package width | 12.6 cm (5.0 in) |
| Package height | 1.5 cm (0.6 in) |
| Shipping weight | 30 g (1.1 oz) |
In the Box
| Included | 12in LP4 to 2x Latching SATA Power Y Cable Adapter |
|---|
Warranty
| Warranty | Lifetime |
|---|
| SKU | PYO2LP4LSATA |
| Barcode # | 65030848923 |
| Brand | STARTECH |
| Shipping Weight | 0.0300kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.000750000m3 |
StarTech.com warranty in Australia
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
