StarTech.com | PYO2LP4SATA

LP4 to dual SATA power Y cable

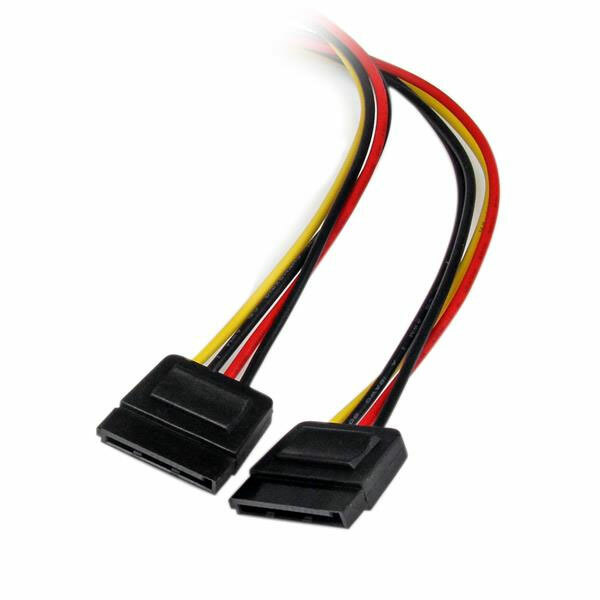

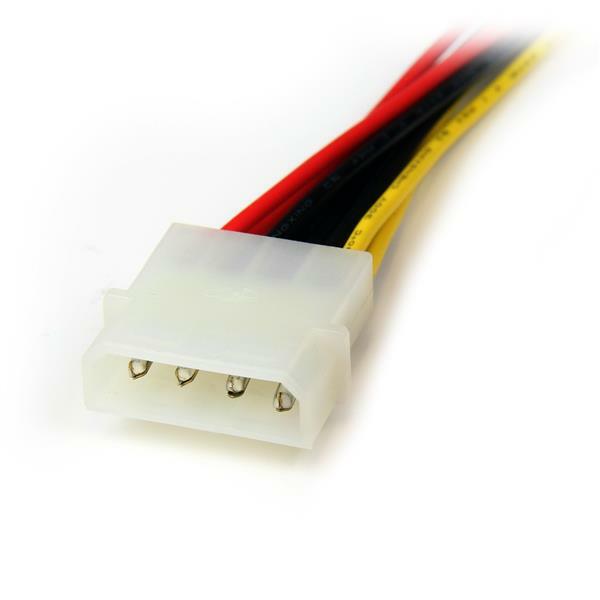

A 12-inch internal Y cable that converts one LP4 male power connection into two SATA 15-pin power receptacles for compatible SATA devices.

1x LP4 male2x SATA12 in / 30.5 cm18 AWG

StarTech PYO2LP4SATA LP4 to dual SATA power Y cable

Two SATA power outputsConverts a single LP4 power connection into two SATA power receptacles.

12-inch cableProvides approximately 30.5 cm (12 in) of internal cable length.

Internal upgrade flexibilityUseful when a power supply has an available LP4 connector but additional compatible SATA power connections are required.

Straight SATA receptaclesProvides two standard SATA 15-pin power receptacles without the latching feature of the PYO2LP4LSATA model.

What to know before buying

It has one LP4 male connector and two SATA 15-pin power receptacles. The official drawing specifies 18 AWG conductors.

Australian version with official StarTech.com warranty

This is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com lifetime manufacturer warranty in Australia. Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech PYO2LP4SATA?

It is a 12-inch internal power Y cable that converts one LP4 power connection into two SATA power receptacles.

Which connectors does it use?

It has one LP4 male connector and two SATA 15-pin power receptacles.

How long is the cable?

The cable is approximately 30.5 cm (12 inches) long.

What is it used for?

It can add two compatible SATA power connections when an LP4 power connector is available from the computer power supply.

Are the SATA outputs latching?

No latching feature is specified for PYO2LP4SATA; the separate PYO2LP4LSATA model is the latching version.

What wire gauge is shown by the official product drawing?

The official drawing specifies 18 AWG conductors.

What is included?

One 12-inch LP4 to two SATA power Y cable adapter is included.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

(PYO2LP4SATA)

Features and highlights

Two SATA power outputs

Converts a single LP4 power connection into two SATA power receptacles.

12-inch cable

Provides approximately 30.5 cm (12 in) of internal cable length.

Internal upgrade flexibility

Useful when a power supply has an available LP4 connector but additional compatible SATA power connections are required.

Straight SATA receptacles

Provides two standard SATA 15-pin power receptacles without the latching feature of the PYO2LP4LSATA model.

18 AWG conductors

The official product drawing specifies 18 AWG conductors.

Lifetime warranty

Covered by the official StarTech.com lifetime manufacturer warranty in Australia.

Key highlights

One LP4 male to two SATA power receptacles
30.5 cm / 12 in length
18 AWG conductors
Internal PC power adapter
Lifetime StarTech.com warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

StarTech PYO2LP4SATA specifications compiled from the supplied DeviceDeal product information and exact-product official StarTech.com sources.

Connector(s)

Connector A	1 × LP4 (4-pin; Molex-type large drive power) Male
Connector B	2 × SATA Power (15-pin) Receptacle

Physical Characteristics

Cable length	12 in (30.5 cm)
Wire gauge	18 AWG
Colour	Black / Yellow cabling with black connectors

In the Box

Included	12in LP4 to 2x SATA Power Y Cable Adapter

Warranty

Warranty	Lifetime

SKU	PYO2LP4SATA
Barcode #	65030809207
Brand	Startech
Shipping Weight	0.0400kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.190m
Shipping Cubic	0.000950000m3
