StarTech Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand USB3SDOCKDD
Model # USB3SDOCKDD
-
SKU: USB3SDOCKDD
- Pick Up Available
- Australian Warranty
- Checkout Securely

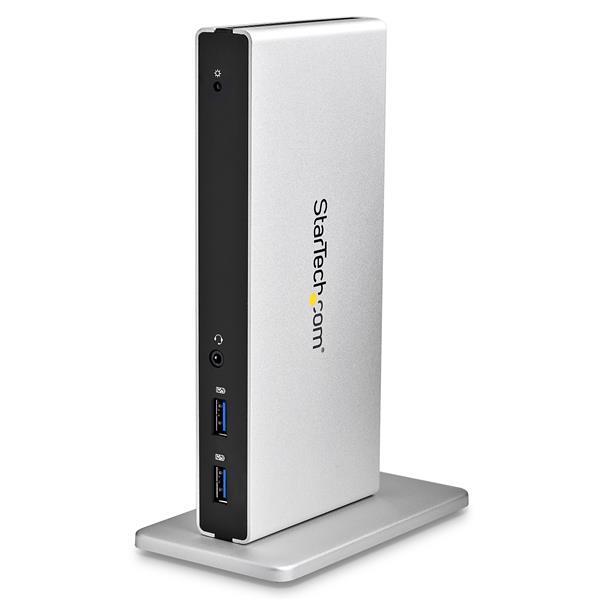

This dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.
Display Flexibility
The dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048x1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.
Powerful Connections and Fast Device Charging
Transform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need.
Save Desktop Space
You can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.
The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.
(USB3SDOCKDD)
| Warranty Information | ||
|---|---|---|
| Warranty | 3 Years | |
| Hardware | ||
| 4K Support | No | |
| Bus Type | USB 3.0 | |
| Chipset ID | DisplayLink - DL-3900 Genesys Logic - GL3520 | |
| Displays Supported | 2 | |
| Fast-Charge Port(s) | Yes | |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB Battery Charging Specification Rev. 1.2 USB 3.0 - Hub ports support USB 2.0/1.1 backward-compatibility | |
| Performance | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| Full Duplex Support | Yes | |
| Maximum Analog Resolutions | 2048x1152 (VGA) | |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) | |
| Maximum Digital Resolutions | 2048x1152 (Dual-Link DVI/HDMI) Lower resolutions are also supported. | |
| Type and Rate | USB 3.0 - 5 Gbit/s | |
| UASP Support | Yes | |
| Connector(s) | ||

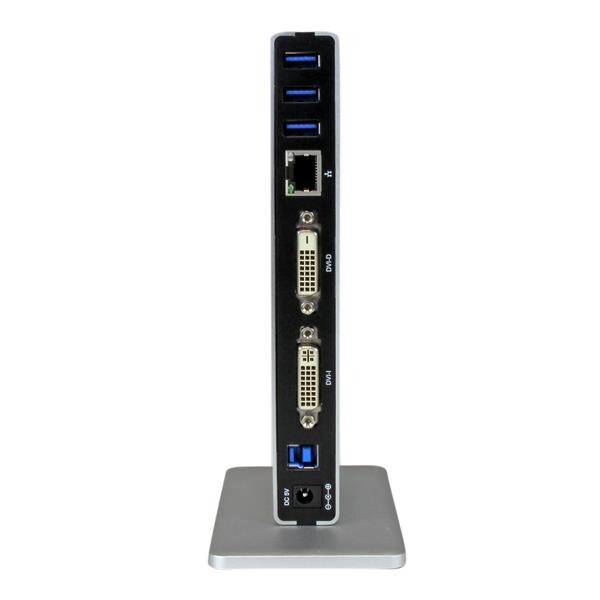

| Connector Type(s) | 1 - DVI-D (25 pin) Female | |
| 1 - DVI-I (29 pin) Female | ||
| 2 - USB 3.0 A (Fast-Charge, 9 pin) Female | ||
| 3 - USB Type-A (9 pin) USB 3.0 Female | ||
| 1 - RJ-45 Female | ||
| 1 - 3.5 mm Mini-Jack (4 Position) Female | ||
| 1 - USB Type-B (9 pin) USB 3.0 Female | ||
| Software | ||
| OS Compatibility | Windows¨ XP SP3 (32-bit), Vista, 7, 8, 8.1, 10 macOS 10.6 - 10.12, 10.14 Chrome OSª v55+ | |
| Special Notes / Requirements | ||
| Note | HDMI and VGA adapters included VGA adapter can only be used on the DVI-I (29-pin) port The DVI-I connector supports DVI-I signaling (digital and analog) | |
| System and Cable Requirements | USB 3.0 port interface and USB 3.0 cable to connect the Laptop Docking Station to a host computer (USB 3.0 host cable included) | |
| Indicators | ||
| LED Indicators | 1 - Power | |
| Power | ||
| Center Tip Polarity | Positive | |
| Input Current | 0.8 A | |
| Input Voltage | 100 - 240 AC | |
| Output Current | 4 A | |
| Output Voltage | 5 DC | |
| Plug Type | M | |
| Power Consumption (In Watts) | 20 | |
| Power Source | AC Adapter Included | |
| Environmental | ||
| Humidity | 5~85% RH | |
| Operating Temperature | 0¡C to 50¡C (32¡F to 122¡F) | |
| Storage Temperature | -20¡C to 60¡C (-4¡F to 140¡F) | |
| Physical Characteristics | ||
| Cable Length | 39.4 in [1000 mm] | |
| Color | Black & Silver | |
| Enclosure Type | Aluminum and Plastic | |

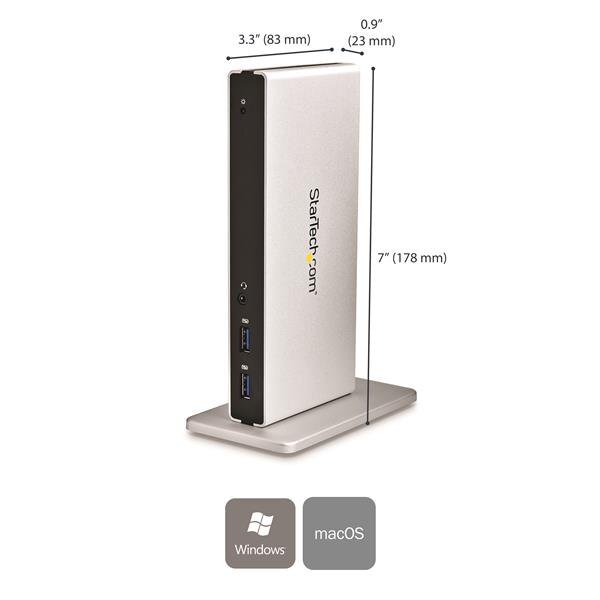

| Product Height | 7 in [17.8 cm] | |
| Product Length | 3.3 in [83 mm] | |
| Product Width | 0.9 in [23 mm] | |
| Weight of Product | 10.1 oz [285 g] | |
| Packaging Information | ||
| Package Height | 3.7 in [95 mm] | |
| Package Length | 7.3 in [18.6 cm] | |
| Package Width | 10 in [25.5 cm] | |
| Shipping (Package) Weight | 2.2 lb [1 kg] | |
| What's in the Box | ||
| Included in Package | 1 - USB 3.0 Laptop Docking Station | |
| 1 - 1m USB 3.0 Cable | ||
| 4 - Rubber Feet | ||
| 1 - Stand | ||
| 2 - Stand Screws | ||
| 1 - Screwdriver | ||
| 1 - DVI to VGA Adapter | ||
| 1 - DVI to HDMI Adapter | ||
| 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ) | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| SKU | USB3SDOCKDD |
| Barcode # | 65030858267 |
| Brand | STARTECH |
| Shipping Weight | 0.9900kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.080m |
| Shipping Length | 0.225m |
| Shipping Cubic | 0.002880000m3 |
