Synology used CES 2023 to launch their latest small NAS, the DS723+. The 2-bay Synology DS723+ more or less takes the DS923+ we just reviewed and shrinks it to a smaller starting footprint.

The DS723+ supports an optional 5-bay expansion unit, add-on 10GbE, and is the second Synology NAS to support NVMe storage pools, though it’s still limited to Synology SSDs only. The DS723+ uses the AMD Ryzen R1600 dual-core (4-thread), processor and comes with 2GB DRAM, expandable to 32GB (DS923+ starts with 4GB).

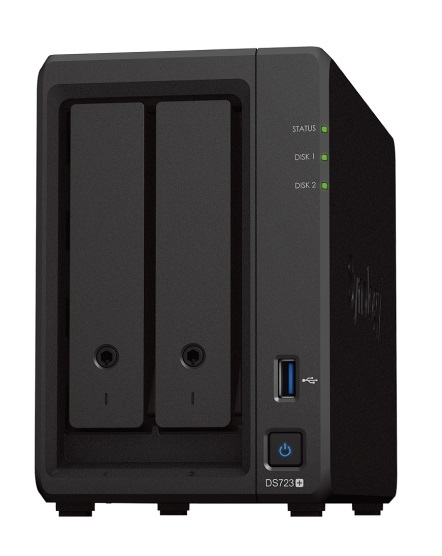

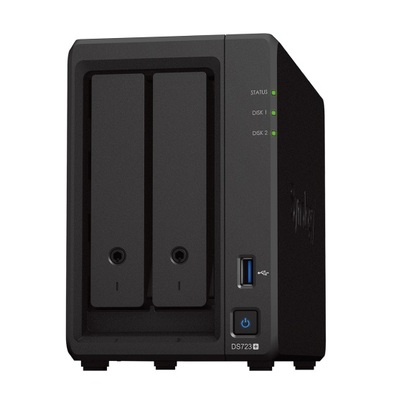

Synology DS723+

The DS723+ is powered by the Synology DiskStation Manager (DSM) operating system, which provides a flexible all-in-one solution for data management, synchronization, backup, and surveillance. It offers reasonable performance, with sequential read and write speeds of up to 471/225 MB/s. It also comes with two Gigabit RJ-45 ports, which can be bonded using Link Aggregation for automatic network failover and load balancing. As noted, there’s an optional 10GbE slot that uses Synology’s mini card.

In addition, the DS723+ comes with a range of data protection and integrity features, including snapshots, file, and folder-level data restoration, a flexible storage quota system, and file self-healing. It also offers a range of backup solutions, including Active Backup Suite, Snapshot Replication, Hyper Backup, and C2 Storage for Hyper Backup.

Synology DS723+ details

DS723PLUS

(DS723PLUS)


CPU	CPU Model	AMD Ryzen R1600
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	2-core 2.6 (base) / 3.1 (turbo) GHz
	Hardware Encryption Engine (AES-NI)
Memory	System Memory	2 GB DDR4 ECC
	Memory Module Pre-installed	2 GB (2 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage	Drive Bays	2
	Maximum Drive Bays with Expansion Unit	7 (DX517 x 1)
	M.2 Drive Slots	2 (NVMe)
	Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe SSD
	Hot Swappable Drive*
	Notes	The hot swappable drive feature is not supported by M.2 SSD slots. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports	RJ-45 1GbE LAN Port*	2 (with Link Aggregation / Failover support)
	USB 3.2 Gen 1 Port*	1
	eSATA Port	1
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe	PCIe Expansion	1 x Gen3 x2 network upgrade slot
File System
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT

Appearance	Size (Height x Width x Depth)	166 mm x 106 mm x 223 mm
	Weight	1.51 kg

Others	System Fan	92 mm x 92 mm x 1 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Brightness Adjustable Front LED Indicators
	Power Recovery
	Noise Level*	20.7 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	65 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	21.07 W (Access) 8.62 W (HDD Hibernation)
	British Thermal Unit	71.85 BTU/hr (Access) 29.39 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC

Warranty	3-year hardware warranty, extendable to 5 years with Extended Warranty Plus
	Notes	Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment	RoHS Compliant

Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1

Optional Accessories	DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G Expansion Units: DX517 3.5" SATA HDD: HAT5300 2.5" SATA SSD: SAT5210 M.2 2280 NVMe SSD: SNV3410 10GbE Network Upgrade Module: E10G22-T1-Mini VisualStation: VS360HD Surveillance Device License Pack



Storage Management	Maximum Single Volume Size*	108 TB
	Maximum Internal Volume Number	64
	M.2 SSD Storage Pool Support*
	SSD Read / Write Cache (White Paper)
	SSD TRIM
	Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 (with Expansion Unit) RAID 6 (with Expansion Unit) RAID 10 (with Expansion Unit)
	RAID Migration	Basic to RAID 1 Basic to RAID 5 (with Expansion Unit) RAID 1 to RAID 5 (with Expansion Unit) RAID 5 to RAID 6 (with Expansion Unit)
	Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 (with Expansion Unit) RAID 6 (with Expansion Unit) RAID 10 (with Expansion Unit)
	Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD (with Expansion Unit) RAID 5 (with Expansion Unit) RAID 6 (with Expansion Unit)
	Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 (with Expansion Unit) RAID 5 (with Expansion Unit) RAID 6 (with Expansion Unit) RAID 10 (with Expansion Unit)
	Notes	Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. Creating M.2 storage pools requires the use of Synology-verified SSDs, which are rigorously tested under extreme temperature conditions. Thermal parameters for SSDs and NAS units are fine-tuned to ensure optimal management of thermal conditions under I/O-intensive environments. (Learn more) Actual maximum storage pool and volume sizes vary depending on drives used, the number of drive bays available, and the RAID configuration. Each internal volume (may consist of multiple drives) is expandable up to 108TB.

File Services	File Protocol	SMB/AFP/NFS/FTP/WebDAV
	Maximum Concurrent SMB/AFP/FTP Connections	500
	Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	2,000
	Windows Access Control List (ACL) Integration
	NFS Kerberos Authentication
	Notes	Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.

Account & Shared Folder	Maximum Local User Accounts	2,048
	Maximum Local Groups	256
	Maximum Shared Folder	512
	Maximum Shared Folder Sync Tasks	8
Hybrid Share
Hybrid Share	Hybrid Share Folder Number	10
High Availability
High Availability	Synology High Availability
Log Center
Log Center
Log Center	Syslog Events per Second	800
Virtualization
Virtualization	VMware vSphere with VAAI
	Windows Server 2016
	Windows Server 2019
	Citrix Ready
	OpenStack

General Specifications	Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Google Chrome Firefox Microsoft Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
	Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)
Antivirus by McAfee (Trial)

Synology Chat	Maximum Number of Concurrent Users	100
	Notes	Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. When applicable, tested systems are configured with maximum memory and set to allow the maximum number of connections.


Download Station	Maximum Concurrent Download Tasks	80
SAN Manager
SAN Manager	Maximum iSCSI Target Number	128
	Maximum LUN	256
	LUN Clone/Snapshot, Windows ODX

Synology MailPlus / MailPlus Server
Synology MailPlus / MailPlus Server	Free Email Accounts	5 (Licenses required for additional accounts)
	Maximum Number of Concurrent Users	100
	Maximum Server Performance	1,224,000 emails per day, approx. 37GB
	Notes	Models with 2 bays and dual M.2 drive slots were installed with two SSDs for SSD cache. For tested models with expandable memory, the maximum amount of RAM was installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).

Media Server	DLNA Compliance
Synology Photos	Facial Recognition
Snapshot Replication	Maximum Snapshots per Shared Folder	1,024
	Maximum of System Snapshots	65,536
Surveillance Station	Maximum IP cam (Licenses required)	40 (including 2 Free License) (see all supported IP cameras)
	Total FPS (H.264)	1200 FPS @ 720p (1280x720) 800 FPS @ 1080p (1920x1080) 350 FPS @ 3M (2048x1536) 280 FPS @ 5M (2591x1944) 170 FPS @ 4K (3840x2160)
	Total FPS (H.265)	1200 FPS @ 720p (1280x720) 1200 FPS @ 1080p (1920x1080) 600 FPS @ 3M (2048x1536) 480 FPS @ 5M (2591x1944) 200 FPS @ 4K (3840x2160)
	Notes	Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup. Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
Synology Drive	Recommended Number of Concurrent Sync Clients	350 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Recommended Number of Hosted Files	5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. For tested models with expandable memory, the maximum amount of RAM was installed. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office	Maximum Users	1,200
	Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager	Recommended Virtual Machine Instances	4 (Learn more)
	Recommended Virtual DSM Number (Licenses required)	4 (including 1 Free License)
	Notes	The specifications vary depending on system configuration and memory size.
VPN Server	Maximum Connections	40
