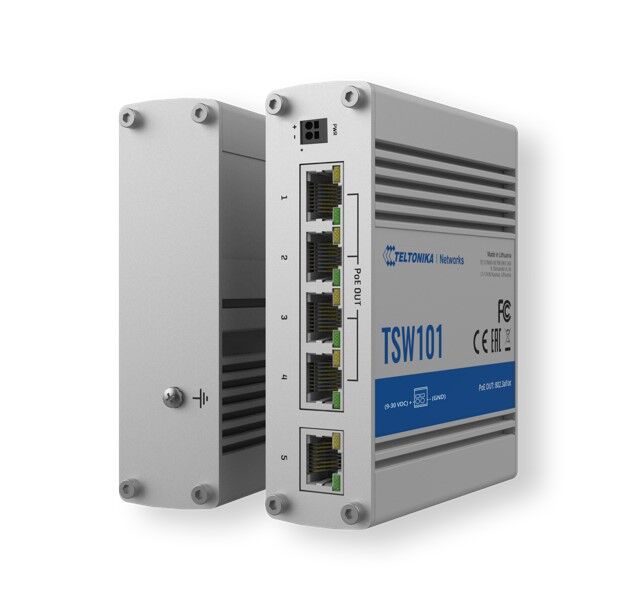

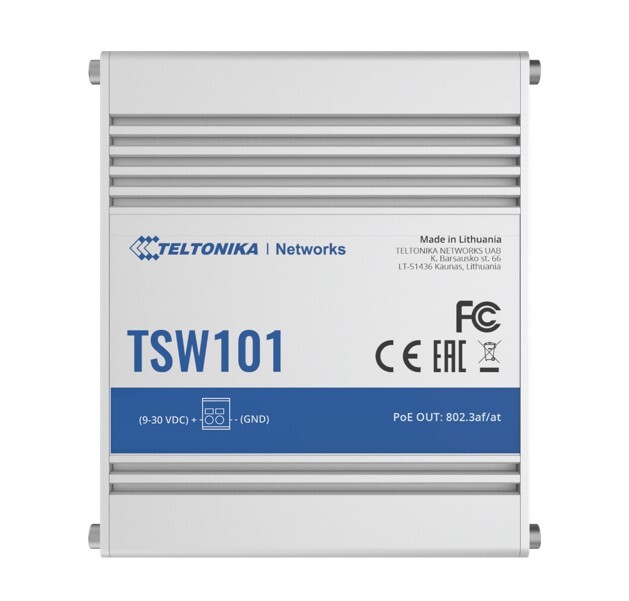

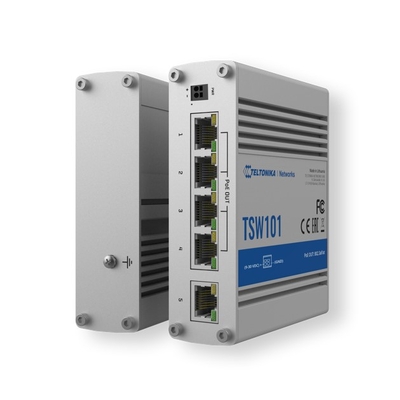

Teltonika Automotive POE+ Switch, 4x PoE Ports, 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps, PSU excluded
Model # TSW101000000
-
SKU: TSW101000000
$128.00
You Might Want To Add
- Pick Up Available
- Australian Warranty
- Checkout Securely
TSW101
AUTOMOTIVE POE+ SWITCH
The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.
| PLUG AND PLAY No configuration needed | POE+ 4 x PoE+ ports with 802.3af and 802.3at support | GIGABIT ETHERNET 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps | INDUSTRIAL DESIGN Rugged aluminum housing |
For More Case Studies Click Here ...
(TSW101000000)
| Category | Feature | Description |
|---|---|---|
| Ethernet | ETH | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az | |
| INDUSTRIAL PROTOCOLS | Profinet | Profinet Class A conformance (available with optional order code) |
| POE OUT | PoE ports | Port 1-4 |
| PoE standards | 802.3af and 802.3at Alternative A | |
| PoE Max Power per Port (at PSE) | 30 W | |
| Total PoE Power Budget (at PSE) | 60 W | |
| Maximum Ethernet cable length | 100 m | |
| Performance Specifications | Bandwidth (Non-blocking) | 10 Gbps |
| Packer buffer | 128 KB | |
| MAC address table size | 2K entries | |
| Jumbo frame support | 9216 bytes | |
| Power | Connector | 2-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC | |
| PoE-out input voltage range | 9 – 30 VDC | |
| Power consumption | Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W | |
| PSU | 12 V or 24 V car battery-powered. No additional PSU is required. | |

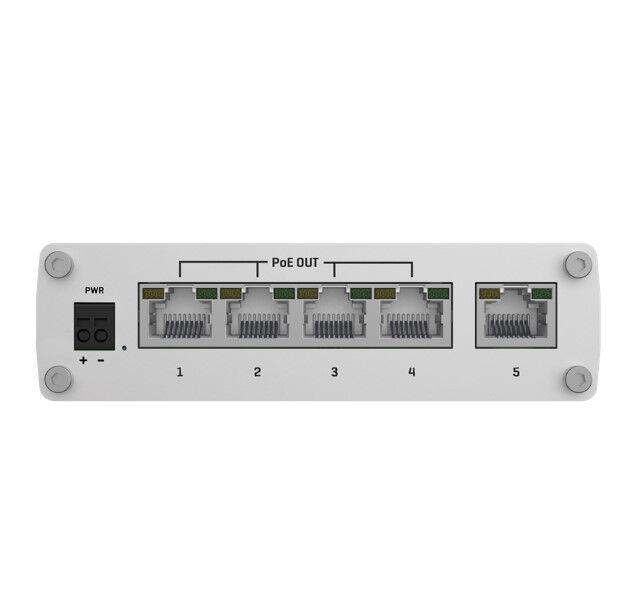

| Physical Interfaces | Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x ETH status LEDs | |
| Power | 1 x 2-pin industrial DC power socket | |
| Other | 1 x Grounding screw | |
| Physical Specification | Casing material | Aluminium housing |
| Dimensions (W x H x D) | 115 x 32 x 95 mm | |
| Weight | 384 g | |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) | |
| Operating Environment | Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing | |
| Ingress Protection Rating | IP30 | |
| Regulatory & Type Approvals | Regulatory | CE, REACH, RoHS, WEEETSW101 CETSW101 UKCATSW101 FCCTSW101 ICTSW101 CBTSW101 RCME-Mark |
| EMC Emissions & Immunity | Standards | EN 55032:2015 + A11:2020 + A1:2020EN 55035:2017 + A11:2020 |
| ESD | EN 61000-4-2:2009 | |
| Radiated Immunity | EN IEC 61000-4-3:2020 | |
| EFT | EN 61000-4-4:2012 | |
| Surge immunity (AC Power Line) | EN 61000-4-5:2014 + A1:2017 | |
| CS | EN 61000-4-6:2014 | |
| Safety | Standards | CE:EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017RCM: AS/NZS 62368.1:2022CB: IEC 62368-1:2018 |
| SKU | TSW101000000 |
| Barcode # | 4779051840113 |
| Brand | TELTONIKA |
| Shipping Weight | 0.4800kg |
Manufacturer Warranty: 2 Years Manufacturer Warranty
