WIFI6



Carrier Backhaul Radio

The airFiber® X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.



Engineered for Performance

Ubiquiti’s INVICTUS custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.



Deployment Flexibility

The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocketlink that uses a RocketDishRD‑5G30/RD‑5G34* antenna.



Carrier Backhaul for the World

Deploy the 2.4, 3, 4, 5 or 11 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs – up to 11 different channel sizes available for the AF-2X or AF-3X.





Optimal Operation and Channel Configuration

Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.

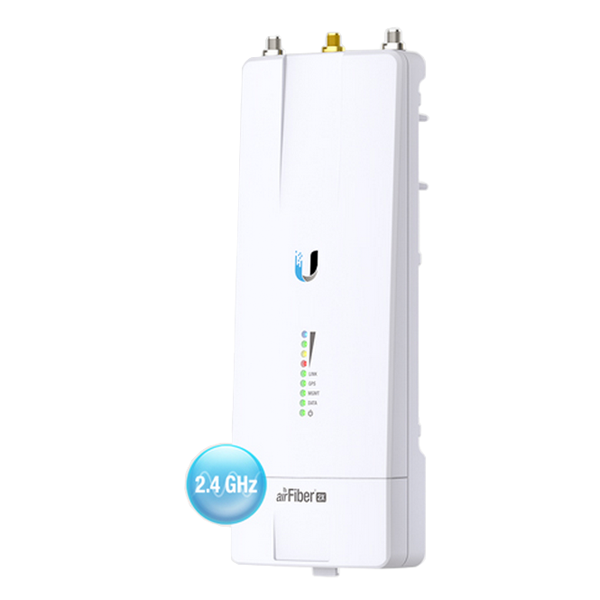

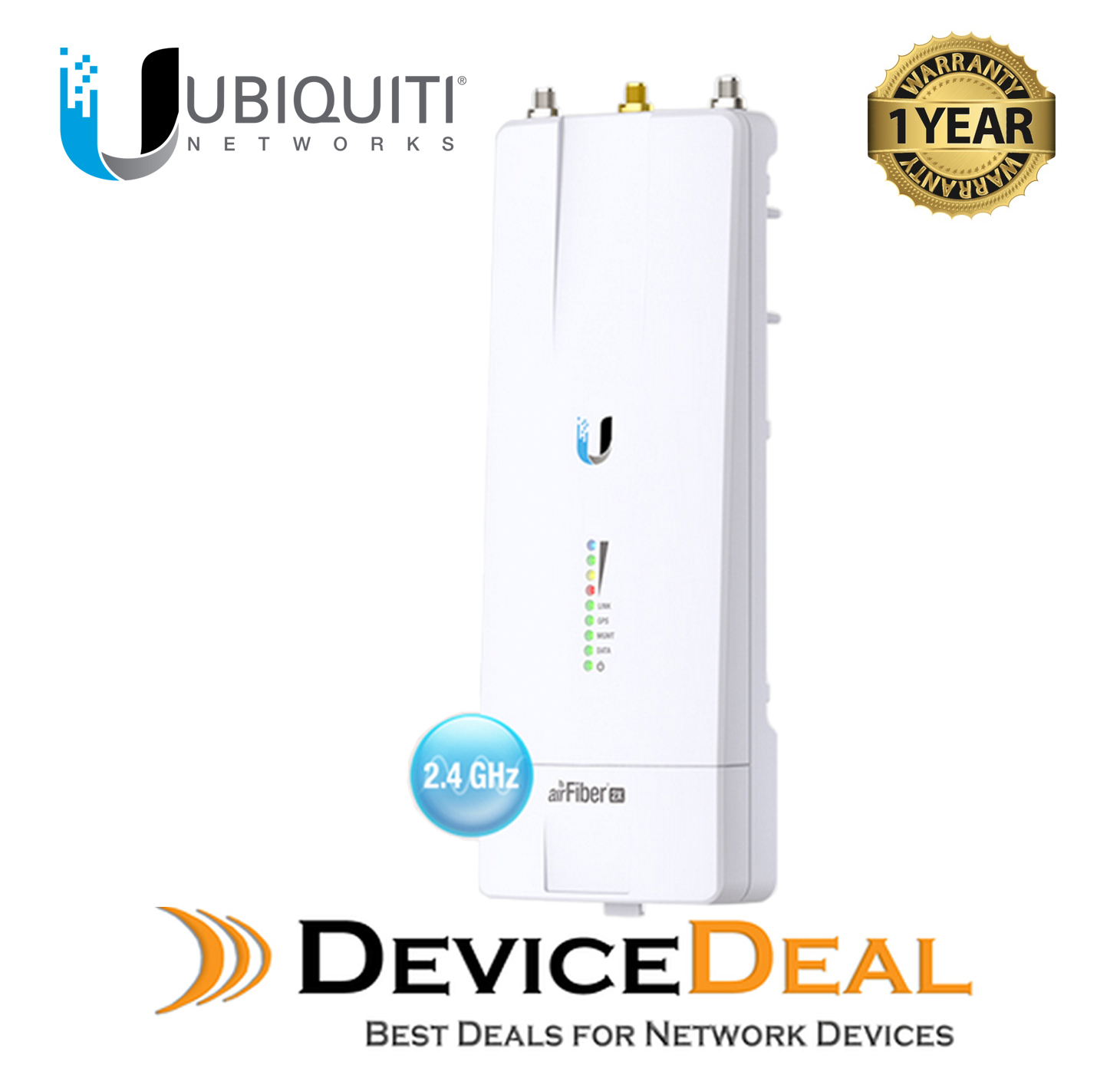

Ubiquiti Networks AF-2X 2.4GHz Carrier Backhaul Radio - Up to 500+ Mbps Real Throughput - Up to 200+ km Range - 1x 10/100/1000 Data Ethernet Port, 1x 10/100 Management Ethernet Port - 1 Year Warranty

(AF-2X)

Antenna Yes
Dimension 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
Interface Wifi
Mounting airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)
Weight 0.35 kg (0.77 lb)
Wireless frequency range 2400-2500 MHz
(Dependent on Regulatory Region)

Frequency: 2.4 GHz

Throughput: 500+ Mbps

Range: 200+ km



SKU AF-2X
Barcode # 810354023392
Brand Ubiquiti
Shipping Weight 0.5000kg
Manufacturer Warranty
1 Year Manufacturer Warranty
Manufacturer Contact Info
https://www.ubnt.com/
