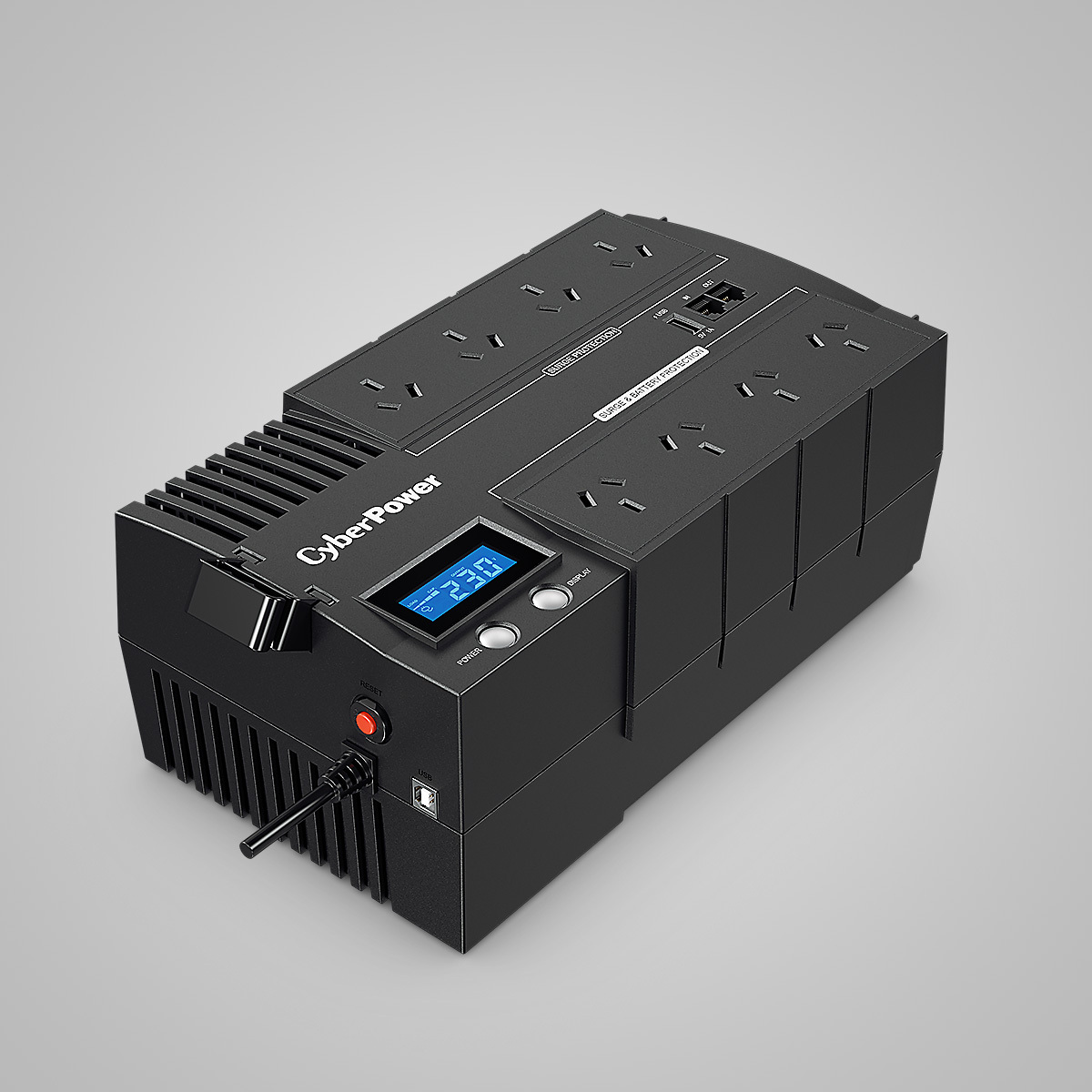

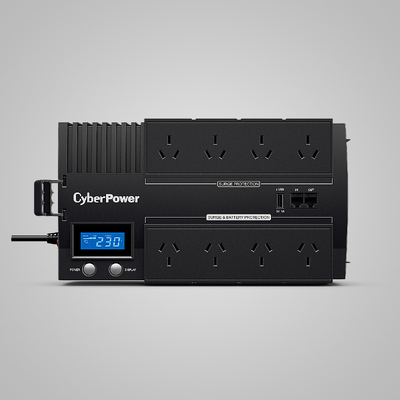

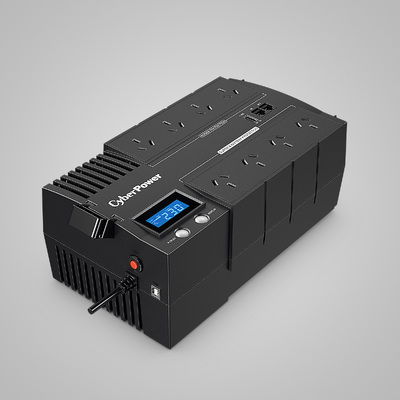

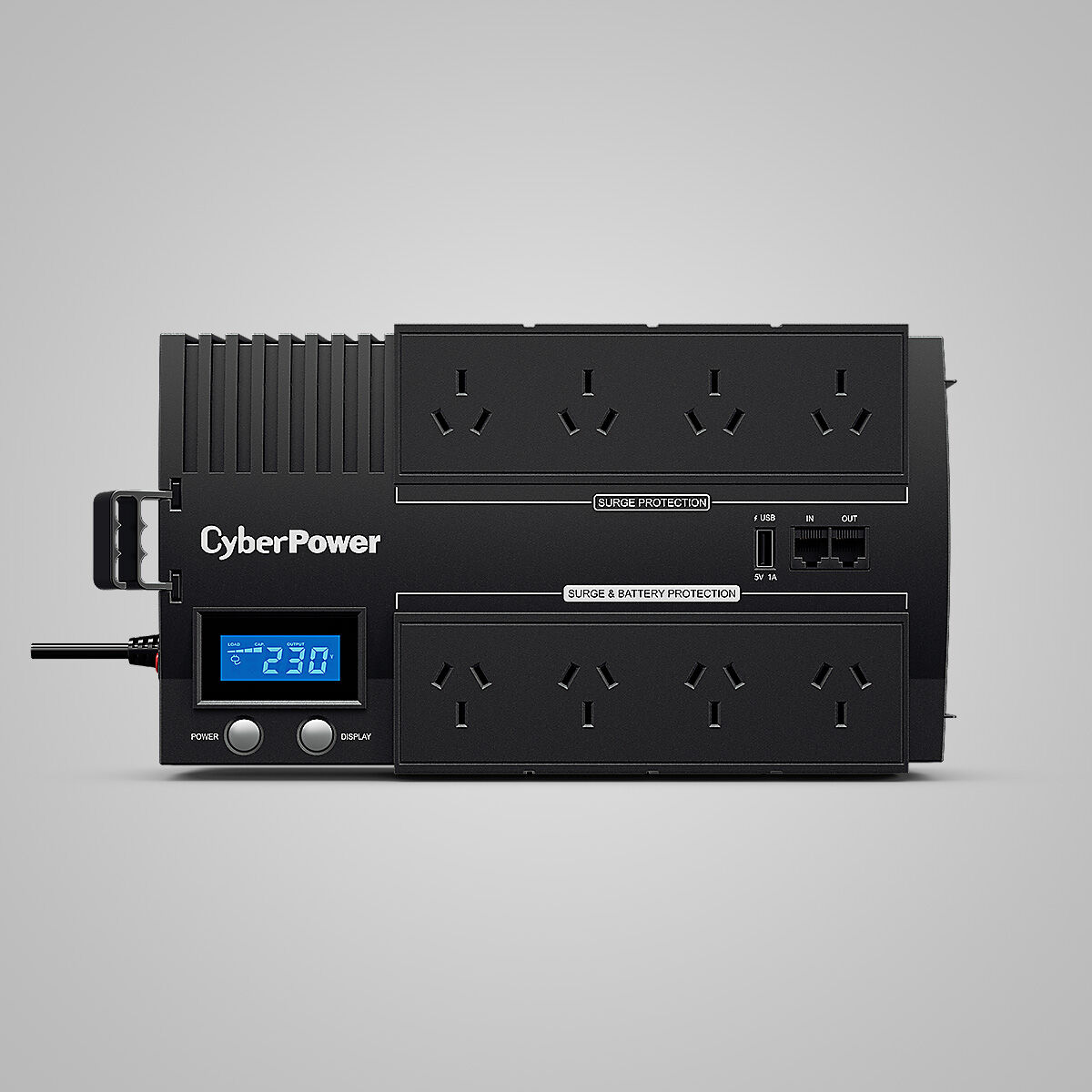

CyberPower BR850ELCD BRIC LCD 850VA / 510W 8 Output Simulated Sine Wave UPS



Key Benefits

  • For Home/ Office Application
  • Electricity Cost Savings
  • Simulated Sine Wave Output
  • Device Protection Design
  • Data Line Protection



CyberPower BR850ELCD  offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPSâ„¢ Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems.



Typical Application

  • PCs & Workstations
  • Computers & Laptops
  • SOHO Networking Devices
  • Phone/Fax/Modem
  • Video/Audio Equipment
  • NAS & Servers
  • Home Theater Systems
  • DVRs/Surveillance Systems
  • POS Systems
  • Home Desktop
  • Home Office
  • Office Desktop
  • Back Office









Flexible Mounting

Designed to maximize your work space to your advantage, this UPS allows multiple mounting options including horizontal, cabinet, and wall-mounted orientations to make the most of your limited space. The keyhole design supports wall-mounting preferences, allowing you to take advantage of vertical space.



Cable Collector

By preserving the cable line's condition helps extend the life span of the electronic device. With the support of the cable collector,

allowing the arrangement of distribution cables simpler and more effective, preventing the hassle of tangled cables

and maintaining a neat and tidy work space.







(BR850ELCD)

  • Line-interactive UPS Topology
  • Energy Saving Technology
  • Simulated Sine Wave Output
  • Automatic Voltage Regulation (AVR)
  • USB Charging Port
  • Surge and Spike Protection
  • Phone/ Fax/ Modem/ DSL/ Network Protection
  • LCD Status Display
  • PowerPanel® Management Software
  • Brick Form Factor

GENERAL

UPS Topology
Line-interactive
Energy Saving Technology
GreenPower UPSâ„¢ Bypass Technology

INPUT

Generator Compatibility
Yes
Nominal Input Voltage (Vac)
230 ± 10%
Input Voltage Range (Vac)
170 ~ 290
Input Frequency (Hz)
50 ± 5
60 ± 5
Input Frequency Detection
Auto-sensing
Rated Input Current (A)
3.86
Input Connector Type
AU 　
Power Cord Length (ft.)
5
Power Cord Length (m.)
1.5

OUTPUT

Capacity (VA)
850
Capacity (Watts)
510
On Battery Waveform
Simulated Sine Wave
On Battery Voltage(s) (Vac)
230 ± 10%
On Battery Frequency (Hz)
50 ± 1%
60 ± 1%
Automatic Voltage Regulation (AVR)
Single Boost, Single Buck
Overload Protection
Circuit Breaker
Outlets - Total (Socket)
8
Outlet Type (Socket)
AU x 8 　
Outlets - Battery & Surge Protected (Socket)
4
Outlets - Surge-Only Protected (Socket)
4
USB Charging Ports (Port)
1
USB Charging Current (A)
1
Typical Transfer Time (ms)
4

BATTERY

Runtime at Half Load (min)
8
Runtime at Full Load (min)
1
Typical Recharge Time (Hours)
8
Start On Battery
Yes
User Replaceable
Yes
Hot-Swappable
Yes
Battery Type
Sealed Lead-acid

SURGE PROTECTION & FILTERING

Surge Suppression (Joules)
125
EMI/RFI Filtration
Yes
Phone/Network Protection RJ11/RJ45 (Combo)
1-in, 1-out

MANAGEMENT & COMMUNICATIONS

LCD Panel
Yes
LCD Information Display
Power Status , Battery Status , Load Status , Other Information
LCD Setting & Control
Alarm Setting
HID Compliant USB Port (pcs)
1
Audible Alarms
Battery Mode , Low Battery , Overload , UPS Fault
Power Management Software
PowerPanel® Personal Edition

PHYSICAL

Form Factor
Brick
Enclosure Construction
Plastic
Color
Black

PHYSICAL SIZE - UPS MODULE

Dimensions (WxHxD) (in.)
6.54 x 4.65 x 11.34
Dimensions (WxHxD) (mm.)
166 x 118 x 288
Weight (lbs.)
14.33
Weight (kg.)
6.5

ENVIRONMENTAL

Operating Temperature (°F)
32 ~ 104
Operating Temperature (°C)
0 ~ 40
Operating Relative Humidity (Non-condensing) (%)
0 ~ 90
Operating Elevation (feet/meters)
0-10,000 feet (0-3,000 meters)
Storage Temperature (°F)
-4 ~ 122
Storage Temperature (°C)
-20 ~ 50
Storage Relative Humidity (Non-condensing) (%)
0 ~ 90
Storage Elevation (feet/meters)
0-10,000 feet (0-3,000 meters)
Online Thermal Dissipation (BTU/hr)
72

CERTIFICATIONS

Certifications
CE , RCM
RoHS
Yes

WARRANTY

Product Warranty Period (Year)2
Battery Warranty Period (Year)2
SKU BR850ELCD
Barcode # 4712364142345
Brand CyberPower
Shipping Weight 7.0000kg
Manufacturer Warranty
2 Years Limited Warranty
