Network Management

SNMP/HTTP Remote Monitoring

Battery Chemistry	Lead Acid
Battery Capacity	9000 mAh
Number of Batteries	1
Battery Characteristics	Sealed
DC System Voltage	480 V DC

Weight (Approximate)	330 kg
Form Factor	Tower
Height	1485 mm
Width	521 mm
Depth	847 mm

Maximum Operating Temperature	40°C
Maximum Operating Elevation	984.30 m
Maximum Storage Elevation	3 km
Storage Relative Humidity	0% - 95%
Storage Temperature	-15°C - 40°C
Sound Emission (A-Weighted)	55 dB(A)

Product Type	Double Conversion Online UPS
Manufacturer Part Number	GVSUPS10KB4HS
Manufacturer Website Address	http://www.schneider-electric.com.au
Manufacturer	Schneider Electric SA

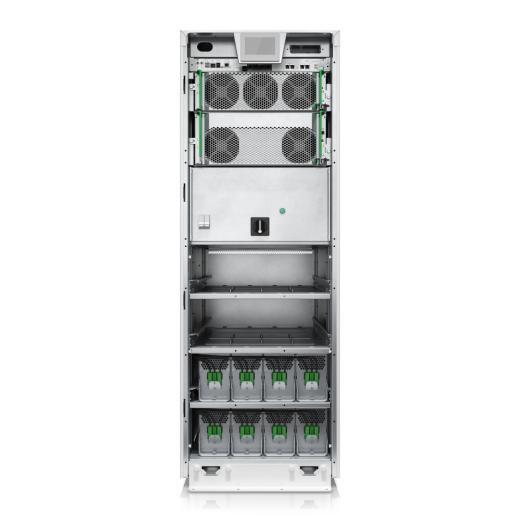

Product Name	Galaxy VS 10kVA Tower UPS
Product Line	Galaxy VS
Brand Name	APC by Schneider Electric

Application/Usage	Data Center
	Commercial
	Critical System
	Business
	Industry
Overload Protection	Yes
Plug/Connector Type	Hard Wire 4-wire (3PH + G)
	Hard Wire 5-wire (3PH + N + G)
Phase	Three Phase
Transfer Time	0 ns

Input Voltage	380 V AC
	400 V AC
	415 V AC
Output Voltage	380 V AC
	400 V AC
	415 V AC
Load Capacity	10 kVA
Waveform Type	Sine Wave
Input Voltage Range	340 V AC - 460 V AC
Output Frequency	60 Hz
Input Frequency	70 Hz
