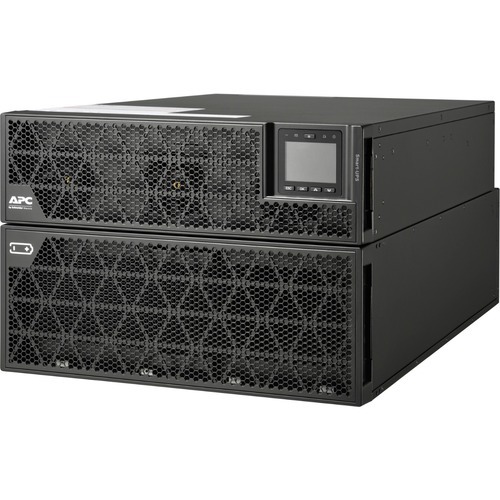

APC by Schneider Electric Smart-UPS RT Double Conversion Online UPS - 20 kVA/20 kW - Single Phase/Three Phase - 7U Rack/Tower - 4 Hour Recharge - 3.02 Minute Stand-by - 230 V AC, 380 V AC, 415 V AC Input - 230 V AC, 380 V AC, 400 V AC, 415 V AC Output High density, double-conversion on-line power protection with scalable runtime Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

(SRTG20KXLI)

Controls/Indicators

Status Indicators

Status LEDs:

Visual displays allow you to quickly interpret the status of the unit
Power Supply Status

Miscellaneous

Software Included

Powerchute Network Shutdown

Interfaces/Ports

Serial Port	Yes
EPO Port	Yes
USB (HID Compliant) Port	Yes

Management

Alarm	On Battery
	Overload
	Low Battery

Environmental Conditions

Thermal Dissipation	3821 BTU/h
Maximum Operating Temperature	40°C
Maximum Operating Elevation	3 km
Maximum Storage Elevation	15 km
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	58 dB(A)

Battery Information

Battery Energy	11754 kJ
Backup/Run Time (Half Load)	9.85 Minute
Backup/Run Time (Full Load)	3.02 Minute
Battery Characteristics	Lead Acid
Replaceable Battery	Yes
DC System Voltage	192 V DC
Typical Battery Recharge Time	4 Hour

Power Description

Input Voltage	415 V AC
	380 V AC
	230 V AC
Output Voltage	230 V AC
	400 V AC
	380 V AC
	415 V AC
Load Capacity	20 kVA/20 kW
Waveform Type	Pure Sine Wave
Input Voltage Range	160 V AC - 285 V AC
Input Voltage Range	380 V AC - 415 V AC
Output Frequency	60 Hz
Input Frequency	70 Hz

General Information

Product Type	Double Conversion Online UPS
Manufacturer Part Number	SRTG20KXLI
Manufacturer Website Address	http://www.schneider-electric.com.au
Manufacturer	Schneider Electric SA
Product Name	Smart-UPS RT 20KVA 230V
Product Line	Smart-UPS RT
Brand Name	APC by Schneider Electric

Physical Characteristics

Weight (Approximate)	142.50 kg
Form Factor	Rack/Tower
Rack Height	7U
Height	306 mm
Width	440 mm
Depth	700 mm
Product Color	Black

Technical Information

Application/Usage	Industrial
	Server
	Business Critical Application
	Medical Equipment
	Storage Device
	Switch
	Voice/Data Network
	Network
	Router
	IT System
	IT Equipment
Overload Protection	Yes
Plug/Connector Type	Hard Wire 3-wire (1P + N + E)
Plug/Connector Type	Hard Wire 5-wire (3P + N + E)
Phase	Single Phase/Three Phase

SKU	SRTG20KXLI
Barcode #	731304411901
Brand	APC
Shipping Weight	170.0000kg

Manufacturer Warranty
