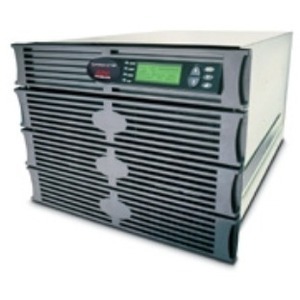

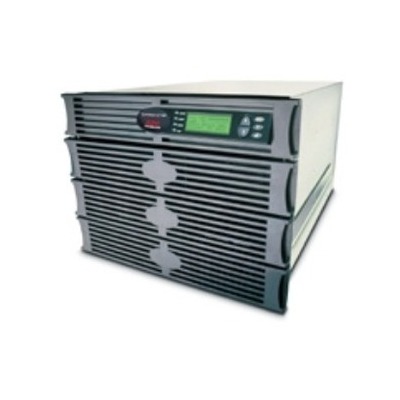

APC by Schneider Electric Symmetra Double Conversion Online UPS - 6 kVA - 8U Rack-mountable - 4 Hour Recharge - 12.60 Minute Stand-by - 220 V AC Input - 230 V AC Output - 8 x IEC 320-C13, 2 x IEC 320-C19 The first UPS with redundancy and scalability within a single chassis! Engineered to deliver the highest level of business continuity possible, Symmetra RM 2kVA uses a modular, redundant architecture that can scale power and runtime as demand increases or when higher levels of availability are required. Symmetra's integrated manageability, and hot-swappable, user replaceable power, battery, and intelligence modules enable easy, fast maintenance and serviceability. Its 2-6kVA N+1 redundant rack-optimized form factor makes Symmetra ideal for protecting critical server racks and network rooms. Typical applications include Web and other key application servers, IP based and traditional PBX voice solutions, and enterprise type network switches.

(SYH2K6RMI)

Interfaces/Ports

Modular Slots

1 x SmartSlot

Miscellaneous

Additional Information	Automatic restart of loads after UPS shutdown InfraStruXure Manager Compatible Plug-and-Play external batteries Configurable for 220, 230 or 240 nominal output voltage
Certifications & Standards	C-tick, CE, EN 50091-2, EN 60950, IRAM, VDE

Environmental Conditions

Thermal Dissipation	590 BTU/h
Maximum Operating Temperature	40°C
Sound Emission (A-Weighted)	60 dB(A)

Battery Information

Battery Chemistry	Lead Acid
Backup/Run Time (Half Load)	29.80 Minute
Backup/Run Time (Full Load)	12.60 Minute
Battery Characteristics	Spill-proof/Maintenance-free
Typical Battery Recharge Time	4 Hour

Management

Bypass Switch	Internal
Emergency Power OFF	Yes
Network Management	SNMP Manageable
Alarm	Configurable Delay
	Low Battery
	On Battery

Power Description

Input Voltage	220 V AC
Output Voltage	230 V AC
Load Capacity	6 kVA
Waveform Type	Sine Wave
Output Frequency	60 Hz
Input Frequency	60 Hz

General Information

Product Type	Double Conversion Online UPS
Manufacturer Part Number	SYH2K6RMI
Manufacturer Website Address	http://www.schneider-electric.com.au
Manufacturer	Schneider Electric SA
Product Name	Symmetra 2kVA Scalable to 6kVA Rack-mountable UPS
Product Line	Symmetra
Brand Name	APC by Schneider Electric

Physical Characteristics

Weight (Approximate)	74.55 kg
Form Factor	Rack-mountable
Rack Height	8U
Height	356 mm
Width	483 mm
Depth	730 mm
Product Color	Black

Technical Information

Dataline Protection	RJ-45
Overload Protection	Yes
Plug/Connector Type	Hard Wire 3-wire
Receptacle Type	IEC 320-C19
Receptacle Type	IEC 320-C13
Receptacle Detail	2 x IEC 320-C19
Receptacle Detail	8 x IEC 320-C13

SKU	SYH2K6RMI
Barcode #	8032976060445
Brand	APC
Shipping Weight	79.3600kg

Manufacturer Warranty
