PE0112G-AT-G

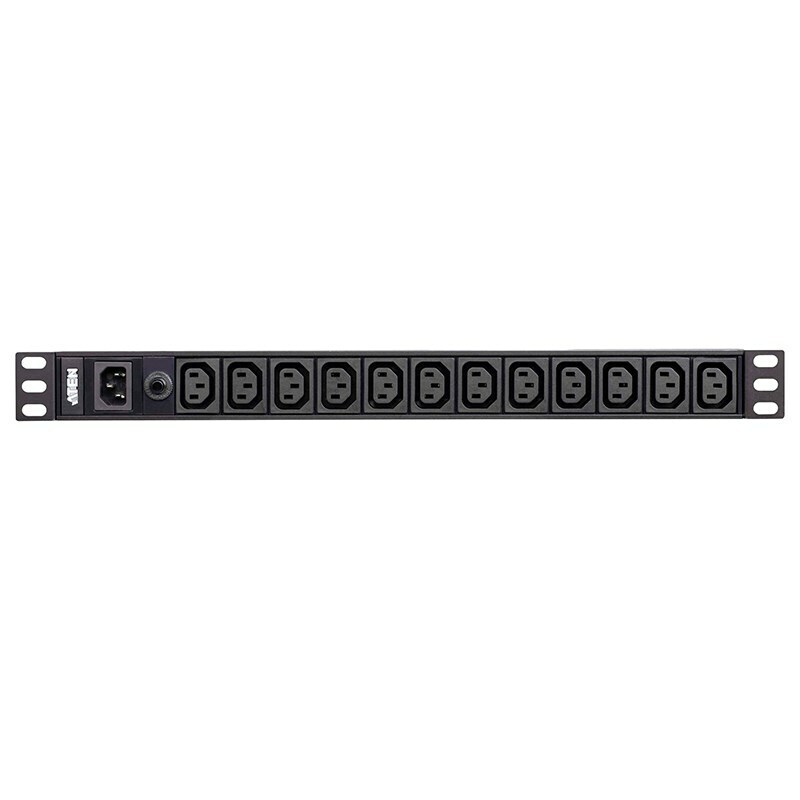

ATEN PE0112G 1U Rack Protected 12-Outlet 10A IEC PDU - Overcurrent Protection - 1U Rack Design - Aluminum Material - Input Current: 10A (Max) - Input Connection: IEC-320 C14 - Output Type: 12x IEC 320 C13 - CE Class A EMC Verification - CE, LVD - PE0112G-AT-G - 2 Years Limited Warranty

(PE0112G-AT-G)

Electrical
Nominal Input Voltage	100-120 VAC	100-240 VAC
Maximum Input Current	15A(Max) (UL de-rated 12A Max)	10A(Max)
Input Frequency	50-60 Hz	50-60 Hz
Input Connection	NEMA 5-15P	IEC-320 C14
Input Power	1800VA(MAX)； 1440VA(UL de-rated)	2400 VA(Max)
Outlet Type	(12) NEMA 5-15R	(12) IEC 320 C13
Nominal Output Voltage	120 VAC	240V
Maximum Output Current (Outlet)	15A(Max) (UL de-rated 12A Max)	10A(Max)
Maximum Output Current (Bank)	15A(Max) (UL de-rated 12A Max)	10A(Max)
Maximum Output Current (Total)	15A(Max) (UL de-rated 12A Max)	10A(Max)
OPD(Overcurrent Protection Device)	Yes	Yes
Physical Properties
Dimensions (L x W x H)	48.80 x 4.40 x 4.50 cm (19.21 x 1.73 x 1.77 in.)	48.80 x 4.40 x 4.50 cm (19.21 x 1.73 x 1.77 in.)
Weight	0.62 kg ( 1.37 lb )	0.62 kg ( 1.37 lb )
Power Cord Length	10ft(14#)	10ft(3×1.0mm2)
Environmental
Temperature (Operating / Storage)	0 – 40℃ / -20 – 60℃ *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations.	0 – 40℃ / -20 – 60℃ *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations.
Elevation (Operating / Storage)	3000m	3000m
Compliance
EMC Verification	FCC Class A	CE Class A
Safety Verification	By Request	CE,LVD
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

SKU	PE0112G-AT-G
Barcode #	672792009136
Brand	ATEN
Shipping Weight	1.7500kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.150m
Shipping Cubic	0.000750000m3
