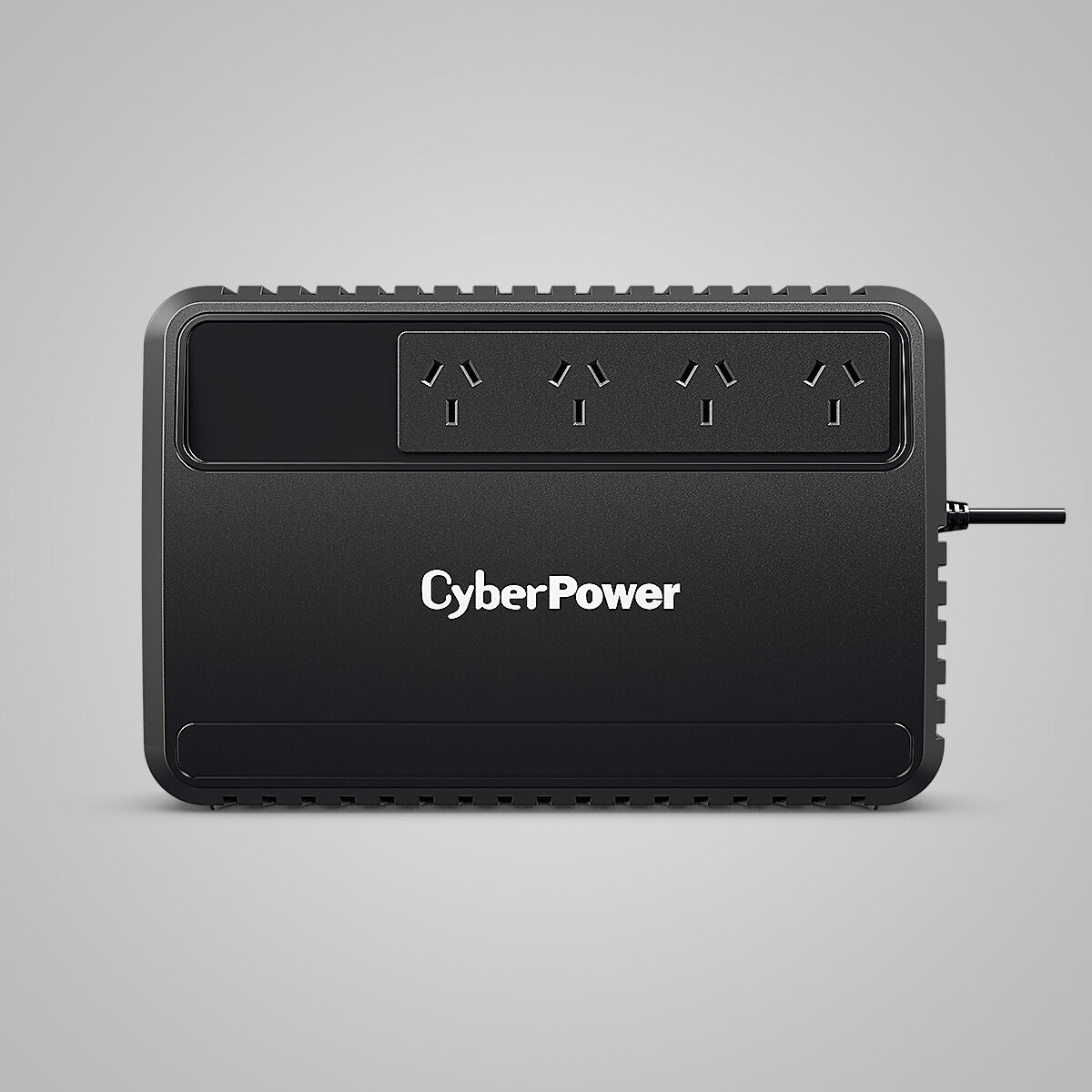

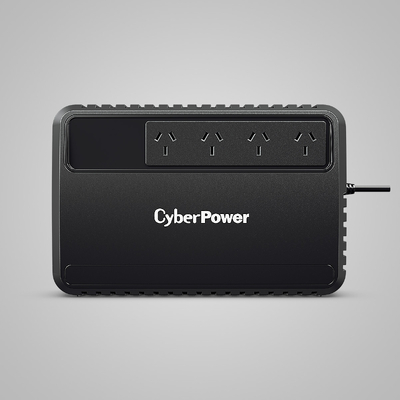

UPS Systems BU1100E

VA 1100 Watts 660 Output Voltage ( Vac ) 230 ± 10 % Runtime at 90W ( min ) 50

Energy Saving Technology
Automatic Voltage Regulation (AVR)
Generator Compatible
LED Status Indicator

Overview:

CyberPower BU1100E provides home and office users with a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power irregularities. The product adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized AC power output. The patented GreenPower UPS™ Bypass design helps UPS achieve ultra-low power consumption

Features:

  1. Line-interactive UPS Topology
  2. Automatic Voltage Regulation (AVR)
  3. LED Status Indicator
  4. Surge and Spike Protection
  5. PowerPanel Management Software
  6. Configurable Alarm
  7. Energy Saving Technology
  8. Generator Compatible
  9. Overload Protection
  10. USB Connectivity Port
  11. EMI and RFI Filtration

What's in the box

  1. BU1100E UPS
  2. USB Cable
  3. User's Manual

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

(BU1100E)

Automatic Voltage Regulation (AVR)

The UPS has built-in Automatic Voltage Regulation (AVR) function that keeps voltages at a safe level when incoming utility power fluctuates, thus providing consistent and reliable power to connected devices.

LED Status Indicator

With LED status indicator, the product's operational status can be displayed. The LED status indicator shows clear status of the system, so that users can easily obtain the power status.

Surge-protected Outlets

The UPS outlets absorb surges and spikes caused by thunder and lightning, hence providing complete protection for equipment and devices.

Configurable Alarm

Configurable alarm immediately notifies users of unexpected issues, allowing users to resolve problems at their earliest convenience. Users can also switch the audible alarm on or off during battery mode to avoid unnecessary disturbances.

Wall Mount Installation

The product comes with mounting slots, allowing users to install it easily onto walls to achieve wall mount orientation, thereby saving space for users. For Selected Models Only

Generator Compatible

Power continuity can be achieved with generators during a power outage. When UPS is running on generator's power, it can stabilize unstable voltages from the generator while providing reliable power.

PowerPanel Personal Software

The PowerPanel Management Software allows UPS management and PC graceful shutdowns by connecting the UPS to a computer through a USB or serial port. This software supports easy UPS status monitoring, event logging, and power settings to protect connected devices. Recommended Software | For Selected Models Only

PowerPanel Cloud Solution

The solution offers a convenient cloud-based management which allows users to access and monitor the UPS systems through a secure web portal or mobile app anytime, anywhere. Free Trial Available | For Selected Models Only

General

Phase
Single Phase
Form Factor
Desktop
UPS Topology
Line-interactive
Energy Saving Technology
GreenPower UPS™ Bypass Technology
Energy Star Qualified
Active PFC Compatibility

Input

Dual Power Inputs
Generator Compatibility
Yes
Nominal Input Voltage ( Vac )
230 ± 10%
Input Voltage Range ( Vac )
167 ~ 295
Input Voltage Range (At specific volt)
Adjustable Voltage Range ( Vac )
Input Frequency ( Hz )
50 ± 5
60 ± 5
Input Frequency Detection
Auto-sensing
Rated Input Current ( A )
5.9
Input Connector Type
AU 　
Plug Style
Detachable Power Cord Plug Type
Power Cord Length (ft.)
4
Power Cord Length (m.)
1.2

Output

Capacity (VA)
1100
Capacity (VA) (At specific volt)
Capacity (Watts)
660
Capacity (Watts) (At specific volt)
On Battery Waveform
Simulated Sine Wave
On Battery Voltage(s) ( Vac )
230 ± 10 %
Nominal Output Voltage ( Vac )
On Battery Frequency ( Hz )
50 ± 1%
60 ± 1%
Automatic Voltage Regulation (AVR)
Single Boost, Single Buck
Overload Protection
Circuit Breaker
Outlet(s) - Total
4
Outlet Type
AU x 4 　
Outlet(s) - Battery & Surge Protected
4
Outlet(s) - Surge-Only Protected
Outlet(s) - Battery Backup
Outlet(s) - Extension
Outlet(s) - Widely Spaced
Outlet(s) - Critical Load (CL)
Outlet(s) - Non-critical Load (NCL)
Outlet(s) - ECO Controlled Outlets (ECO Mode)
Typical Transfer Time ( ms )
4
USB Charging Port(s)
USB Charging Total Output
USB Charging Total Output ( Watts )
USB-A Charging Output
USB-C Charging Output

Battery

Runtime at 60W ( min )
71
Runtime at 90W ( min )
50
Runtime at 200W ( min )
19
Runtime at 325W ( min )
Typical Recharge Time ( Hours )
8
Quick Recharge Time ( Hours )
Start On Battery
Yes
User-replaceable
No
Hot-swappable
Compatible Extended Battery Module (EBM)
Max. EBM Quantity ( pcs )

Surge Protection & Filtering

Surge Suppression ( Joules )
150
EMI/RFI Filtration
Yes
Phone/Network Protection RJ11/RJ45 (Combo)
Phone Protection RJ11
Network Protection RJ45
Coax Protection RG6

Management & Communications

LCD Panel
LCD Information Display
LCD Setting & Control
LED Indicators
Power On, Line Mode, Battery Mode, Low Battery
HID Compliant USB Port(s)
1
Dry Contact (with Relay)
Emergency Power Off (EPO) Port
Audible Alarms
Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs )
USB Cable x1
Power Management Software
PowerPanel Personal (Recommended)
SNMP/HTTP Remote Monitoring

Physical

Wall Mount Installation
Enclosure Construction
Plastic
Color
Black
Rackmount Rail
Rackmount Ears

Physical Size - UPS Module

Dimensions (WxHxD) (in.)
7.48 x 4.35 x 11.42
Dimensions (WxHxD) (mm.)
190 x 110.5 x 290
Weight (lbs.)
Weight (kg.)
7.6
Installed Rack Height ( U )

Shipping Dimensions

Dimensions (WxHxD) (in.)
6.3 x 10.4 x 13.3
Dimensions (WxHxD) (mm.)
161 x 265 x 338
Weight (lbs.)
17.15
Weight (kg.)
7.78

Environmental

Operating Temperature (°F)
32 ~ 104
Operating Temperature (°C)
0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )
0 ~ 90
Operating Elevation ( feet/meters )
0-9,843 feet (0-3,000 meters)
Storage Temperature (°F)
-4 ~ 122
Storage Temperature (°C)
-20 ~ 50
Storage Relative Humidity (Non-condensing) ( % )
0 ~ 90
Storage Elevation ( feet/meters )
0-9,843 feet (0-3,000 meters)
Online Thermal Dissipation ( BTU/hr )
20.5
Audible Noise at 1.0M from Surface of Unit ( dBA )
Audible Noise at 1.5M from Surface of Unit ( dBA )
40

Certifications

Certifications
CE, RCM
RoHS
Yes
SKU BU1100E
Barcode # 4712364146770
Brand CYBERPOWER
Shipping Weight 7.0000kg

Manufacturer Warranty
