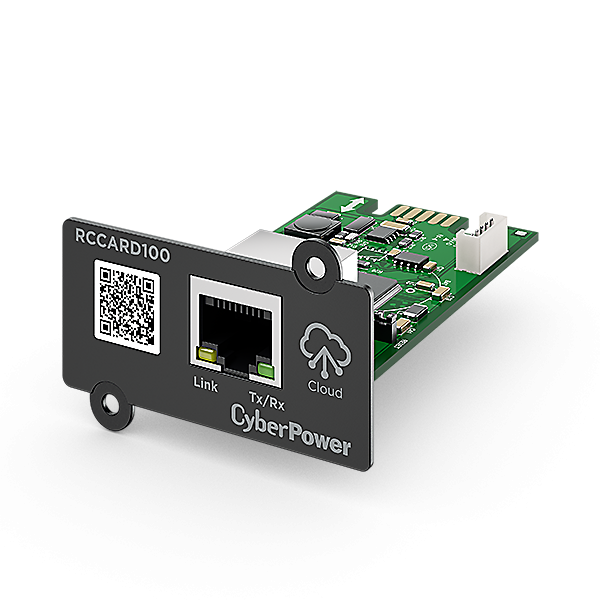

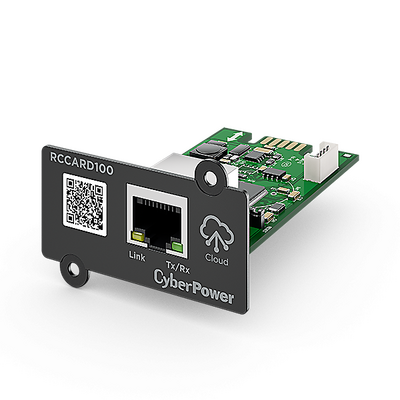

is an optional management add-on to specific CyberPower UPS series. By inserting the card into the expansion slot on the UPS, users can add the UPS to the PowerPanel Cloud system, thus enabling remote monitoring and management of the UPS, through a secure web portal or mobile app. The card is plug-and-play design and features hot-swappable capability, allowing quick and easy installation without interrupting the operation of the UPS. In addition, the card supports user-upgradeable firmware, so users are able to keep the functionality up-to-date with ease.

UPS Management through Cloud
Plug-and-play Installation
RoHS Compliant

QR Code for Quick Setup
User-upgradeable Firmware

(RCCARD100)

Management & Communications

LED Indicators

Tx/Rx, Link

Connectivity Port

RJ45

Data Link Protocol

Ethernet 100Base-TX, Ethernet 10Base-T

Support Plug-and-play Installation

Yes

User-upgradeable Firmware

Yes

Remote Management

PowerPanel App (Free 3-year Service), PowerPanel Cloud (Free 3-year Service)

Physical

Color

Green

Dimensions (WxHxD) (in.)

2.13 x 1.42 x 3

Dimensions (WxHxD) (mm.)

54 x 36.1 x 76.5

Weight (lbs.)

0.07

Weight (g.)

Shipping Dimensions

Dimensions (WxHxD) (in.)

6.8 x 2.4 x 6.5

Dimensions (WxHxD) (mm.)

168 x 58 x 164

Weight (lbs.)

0.3

Weight (g.)

140

Environmental

Operating Temperature (°F)

32 ~ 104

Operating Temperature (°C)

0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )

0 ~ 90

Operating Elevation ( feet/meters )

0-9,843 feet (0-3,000 meters)

Storage Temperature (°F)

14 ~ 122

Storage Temperature (°C)

-10 ~ 50

Storage Relative Humidity (Non-condensing) ( % )

0 ~ 95

Storage Elevation ( feet/meters )

0-49,213 feet (0-15,000 meters)

Certifications

CE, FCC Class B

RoHS

Yes

WARRANTY

Product Warranty Period (Year)

SKU	RCCARD100
Barcode #	649532931972
Brand	CYBERPOWER
Shipping Weight	0.2300kg
Shipping Width	0.006m
Shipping Height	0.017m
Shipping Length	0.017m
