Critical Power, Cooling and Racks > Data Center Infrastructure Management (DCIM) Software > Monitoring and Management > Network Management Cards > AP9547

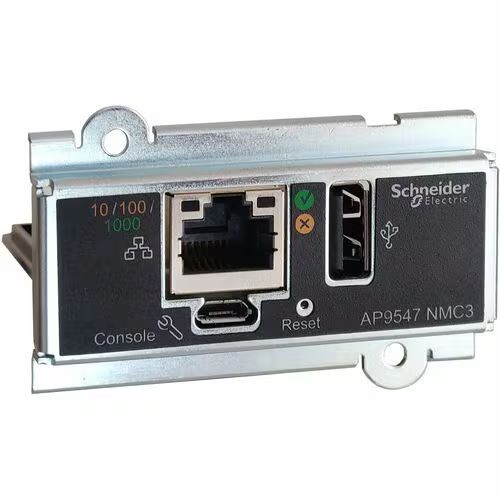

Device monitoring and management, Network Management Cards, NMC3 for Easy UPS 3S, 3M, 3L, Galaxy 3L & Galaxy PW, remote UPS monitoring and management

SKU: AP9547 | Brand: Schneider Electric

Key Features

Enables mission critical remote monitoring and management of Easy UPS 3S, 3M, 3L, Galaxy 3L or Galaxy PW 2nd Gen
Browser accessible from anywhere on a secure network
Real-time event notification maximizes uptime and improves efficiency
Take proactive actions and troubleshoot easily with detailed data and event logs
1-year Secure NMC Subscription, allowing the customer to access future firmware updates, is included with the purchase

Description

The Network Management Card 3 for Easy UPS 3 Series enables essential and secure remote monitoring and management of one Easy UPS 3S, Easy UPS 3M, Easy UPS 3L, Galaxy 3L or Galaxy PW 2nd Gen UPS, giving you mission-critical visibility.
The high-speed processor provides a fast and powerful experience offering Gigabit Ethernet connectivity and simultaneous multiple user logins to the easy-to-use web user interface or Command Line Interface.
Take proactive actions and troubleshoot easily with detailed data and event logging for timely resolution.
Advanced technology and features keep sensitive data secure with the newest and best-in-class security compliance.
The Network Management Card includes a 1-year Secure NMC Subscription which provides access to the latest firmware to ensure the most resilient, secure and sustainable IT infrastructure.
Integrates with EcoStruxure IT for efficient management of your equipment, PowerChute Network Shutdown for graceful shutdown, unattended start-up and VM migration options for disaster avoidance and business continuity, and with other SNMP-enabled systems.

Downloads & Documents

(AP9547)

Specifications - AP9547

Overview

Presentation

The Network Management Card for Easy UPS 3 Series (AP9547) enables secure remote monitoring and control of one Easy UPS 3S, Easy UPS 3S Pro, Easy UPS 3M or Easy UPS 3L through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system.

A 1-year Secure NMC System with IEC 62443-4-2 compliant NMC firmware updates is included with the purchase of the Network Management Card. After expiration of the 1-year included Secure NMC System, the purchase of an Advantage Plan (Plus, Prime, Ultra) or EcoCare membership with onsite maintenance visits for the UPS is required to get future NMC firmware updates.

Lead time

Usually in Stock

Main

Range of product	Network Management Cards
Range compatibility	Easy UPS 3S Easy UPS 3M Easy UPS 3L Easy UPS 3S Pro Galaxy PW 2nd generation
Product or component type	Device monitoring and management
Provided equipment	Micro-USB cable Installation manual
Number of input phases	3
Standards	CISPR 32 VCCI class A ICES-003 EN 55024 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-6-2 EN/IEC 62040-2

Physical

Net weight	0.05 kg
Width	5.2 cm
Height	4.4 cm
Depth	8.0 cm

Conformance

Product certifications

FCC Class A
AS/NZS

Environmental

Storage Relative Humidity	0…95 %
Relative humidity	0…95 %
Ambient air temperature for storage	-15…65 °C
Ambient air temperature for operation	-15…65 °C
Storage altitude	0…15240 m
Operating altitude	0...10000 ft

Communications & Management

Communication network type	10/100/1000BASE-T
Authentication	Radius
Communication port protocol	HTTP over secure sockets Layer (HTTPS) SSH FTP HTTP SNMP DHCP BOOTP (Bootstrap Protocol) TCP/IP

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.000 cm
Package 1 Width	16.500 cm
Package 1 Length	24.000 cm
Package 1 Weight	314.000 g
Unit Type of Package 2	P06
Number of Units in Package 2	44
Package 2 Height	55.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	17.000 kg

SKU	AP9547
Barcode #	731304422495
Brand	APC
Shipping Weight	0.3100kg
Shipping Width	0.005m
Shipping Height	0.024m
Shipping Length	0.017m
