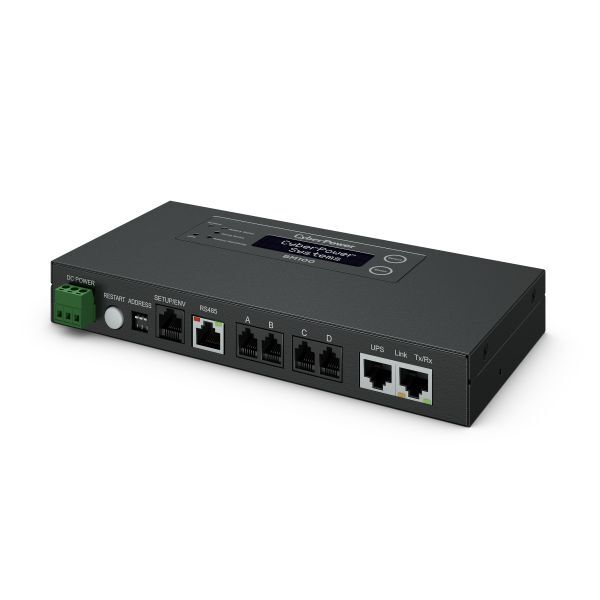

CyberPower Systems Battery Management System - Battery Manager (BM100)
Model # BM100
-
SKU: BM100
- Pick Up Available
- Australian Warranty
- Checkout Securely
Battery Solutions BM100
Overview
CyberPower BM100 is part of a battery management system, which consists of Battery Manager and Battery Probes. The system provides a proactive approach to manage and monitor the batteries, reducing the risk of downtime by ensuring the batteries are optimally charged and ready for use. The system can detect the flawed battery early to reduce the possibility of damage to the entire battery string, thus extending the battery lifespan and lowering maintenance costs. The battery management system can monitor several strings of batteries and equalize each battery's voltage to enhance battery performance. After installing the hardware and configuring an IP address, users can simply monitor the battery voltage, temperature, internal resistance, state of charge (SOC) and state of health (SOH) through the user-friendly web interface. The battery management system can support Environmental Sensor and user-upgradeable firmware. It is fully Ethernet TCP/IP compatible with integrated web server and supports SNMP/MIB communication, data record, alarm notification, and more. The system can also operate under wide temperature range. Moreover, the selected product features wireless communication to simplify wiring and installation.
Features
- Reduce Risk of Downtime
- Support Multiple Management Interface
- User-friendly Web Interface
- Historical Battery Data Storage
- Automatic Event Notification
- Wide Operating Temperature
- Battery Voltage/Temperature/Resistance/SOC/SOH Monitoring
- Low Power Consumption
- Support Environmental Sensor
- Charge Equalization
- Battery Analysis at Selectable Intervals
- User-upgradeable Firmware
What's in the Box
(BM100)
Easy Wireless Installation
The product features wireless communication between the Battery Manager and Battery Probes, minimizing cable clutter and simplifying installation, which is especially helpful in space-constrained environments.
Reduce Risk of Downtime
The product can monitor the health status of each connected battery, identifying the battery failure in advance and eliminating the risk of downtime.
Battery Condition Monitoring
Capable of monitoring battery conditions such as voltage, temperature, internal resistance, state of charge (SOC) and state of health (SOH) to evaluate overall battery performance.
Charge Equalization
By performing the charge equalization of every battery in a string, the product is able to maximize the battery lifespan and optimize the battery performance.
Automatic Event Notification
When a specific event happens, users can be notified through email, SNMP traps, Syslog or SMS, and act immediately to solve the issue.
User-friendly Web Interface
The user-friendly web interface not only provides vital information such as general overview, detailed battery information and historical record, but also allows system configuration.
User-upgradeable Firmware
By implementing the FTP/HyperTerminal tools, users can upgrade the Ethernet module/ local firmware to get the newest function and ensure optimal system operation.
Support Multiple Management Interfaces
Users can choose from various management interfaces, including the web (HTTP/HTTPS), console (Telnet/SSH), SNMP (v1/v3) and BMS software.
Support Environmental Sensor
The Environmental Sensor can work with the product to provide real-time temperature and humidity information. The Environmental Sensor can be integrated by connecting to the Battery Manager, allowing users to monitor the environmental conditions.
Wide Operating Temperature
Capable of operating under a wide range of temperature (maximum range -40-60 °C), the product can perform consistent operation under various environmental temperature extremes.
Low Power Consumption
By achieving low power consumption, the product can effectively reduce the impact on the battery, thereby protecting connected devices from downtime during a power failure.
PowerPanel Battery Management Software
The PowerPanel Battery Management software works with the battery managers and probes, providing comprehensive monitoring and management of the battery systems.
General
1 ~ 240 (2 strings)
1 ~ 120 (3 strings)
1 ~ 120 (4 strings)
Management & Communications
Physical
Physical Size
Shipping Dimensions
Environmental
Certifications
WARRANTY
| SKU | BM100 |
| Barcode # | 4712856277159 |
| Brand | CYBERPOWER |
| Shipping Weight | 1.0000kg |
Manufacturer Warranty
