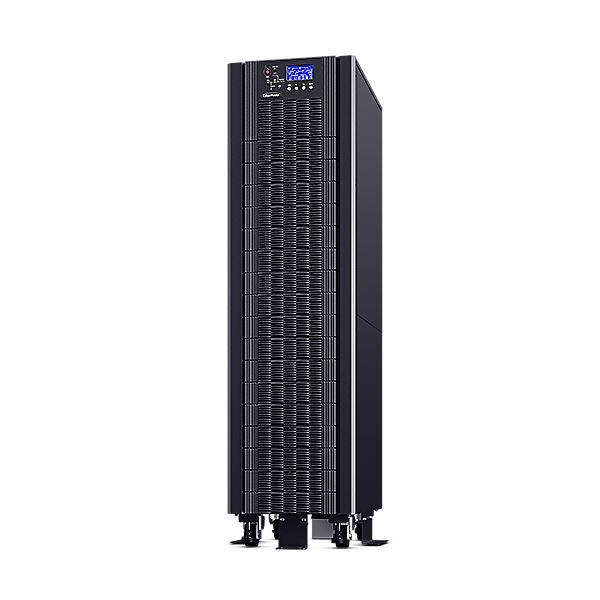

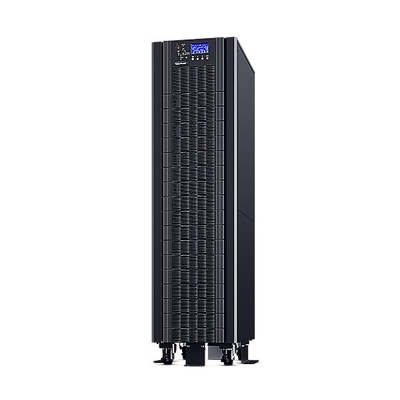

CyberPower HSTP3T30KEBC 30KVA/27KW with battery case 40x 12AH batteries
Model # HSTP3T30KEBC
-
SKU: HSTP3T30KEBC
- Pick Up Available
- Australian Warranty
- Checkout Securely
UPS Systems (3-Phase)
HSTP3T30KEBC
VA 30000 Watts 27000 Rated Input Current ( A ) 42 Rated Output Voltage ( Vac ) Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac Outlets Hardwire Terminal Block x 1
(HSTP3T30KEBC)
Online Double-conversion Topology
The UPS adopts online double-conversion topology to provide the best power quality regardless of the conditions of incoming power. This topology also features a zero transfer time, ensuring optimal system operation.
ECO Mode
When the quality of utility power is good, the UPS switches to ECO mode to increase system efficiency. When the quality is unstable, the UPS switches to line mode to guarantee the best power quality.
Color LCD with Touch Panel
The color LCD with touch panel is designed with friendly, intuitive, and graphical user-interface, allowing users to monitor power system and configure settings by simply touching the screen.
Dual Input Design
By allowing users to connect one input from AC power source and the second input from other power source, the dual power input design ensures high quality power and system continuity for connected equipment.
UPS Parallel Expansion
Multiple UPS units can be connected to flexibly expand system capacity and achieve N+X power redundancy in applicable models, thus protecting the systems against power failures.
Maintenance Bypass Switch
With this product, the operators can seamlessly switch the power to utility source via bypass mode, performing quick and safe maintenance without having to shut down the power system and connected equipment.
Generator Compatible
Power continuity can be achieved with generators during a power outage. When UPS is running on generator's power, it can stabilize unstable voltages from the generator while providing reliable power.
Emergency Power Off
The EPO port is a dry contact which can connect to an external switch, allowing users to immediately shut down UPS systems to ensure safety when disaster strikes.
Extended Battery Module (EBM)
The UPS can connect to extended battery modules (EBM) to prolong system runtime during power interruption. The EBM comes with plug-n-play DC connectors and supports EBM expansion, ensuring system's maximum power availability.
Smart Battery Management
The UPS adopts Smart Battery Management (SBM) technology to manage the battery charging process by using a 3-cycle approach and temperature compensation, which efficiently extends the battery lifespan.
Remote Management Capability
Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks, such as scheduled shutdowns and reboots.
PowerPanel Business Software
The PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V.
General
Phase
| Three Phase |
Form Factor
| Tower |
UPS Topology
| Online Double Conversion |
Energy Saving Technology
| ECO Mode Efficiency ＞ 98% |
Normal Mode Efficiency ( % )
| 95% |
Battery Mode Efficiency ( % )
| 95% |
Active PFC Compatibility
| Yes |
Parallel Expansion (Max. Units)
| 4 |
Input
Dual Power Inputs
| Yes |
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac |
Input Voltage Range ( Vac )
| Line to Neutral (L-N): 132 ~ 276 Vac |
| Line to Line (L-L): 228 ~ 478 Vac |
Configurable Voltage Range ( Vac )
| Line to Neutral (L-N): 220 ~ 250 Vac |
| Line to Line (L-L): 380 ~ 435 Vac |
Input Frequency ( Hz )
| 50 ± 3 |
| 60 ± 3 |
Input Frequency Range ( Hz )
| 40 ~ 70 |
Rated Input Current ( A )
| 42 |
THDI (%)
| <3% (Full Linear Load) |
Input Power Factor
| 0.99 |
Input Connector Type
| Hardwire Terminal Block |
Output
Capacity (VA)
| 30000 |
Capacity (Watts)
| 27000 |
On Battery Waveform
| Pure Sine Wave |
Output Voltage Setting
| Configurable |
Output Frequency Setting
| Configurable |
Rated Output Voltage ( Vac )
| Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac |
Output Voltage Tolerance ( % )
| 1.5 % |
Output Frequency ( Hz ± % )
| 50 ± 0.1 |
| 60 ± 0.1 |
Power Factor
| 0.9 |
ECO Mode Voltage Tolerance
| ± 10 % |
Overload Protection
| Internal Current Limiting, Circuit Breaker, Fuse |
Overload Protection (Line Mode)
| 105~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, ＞150% Load Immediately |
Overload Protection (Battery Mode)
| 105~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, ＞150% Load Immediately |
Overload Protection (Bypass Mode)
| 125~130% Load for 10 min, 130~150% Load for 1 min, 150~400% Load for 1 sec, ＞400% Load Immediately |
Crest Factor
| 3 : 1 |
Harmonic Distortion (Linear Load)
| THD＜1% |
Harmonic Distortion (Non-linear Load)
| THD＜5.5% |
Internal Bypass
| Automatic Bypass, Manual Bypass |
Maintenance Bypass
| Yes |
Outlet Type
| Hardwire Terminal Block x 1 |
Typical Transfer Time ( ms )
| 0 |
Battery
Runtime at Half Load ( min )
| 9 |
Runtime at Full Load ( min )
| 1 |
Recharge Power ( % )
| Default 10% (Selectable from 1~20% x UPS Capacity) |
Recharge Power Setting
| Configurable |
Charger Voltage Tolerance ( % )
| ≤ 1 % |
User-replaceable
| No |
Battery Type
| VRLA |
Battery Quantity (Each RBP) ( pcs )
| 40 |
Battery Voltage (Each RBP) ( V )
| 240 |
Battery Solution
| Internal Battery |
Battery Quantity ( pcs )
| 40 |
Battery Voltage ( V )
| ±240 (480) |
Single Battery Capacity ( AH )
| 12 V 12 AH |
Surge Protection & Filtering
EMI/RFI Filtration
| Yes |
Management & Communications
LCD Panel
| Yes |
LCD Information Display
| Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log |
LCD Setting & Control
| Mode Setting, Input & Output, Battery Setting, Communication, Event & Log, Security Setting, Language |
LED Indicators
| Yes |
Serial Port
| RS232 x 1 + RS485 x 1 + Dry Contact x 1 |
Dry Contact (with Relay)
| Yes |
Emergency Power Off (EPO) Port
| Yes |
Audible Alarms
| Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery |
Power Management Software
| PowerPanel Business (Recommended) |
SNMP/HTTP Remote Monitoring
| Yes - with optional RMCARD205 |
Physical
Enclosure Construction
| Metal |
Color
| Black |
Ingress Protection
| IP20 |
Physical Size - UPS Module
Dimensions (WxHxD) (mm.)
| 350 x 1335 x 738 |
Weight (kg.)
| 247 |
Shipping Dimensions
Dimensions (WxHxD) (mm.)
| 490 x 1530 x 880 |
Weight (kg.)
| 264 |
Environmental
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Operating Elevation ( feet/meters )
| ≤1000, Load Derated 1% per 100m from 1000m and 2000m |
Storage Temperature (°C)
| -40 ~ 70 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Certifications
Certifications
| CE, IEC62040-1, IEC62040-2 |
WARRANTY
Product Warranty Period (Year)
| 2 |
Battery Warranty Period (Year)
| 2 |
