UPS Systems OLS10KE

VA
10000
Watts
10000
Output Voltage ( Vac )
200 ± 1%208 ± 1%220 ± 1%230 ± 1%240 ± 1%
Half Load Runtime ( min )
9.9
Outlets
Hardwire Terminal Block x 1
ECO Mode
UPS Parallel Expansion
Maintenance Bypass Switch
Adjustable Charging Current

Overview

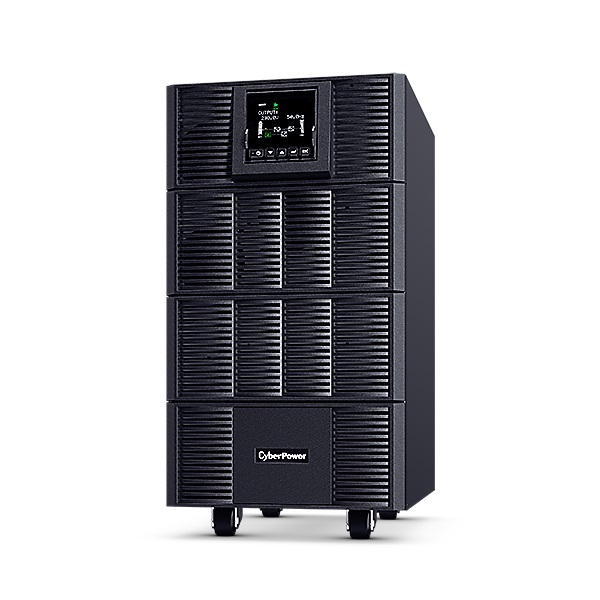

CyberPower OLS10KE is a high-efficiency UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated into the back office, server room, and data center environment. The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. The user-friendly tiltable color LCD panel allows users to monitor the power status and configure the settings with ease. This product is capable of detecting the quantity of connected Extended Battery Modules (EBM) automatically to estimate UPS's runtime. The battery charging current is adjustable via LCD setting to shorten charging time. It is also designed with relay-type dry contacts to facilitate specific UPS event notifications for seamless management. Moreover, the selected product is equipped with Remote Cloud Card to support remote monitoring via a web portal or the mobile app.

Features

  • Online (Double Conversion) UPS Topology
  • High Output Power Factor
  • UPS Parallel Expansion
  • Maintenance Bypass Switch
  • Extended Battery Module Auto-detection
  • Tiltable LCD Panel
  • Emergency Power Off (EPO) Port
  • Built-in Remote Cloud Card by Ethernet
  • SNMP/HTTP Remote Management Capability (Optional)
  • ECO Mode
  • Pure Sine Wave Output
  • Overload Protection
  • Adjustable Charging Current
  • Color LCD Panel
  • Relay-type Dry Contact
  • PowerPanel Management Software
  • Zero Transfer Time

What's in the Box

  • OLS10KE UPS
  • Rackmount Rail
  • Rackmount Ears
  • Screw Kit
  • USB Cable
  • Parallel Cable
  • User's Manual

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

(OLS10KE)

Online Double-conversion Topology

The UPS adopts online double-conversion topology to provide the best power quality regardless of the conditions of incoming power. This topology also features a zero transfer time, ensuring optimal system operation.

ECO Mode

When the quality of utility power is good, the UPS switches to ECO mode to increase system efficiency. When the quality is unstable, the UPS switches to line mode to guarantee the best power quality.

Color LCD Panel

The color LCD panel is designed with intuitive and graphical user-interface, allowing users to monitor power system and configure settings with ease. For Selected Models Only

Tiltable LCD Panel

The LCD panel can be tilted upward for easy viewing, which enables users to see clearly when the product is placed in a lower position. For Selected Models Only

High Output Power Factor

The UPS’s output power factor is 1, which means that more critical devices with higher amount of total watts can be powered by the UPS, utilizing more loads efficiently. For Selected Models Only

UPS Parallel Expansion

The UPS parallel expansion capability allows users to customize their power systems by connecting multiple UPS units, therefore reaching even higher capacity and achieving N+X power redundancy to protect the systems against power failures. For Selected Models Only

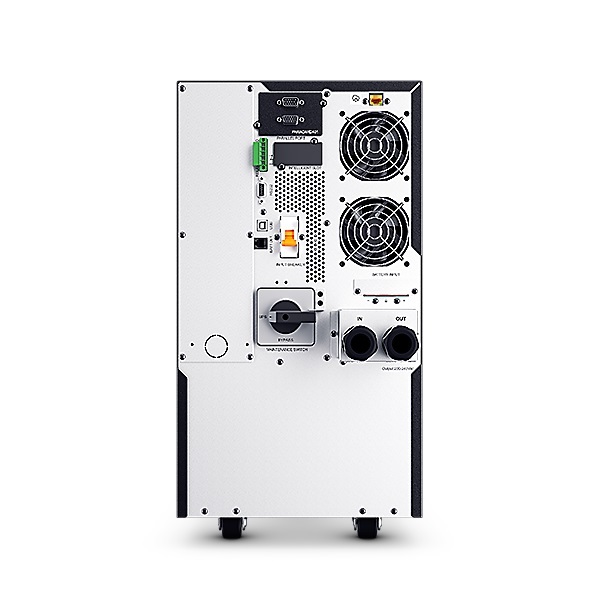

Maintenance Bypass Switch

With this product, the operators can seamlessly switch the power to utility source via bypass mode, performing quick and safe maintenance without having to shut down the power system and connected equipment. For Selected Models Only

Relay-type Dry Contact

With relay-type dry contact port, users can know UPS status from connected light bulb or alarm in order to monitor and manage UPS conveniently. For Selected Models Only

Extended Battery Module Auto-detection

The UPS comes with extended battery module auto-detection, which allows users to know the quantity of connected extended battery modules (EBM) in order to easily estimate UPS's runtime. For Selected Models Only

Emergency Power Off

The EPO port is a dry contact which can connect to an external switch, allowing users to immediately shut down UPS systems to ensure safety when disaster strikes.

Remote Management Capability

Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks, such as scheduled shutdowns and reboots. Optional Feature

PowerPanel Business Software

The PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V. Recommended Software

Built-in Remote Cloud Card by Ethernet

The UPS comes with a built-in Remote Cloud Card, which connects to PowerPanel Cloud to provide users with real-time UPS status information and enables remote monitoring of UPS systems installed in different places from anywhere. Free Trial Available | For Selected Models Only

PowerPanel Cloud Solution

The solution offers a convenient cloud-based management which allows users to access and monitor the UPS systems through a secure web portal or mobile app anytime, anywhere. Free Trial Available

General

PhaseSingle Phase
Form FactorTower
UPS TopologyOnline Double Conversion
Energy Saving TechnologyECO Mode Efficiency > 98%
Active PFC CompatibilityYes
Parallel Expansion (Max. Units)4

Input

Generator CompatibilityYes
Nominal Input Voltage ( Vac )230
Input Voltage Range ( Vac )110 ~ 300
Adjustable Voltage Range ( Vac )0~50% Load for 110 ~ 144 Vac
0~75% Load for 145 ~ 179 Vac
0~100% Load for 180 ~ 300 Vac
Input Frequency ( Hz )50
60
Input Frequency DetectionAuto-sensing
Rated Input Current ( A )49.5
Input Power Factor0.99
Input Connector TypeHardwire Terminal Block

Output

Capacity (VA)10000
Capacity (Watts)10000
On Battery WaveformPure Sine Wave
On Battery Voltage(s) ( Vac )200 ± 1 %
208 ± 1 %
220 ± 1 %
230 ± 1 %
240 ± 1 %
Output Voltage SettingConfigurable
On Battery Frequency ( Hz )50 ± 0.5%
60 ± 0.5%
Output Frequency SettingConfigurable
Power Factor1
Overload ProtectionInternal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode)105~130% Load for 10 sec, >130% Load for 1.5 sec
Overload Protection (Battery Mode)105~130% Load for 10 sec, >130% Load for 1.5 sec
Overload Protection (Bypass Mode)110~120% Load for 30 min, 120~130% Load for 2 min, 130~150% Load for 15 sec, >150% Load Immediately
Crest Factor3 : 1
Harmonic Distortion (Linear Load)THD＜1.5%
Harmonic Distortion (Non-linear Load)THD＜3%
Internal BypassAutomatic Bypass, Manual Bypass
Maintenance BypassYes
Outlet(s) - Total1
Outlet TypeHardwire Terminal Block x 1
Typical Transfer Time ( ms )0

Battery

Runtime at Half Load ( min )9.9
Runtime at Full Load ( min )2.6
Typical Recharge Time ( Hours )4
Maximum Charging Current ( A )4
Adjustable Charging Current ( A )1 ~ 4
Start On BatteryYes
Smart Battery Management (SBM)Yes
Compatible Extended Battery Module (EBM)BPS240V9A
Extended Battery Module Auto-detectionYes
Max. EBM Quantity ( pcs )10

Surge Protection & Filtering

Surge Suppression ( Joules )1335
EMI/RFI FiltrationYes

Management & Communications

LCD PanelYes
LCD TypesColor LCD
Tiltable LCD Panel15°
LCD Information DisplayOperation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & ControlMode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting
LED IndicatorsPower On
HID Compliant USB Port(s)1
Serial PortRS232
Dry Contact (with Relay)Yes
Emergency Power Off (EPO) PortYes
Audible AlarmsBattery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable ( pcs )USB Cable x1, Parallel Cable x1
Power Management SoftwarePowerPanel Business (Recommended)
SNMP/HTTP Remote MonitoringYes - with optional RMCARD205
PowerPanel Cloud ServiceYes - Built-in Remote Cloud Card by Ethernet
PowerPanel Cloud ServiceYes - 90 Days (UPS) Free Trial + 3 Years (Remote Cloud Card) Free Service

Physical

Enclosure ConstructionMetal
ColorBlack
Rackmount RailYes
Rackmount EarsYes

Physical Size - UPS Module

Dimensions (WxHxD) (mm.)270 x 520 x 460

Environmental

Operating Temperature (°F)32 ~ 104
Operating Temperature (°C)0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )0 ~ 95
Operating Elevation ( feet/meters )0-4,921 feet (0-1,500 meters)
Storage Temperature (°F)5 ~ 113
Storage Temperature (°C)-15 ~ 45
Storage Relative Humidity (Non-condensing) ( % )0 ~ 95
Storage Elevation ( feet/meters )0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation ( BTU/hr )2047
Audible Noise at 1.0M from Surface of Unit ( dBA )62

Certifications

CertificationsCE, RCM, TISI, ISO
RoHSYes
