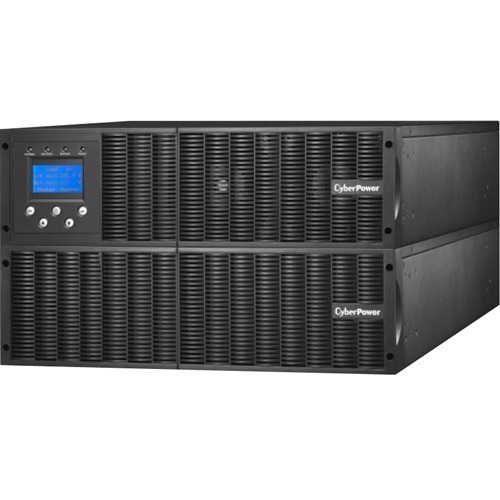

UPS Systems OLS10000ERT6UM

VA
10000
Watts
9000
Output Voltage ( Vac )
208 ± 1%220 ± 1%230 ± 1%240 ± 1%
Half Load Runtime ( min )
11
Outlets
Hardwire Terminal Block x 1IEC C13 x 4IEC C19 x 4
ECO Mode
Pure Sine Wave Output
LCD Status Display
UPS Parallel Expansion

Overview

CyberPower OLS10000ERT6UM is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment. Selected product is equipped with a Maintenance Bypass Switch. By flipping the switch, the power supply is safely transferred to utility. This allows service personnel to carry out fast on-site maintenance without having to shut down any connected equipment.

Features

  • Online (Double Conversion) UPS Topology
  • UPS Parallel Expansion
  • Overload Protection
  • Smart Battery Management (SBM)
  • Surge and Spike Protection
  • LCD Status Display
  • PowerPanel Management Software
  • Rack/Tower Convertible Configurations
  • ECO Mode
  • Generator Compatible
  • Zero Transfer Time
  • Extended Battery Module (EBM)
  • EMI and RFI Filtration
  • Emergency Power Off (EPO) Port
  • SNMP/HTTP Remote Management Capability (Optional)

What's in the Box

  • OLS10000ERT6UM UPS
  • Extended Battery Module
  • Detachable Maintenance Bypass PDU
  • Rackmount Rail
  • Rackmount Ears
  • Parallel Port Cover Plate
  • Terminal Cover
  • Terminal Splices
  • Screw Kit
  • USB Cable
  • User's Manual

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

(OLS10000ERT6UM)

Online Double-conversion Topology

The UPS adopts online double-conversion topology to provide the best power quality regardless of the conditions of incoming power. This topology also features a zero transfer time, ensuring optimal system operation.

ECO Mode

When the quality of utility power is good, the UPS switches to ECO mode to increase system efficiency. When the quality is unstable, the UPS switches to line mode to guarantee the best power quality.

Color LCD Panel

The color LCD panel is designed with intuitive and graphical user-interface, allowing users to monitor power system and configure settings with ease. For Selected Models Only

Tiltable LCD Panel

The LCD panel can be tilted upward for easy viewing, which enables users to see clearly when the product is placed in a lower position. For Selected Models Only

High Output Power Factor

The UPS’s output power factor is 1, which means that more critical devices with higher amount of total watts can be powered by the UPS, utilizing more loads efficiently. For Selected Models Only

UPS Parallel Expansion

The UPS parallel expansion capability allows users to customize their power systems by connecting multiple UPS units, therefore reaching even higher capacity and achieving N+X power redundancy to protect the systems against power failures. For Selected Models Only

Maintenance Bypass Switch

With this product, the operators can seamlessly switch the power to utility source via bypass mode, performing quick and safe maintenance without having to shut down the power system and connected equipment. For Selected Models Only

Relay-type Dry Contact

With relay-type dry contact port, users can know UPS status from connected light bulb or alarm in order to monitor and manage UPS conveniently. For Selected Models Only

Extended Battery Module Auto-detection

The UPS comes with extended battery module auto-detection, which allows users to know the quantity of connected extended battery modules (EBM) in order to easily estimate UPS's runtime. For Selected Models Only

Emergency Power Off

The EPO port is a dry contact which can connect to an external switch, allowing users to immediately shut down UPS systems to ensure safety when disaster strikes.

Remote Management Capability

Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks, such as scheduled shutdowns and reboots. Optional Feature

PowerPanel Business Software

The PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V. Recommended Software

Built-in Remote Cloud Card by Ethernet

The UPS comes with a built-in Remote Cloud Card, which connects to PowerPanel Cloud to provide users with real-time UPS status information and enables remote monitoring of UPS systems installed in different places from anywhere. Free Trial Available | For Selected Models Only

PowerPanel Cloud Solution

The solution offers a convenient cloud-based management which allows users to access and monitor the UPS systems through a secure web portal or mobile app anytime, anywhere. Free Trial Available

General

PhaseSingle Phase
Form FactorRackmount, Tower
UPS TopologyOnline Double Conversion
Energy Saving TechnologyECO Mode Efficiency > 96%
Active PFC CompatibilityYes
Parallel Expansion (Max. Units)4

Input

Generator CompatibilityYes
Nominal Input Voltage ( Vac )230
Input Voltage Range ( Vac )110 ~ 276
Adjustable Voltage Range ( Vac )0~80% Load for 110 ~ 276 Vac
0~100% Load for 176 ~ 276 Vac
Input Frequency ( Hz )50 ± 5
60 ± 6
Input Frequency DetectionAuto-sensing
Rated Input Current ( A )45.5
Input Power Factor0.99
Input Connector TypeHardwire Terminal Block

Output

Capacity (VA)10000
Capacity (Watts)9000
On Battery WaveformPure Sine Wave
On Battery Voltage(s) ( Vac )208 ± 1 %
220 ± 1 %
230 ± 1 %
240 ± 1 %
Output Voltage SettingConfigurable
On Battery Frequency ( Hz )50 ± 0.1%
60 ± 0.1%
Output Frequency SettingConfigurable
Power Factor0.9
ECO Mode Voltage Tolerance± 10 %
Overload ProtectionInternal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode)105~125% Load for 10 min, 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec
Overload Protection (Battery Mode)105~125% Load for 2 min, 125~150% Load for 30 sec, >150% Load for 1 sec
Overload Protection (Bypass Mode)125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec
Crest Factor3 : 1
Harmonic Distortion (Linear Load)THD＜2%
Harmonic Distortion (Non-linear Load)THD＜5%
Internal BypassAutomatic Bypass, Manual Bypass
Outlet(s) - Total9
Outlet TypeHardwire Terminal Block x 1
IEC C13 x 4
IEC C19 x 4
Outlet(s) - Battery & Surge Protected9
Typical Transfer Time ( ms )0

Battery

Runtime at Half Load ( min )11
Runtime at Full Load ( min )4
Typical Recharge Time ( Hours )7
Maximum Charging Current ( A )4
Start On BatteryYes
Smart Battery Management (SBM)Yes
User-replaceableNo
Hot-swappableYes - Qualified Personnel Only
Compatible Extended Battery Module (EBM)BPSE240V75ART3UOA
Max. EBM Quantity ( pcs )15

Surge Protection & Filtering

Surge Suppression ( Joules )445
EMI/RFI FiltrationYes

Management & Communications

LCD PanelYes
LCD Information DisplayOperation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & ControlMode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting
LED IndicatorsLine Mode, Battery Mode, Bypass Mode, UPS Fault
HID Compliant USB Port(s)1
Dry Contact (with Relay)Optional
Emergency Power Off (EPO) PortYes
Audible AlarmsBattery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
Management Cable ( pcs )USB Cable x1
Power Management SoftwarePowerPanel Business (Recommended)
SNMP/HTTP Remote MonitoringYes - with optional RMCARD205

Physical

Enclosure ConstructionMetal
ColorBlack
Rackmount RailYes
Rackmount EarsYes
Maintenance Bypass PDUDetachable Maintenance Bypass PDU

Physical Size - UPS Module

Dimensions (WxHxD) (in.)17.24 x 10.28 x 26.77
Dimensions (WxHxD) (mm.)438 x 261 x 680
Weight (lbs.)189.6
Weight (kg.)86
Installed Rack Height ( U )6

Physical Size - Power Module

Dimensions (WxHxD) (in.)17.24 x 5.14 x 26.77
Dimensions (WxHxD) (mm.)438 x 130.5 x 680
Weight (lbs.)44.1
Weight (kg.)20
Installed Rack Height ( U )3

Physical Size - Battery Module

Dimensions (WxHxD) (in.)17.24 x 5.14 x 26.77
Dimensions (WxHxD) (mm.)438 x 130.5 x 680
Weight (lbs.)145.5
Weight (kg.)66
Installed Rack Height ( U )3

Physical Size - Maintenance Bypass PDU

Dimensions (WxHxD) (in.)11.3 x 3.5 x 5.6
Dimensions (WxHxD) (mm.)288 x 88 x 141
Weight (lbs.)6.2
Weight (kg.)2.8
Installed Rack Height ( U )2

Shipping Dimensions

Dimensions (WxHxD) (in.)22.6 x 28.7 x 35
Dimensions (WxHxD) (mm.)575 x 730 x 890
Weight (lbs.)260.7
Weight (kg.)118.24

Environmental

Operating Temperature (°F)32 ~ 104
Operating Temperature (°C)0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )0 ~ 90
Operating Elevation ( feet/meters )≤1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature (°F)5 ~ 113
Storage Temperature (°C)-15 ~ 45
Storage Relative Humidity (Non-condensing) ( % )0 ~ 95
Storage Elevation ( feet/meters )0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation ( BTU/hr )2672
Audible Noise at 1.5M from Surface of Unit ( dBA )60

Certifications

CertificationsCE
RoHSYes

WARRANTY

Product Warranty Period ( Year )2
Battery Warranty Period ( Year )2
SKU OLS10000ERT6UM
Barcode # 4712856271775
Brand CYBERPOWER
Shipping Weight 118.0000kg
