UPS Systems OLS6KERT5U

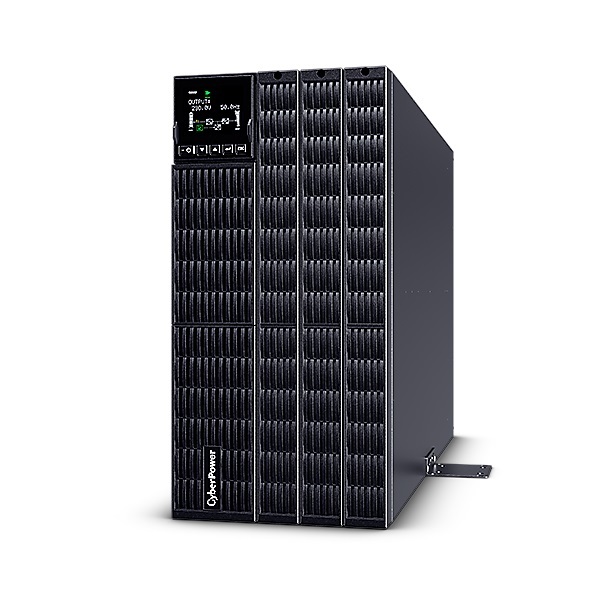

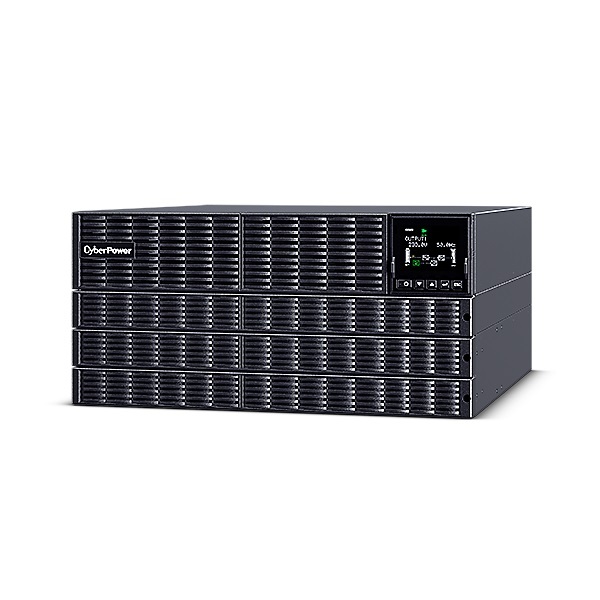

Name: CyberPower Online S Premium 6000VA/6000W 5U Rack UPS - OLS6KERT5U
Brand: CYBERPOWER
SKU: OLS6KERT5U
Price: 4048 AUD
Availability: InStock

6000

Watts

6000

Output Voltage ( Vac )

200 ± 1%208 ± 1%220 ± 1%230 ± 1%240 ± 1%

Half Load Runtime ( min )

Outlets

Hardwire Terminal Block x 1IEC C13 x 4IEC C19 x 4

ECO Mode

Built-in Remote Cloud Card by Ethernet

Color LCD Panel

User-replaceable Batteries

Overview

CyberPower OLS6KERT5U is a high-efficiency UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS, servers, DVRs/surveillance systems, transportation, infrastructure, and emergency systems. It’s typically integrated into the back office, server room, and data center environment. With high output power factor, the UPS in a smaller footprint can provide more usable power and save rack space. The product allows multiple UPS units to be connected in parallel, achieving higher capacity and power redundancy. The pre-installed Maintenance Bypass PDU (MBP) offers quick and safe maintenance without power interruption. Moreover, the UPS is equipped with Remote Cloud Card to support remote monitoring via a web portal and the mobile app. The tiltable color LCD comes with an intuitive and graphical interface, allowing users to monitor and configure settings with ease. Besides, the battery charging current is adjustable via LCD setting to shorten charging time. It is also designed with relay-type dry contact port to support specific UPS event notifications for easy management.

Features

Online (Double Conversion) UPS Topology
High Output Power Factor
Overload Protection
Maintenance Bypass Switch
Extended Battery Module Auto-detection
User-replaceable Batteries
Tiltable LCD Panel
Relay-type Dry Contact
SNMP/HTTP Remote Management Capability (Optional)
Rack/Tower Convertible Configurations
ECO Mode
Pure Sine Wave Output
Zero Transfer Time
Extended Battery Module (EBM)
Adjustable Charging Current
Color LCD Panel
Emergency Power Off (EPO) Port
PowerPanel Management Software
Built-in Remote Cloud Card by Ethernet

What's in the Box

OLS6KERT5U UPS
Detachable Maintenance Bypass PDU
Rackmount Rail
Rackmount Ears
Rail Kit
Screw Kit
Power Cord
USB Cable
Parallel Cable
User's Manual

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

(OLS6KERT5U)

<div bis_skin_checked="1" class="content-wrapper" id="features" style="display: block;">
<div bis_skin_checked="1" class="whiteLeft">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Online Double-conversion Topology</h3>

<p style="text-align: center;">The UPS adopts online double-conversion topology to provide the best power quality regardless of the conditions of incoming power. This topology also features a zero transfer time, ensuring optimal system operation.</p>
</div>

<p style="text-align: center;">When the quality of utility power is good, the UPS switches to ECO mode to increase system efficiency. When the quality is unstable, the UPS switches to line mode to guarantee the best power quality.</p>
</div>

<div bis_skin_checked="1" class="whiteLeft">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Color LCD Panel</h3>

<p style="text-align: center;">The color LCD panel is designed with intuitive and graphical user-interface, allowing users to monitor power system and configure settings with ease. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="greyRight">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Tiltable LCD Panel</h3>

<p style="text-align: center;">The LCD panel can be tilted upward for easy viewing, which enables users to see clearly when the product is placed in a lower position. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="whiteLeft">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">High Output Power Factor</h3>

<p style="text-align: center;">The UPS’s output power factor is 1, which means that more critical devices with higher amount of total watts can be powered by the UPS, utilizing more loads efficiently. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="greyRight">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">UPS Parallel Expansion</h3>

<p style="text-align: center;">The UPS parallel expansion capability allows users to customize their power systems by connecting multiple UPS units, therefore reaching even higher capacity and achieving N+X power redundancy to protect the systems against power failures. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="whiteLeft">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Maintenance Bypass Switch</h3>

<p style="text-align: center;">With this product, the operators can seamlessly switch the power to utility source via bypass mode, performing quick and safe maintenance without having to shut down the power system and connected equipment. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="greyRight">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Relay-type Dry Contact</h3>

<p style="text-align: center;">With relay-type dry contact port, users can know UPS status from connected light bulb or alarm in order to monitor and manage UPS conveniently. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="whiteLeft">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Extended Battery Module Auto-detection</h3>

<p style="text-align: center;">The UPS comes with extended battery module auto-detection, which allows users to know the quantity of connected extended battery modules (EBM) in order to easily estimate UPS's runtime. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="greyRight">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Emergency Power Off</h3>

<p style="text-align: center;">The EPO port is a dry contact which can connect to an external switch, allowing users to immediately shut down UPS systems to ensure safety when disaster strikes.</p>
</div>

<p style="text-align: center;">Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks, such as scheduled shutdowns and reboots. <span class="warning"> <c langkey="Remark_2">Optional Feature</c> </span></p>
</div>

<div bis_skin_checked="1" class="greyRight">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">PowerPanel Business Software</h3>

<p style="text-align: center;">The PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V. <span class="warning"> <c langkey="Remark_3">Recommended Software</c> </span></p>
</div>

<p style="text-align: center;">The UPS comes with a built-in Remote Cloud Card, which connects to PowerPanel Cloud to provide users with real-time UPS status information and enables remote monitoring of UPS systems installed in different places from anywhere. <span class="warning"> <c langkey="Remark_7">Free Trial Available</c> | <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="greyRight">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">PowerPanel Cloud Solution</h3>

<p style="text-align: center;">The solution offers a convenient cloud-based management which allows users to access and monitor the UPS systems through a secure web portal or mobile app anytime, anywhere. <span class="warning"> <c langkey="Remark_7">Free Trial Available</c> </span></p>
</div>

General

PhaseSingle Phase

Form FactorRackmount, Tower

UPS TopologyOnline Double Conversion

Energy Saving TechnologyECO Mode Efficiency > 98%

Active PFC CompatibilityYes

Parallel Expansion (Max. Units)4

Input

Generator CompatibilityYes

Nominal Input Voltage ( Vac )230

Input Voltage Range ( Vac )110 ~ 300

Adjustable Voltage Range ( Vac )0~50% Load for 110 ~ 144 Vac
0~75% Load for 145 ~ 179 Vac
0~100% Load for 180 ~ 300 Vac

Input Frequency ( Hz )50
60

Input Frequency DetectionAuto-sensing

Rated Input Current ( A )30

Input Power Factor0.99

Input Connector TypeHardwire Terminal Block

Output

Capacity (VA)6000

Capacity (Watts)6000

On Battery WaveformPure Sine Wave

On Battery Voltage(s) ( Vac )200 ± 1 %
208 ± 1 %
220 ± 1 %
230 ± 1 %
240 ± 1 %

Output Voltage SettingConfigurable

On Battery Frequency ( Hz )50 ± 0.5%
60 ± 0.5%

Output Frequency SettingConfigurable

Power Factor1

ECO Mode Voltage Tolerance± 10 %

Overload ProtectionInternal Current Limiting, Circuit Breaker, Fuse

Overload Protection (Line Mode)105~130% Load for 10 sec, >130% Load for 1.5 sec

Overload Protection (Battery Mode)105~130% Load for 10 sec, >130% Load for 1.5 sec

Overload Protection (Bypass Mode)110~120% Load for 30 min, 120~130% Load for 2 min, 130~150% Load for 15 sec, >150% Load Immediately

Crest Factor3 : 1

Harmonic Distortion (Linear Load)THD＜1.5%

Harmonic Distortion (Non-linear Load)THD＜2%

Internal BypassAutomatic Bypass, Manual Bypass

Maintenance BypassYes

Outlet(s) - Total9

Outlet TypeHardwire Terminal Block x 1
IEC C13 x 4

IEC C19 x 4

Typical Transfer Time ( ms )0

Battery

Runtime at Half Load ( min )17

Runtime at Full Load ( min )5.3

Typical Recharge Time ( Hours )4

Maximum Charging Current ( A )4

Adjustable Charging Current ( A )1 ~ 4

Start On BatteryYes

Smart Battery Management (SBM)Yes

User-replaceableYes

Hot-swappableYes - Qualified Personnel Only

Battery Cartridge (RBP)RBP0192

Battery Cartridge (RBP) Quantity ( pcs )2

Compatible Extended Battery Module (EBM)BPS240V7ART3U

Extended Battery Module Auto-detectionYes

Max. EBM Quantity ( pcs )10

Surge Protection & Filtering

Surge Suppression ( Joules )1335

EMI/RFI FiltrationYes

Management & Communications

LCD PanelYes

LCD TypesColor LCD

LCD OrientationRotatable LCD – Manual

Tiltable LCD Panel15°

LCD Information DisplayOperation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

LCD Setting & ControlMode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting

LED IndicatorsPower On

HID Compliant USB Port(s)1

Serial PortRS232

Dry Contact (with Relay)Yes

Emergency Power Off (EPO) PortYes

Audible AlarmsBattery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

Management Cable ( pcs )Power Cord x4, USB Cable x1, Parallel Cable x1

Power Management SoftwarePowerPanel Business (Recommended)

SNMP/HTTP Remote MonitoringYes - with optional RMCARD205

PowerPanel Cloud ServiceYes - Built-in Remote Cloud Card by Ethernet

PowerPanel Cloud ServiceYes - 90 Days (UPS) Free Trial + 3 Years (Remote Cloud Card) Free Service

Physical

Enclosure ConstructionMetal

ColorBlack

Rackmount RailYes

Rackmount EarsYes

Physical Size - UPS Module

Dimensions (WxHxD) (mm.)433 x 213.5 x 661

Weight (kg.)69

Installed Rack Height ( U )5

Shipping Dimensions

Dimensions (WxHxD) (mm.)575 x 489 x 890

Weight (kg.)86.8

Environmental

Operating Temperature (°F)32 ~ 104

Operating Temperature (°C)0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )0 ~ 95

Operating Elevation ( feet/meters )0-4,921 feet (0-1,500 meters)

Storage Temperature (°F)5 ~ 113

Storage Temperature (°C)-15 ~ 45

Storage Relative Humidity (Non-condensing) ( % )0 ~ 95

Storage Elevation ( feet/meters )0-49,213 feet (0-15,000 meters)

Online Thermal Dissipation ( BTU/hr )1777

Audible Noise at 1.0M from Surface of Unit ( dBA )62

Certifications

CertificationsCE, TISI

RoHSYes

Special Features

Rack/Tower Convertible ConfigurationsYes

SKU	OLS6KERT5U
Brand	CYBERPOWER

Manufacturer Warranty : 2 years Manufacturer Warranty
