UPS Systems OL2000ERTXL2U

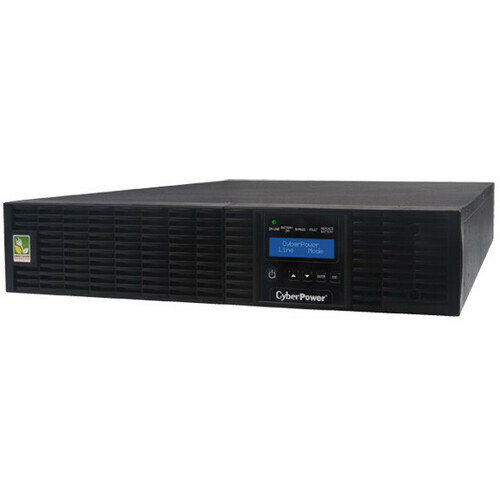

Name: CyberPower Smart App Online OL2000ERTXL2U Double Conversion Online UPS - 2 kVA/1.80 kW - 2U Rack/Tower
Brand: CYBERPOWER
SKU: OL2000ERTXL2U
Price: 1925 AUD
Availability: InStock

2000

Watts

1800

Output Voltage ( Vac )

200 ± 2%208 ± 2%220 ± 2%230 ± 2%240 ± 2%

Half Load Runtime ( min )

Outlets

IEC C13 x 8IEC C19 x 1

ECO Mode

Pure Sine Wave Output

LCD Status Display

Hot-swappable Batteries

Overview

CyberPower OL2000ERTXL2U guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output with additional ECO Mode to conserve power and save on energy costs. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and Emergency Power Off (EPO) switch to allow users to shut off UPS immediately during emergency. To extend battery lifetime, the UPS adopts Smart Battery Management (SBM) to enhance battery charging process and achieve a lower total cost of ownership. This model also features detachable LCD display panel to relocate the panel for convenient monitoring, and RJ11/RJ45 port to provide data line protection against surges and spikes. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.

Features

Online (Double Conversion) UPS Topology
Generator Compatible
Critical/Non-critical Load Outlets
Smart Battery Management (SBM)
Extended Battery Module (EBM)
EMI and RFI Filtration
LCD Status Display
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
ECO Mode
Overload Protection
Zero Transfer Time
Hot-swappable Batteries
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
Detachable LCD Panel
PowerPanel Management Software
Rack/Tower Convertible Configurations

What's in the Box

OL2000ERTXL2U UPS
Rackmount Rail
Rackmount Ears
Screw Kit
Power Cord
USB Cable
Serial Cable
Phone Line
User's Manual
Product Registration Card

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

(OL2000ERTXL2U)

Online Double-conversion Topology

The UPS adopts online double-conversion topology to provide the best power quality regardless of the conditions of incoming power. This topology also features a zero transfer time, ensuring optimal system operation.

ECO Mode

When the quality of utility power is good, the UPS switches to ECO mode to increase system efficiency. When the quality is unstable, the UPS switches to line mode to guarantee the best power quality.

Multifunction LCD Readout

The LCD readout displays clear system information, such as power status, battery status, load status and more. It also features a user-friendly and intuitive interface, allowing users to easily manage and monitor the entire system.

Surge-protected Outlets

The UPS outlets absorb surges and spikes caused by thunder and lightning, hence providing complete protection for equipment and devices.

Data Line Protection

The UPS provides data line protection to protect connected devices from surges and spikes caused by lightning, avoiding potential system damage.

Dual Input Design

By allowing users to connect one input from AC power source and the second input from other power source, the dual power input design ensures high quality power and system continuity for connected equipment. For Selected Models Only

Backfeed Protection

When an electrical circuit fails and connected loads are still protected by UPS, a back-feed protection device prevents current from being passed back to the input terminals of the UPS from the inverter output, thus protecting users from electric shock. For Selected Models Only

Critical/Non-critical Load Outlets

Users can configure critical/non-critical load (CL/NCL) settings through the software. When battery power is insufficient during a power outage, the NCL outlets can be cut off to preserve power to extend the runtime for critical devices. For Selected Models Only

Maintenance Bypass Switch

With this product, the operators can seamlessly switch the power to utility source via bypass mode, performing quick and safe maintenance without having to shut down the power system and connected equipment. For Selected Models Only

Generator Compatible

Power continuity can be achieved with generators during a power outage. When UPS is running on generator's power, it can stabilize unstable voltages from the generator while providing reliable power.

Hot-swappable Batteries

Batteries can be safely replaced without shutting down the UPS or connected equipment, ensuring uninterrupted operation. Please read the safety precautions in the manual before battery replacement.

Extended Battery Module (EBM)

The UPS can connect to extended battery modules (EBM) to prolong system runtime during power interruption. The EBM comes with plug-n-play DC connectors and supports EBM expansion, ensuring system's maximum power availability.

Smart Battery Management

The UPS adopts Smart Battery Management (SBM) technology to manage the battery charging process by using a 3-cycle approach and temperature compensation, which efficiently extends the battery lifespan.

Emergency Power Off

The EPO port is a dry contact which can connect to an external switch, allowing users to immediately shut down UPS systems to ensure safety when disaster strikes.

Remote Management Capability

Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks, such as scheduled shutdowns and reboots. Optional Feature

PowerPanel Business Software

The PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V. Recommended Software

PowerPanel Cloud Solution

The solution offers a convenient cloud-based management which allows users to access and monitor the UPS systems through a secure web portal or mobile app anytime, anywhere. Free Trial Available

General

PhaseSingle Phase

Form FactorRackmount, Tower

UPS TopologyOnline Double Conversion

Energy Saving TechnologyECO Mode Efficiency

Active PFC CompatibilityYes

Input

Generator CompatibilityYes

Nominal Input Voltage ( Vac )200
208
220
230
240

Input Voltage Range ( Vac )190 ~ 300

Adjustable Voltage Range ( Vac )0~60% Load for 120 ~ 139 Vac
0~70% Load for 140 ~ 159 Vac
0~80% Load for 160 ~ 179 Vac
0~90% Load for 180 ~ 189 Vac
0~100% Load for 190 ~ 300 Vac

Input Frequency ( Hz )50 ± 10
60 ± 10

Input Frequency DetectionAuto-sensing

Rated Input Current ( A )10

Input Power Factor0.99

Input Connector TypeIEC C14

Detachable Power Cord Plug TypeIEC C13 x 1

Power Cord Length (ft.)10

Power Cord Length (m.)3

Output

Capacity (VA)2000

Capacity (Watts)1800

On Battery WaveformPure Sine Wave

On Battery Voltage(s) ( Vac )200 ± 2 %
208 ± 2 %
220 ± 2 %
230 ± 2 %
240 ± 2 %

Output Voltage SettingConfigurable

On Battery Frequency ( Hz )50 ± 0.5%
60 ± 0.5%

Output Frequency SettingConfigurable

Power Factor0.9

ECO Mode Voltage Tolerance± 10 %
± 15 %

Overload ProtectionInternal Current Limiting, Circuit Breaker

Overload Protection (Line Mode)105~125% Load for 1 min, 125~150% Load for 10 sec

Overload Protection (Battery Mode)105~130% Load for 10 sec, 130~150% Load for 2 sec

Overload Protection (Bypass Mode)Circuit Breaker

Crest Factor3 : 1

Harmonic Distortion (Linear Load)THD＜3%

Harmonic Distortion (Non-linear Load)THD＜5%

Internal BypassAutomatic Bypass, Manual Bypass

Outlet(s) - Total9

Outlet TypeIEC C13 x 8

IEC C19 x 1

Outlet(s) - Battery & Surge Protected9

Outlet(s) - Critical Load (CL)5

Outlet(s) - Non-critical Load (NCL)4

Typical Transfer Time ( ms )0

Battery

Runtime at Half Load ( min )20

Runtime at Full Load ( min )6.5

Typical Recharge Time ( Hours )5

Start On BatteryYes

Smart Battery Management (SBM)Yes

User-replaceableYes

Hot-swappableYes

Battery Cartridge (RBP)RBP

Battery Cartridge (RBP) Quantity ( pcs )1

Battery Quantity (Each RBP) ( pcs )6

Battery Voltage (Each RBP) ( V )72

Compatible Extended Battery Module (EBM)BPE72V60ART2US

Max. EBM Quantity ( pcs )10

Surge Protection & Filtering

Surge Suppression ( Joules )1335

EMI/RFI FiltrationYes

Phone/Network Protection RJ11/RJ45 (Combo)1-in, 1-out

Management & Communications

LCD PanelYes

LCD TypesDetachable LCD Panel

LCD Information DisplayOperation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

LCD Setting & ControlMode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language

LED IndicatorsPower On, Line Mode, Battery Mode, Bypass Mode, Battery Capacity, Low Battery, Overload, UPS Fault, Wiring Fault, Replace Battery

HID Compliant USB Port(s)1

Dry Contact (with Relay)Yes

Emergency Power Off (EPO) PortYes

Audible AlarmsBattery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

Management Cable ( pcs )Power Cord x1, USB Cable x1, Serial Cable x1, Phone Line x1

Power Management SoftwarePowerPanel Business (Recommended)

SNMP/HTTP Remote MonitoringYes - with optional RMCARD205
