Datalogic GD4520 Barcode Scanner Handheld 2D USB
Model # GD4520-BKK1S
-
SKU: GD4520-BKK1S
- Pick Up Available
- Australian Warranty
- Checkout Securely

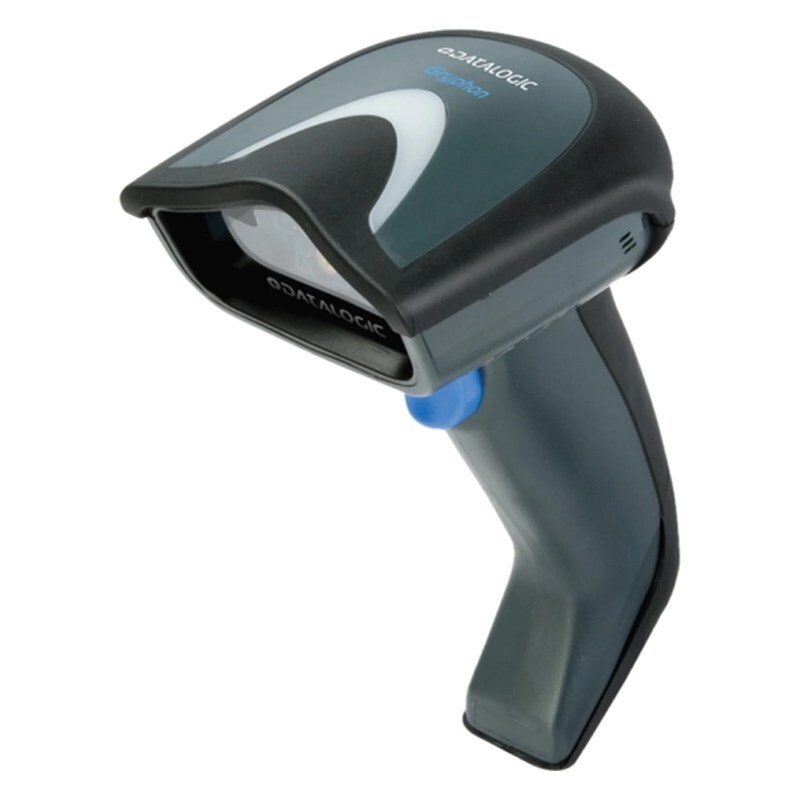

Datalogic Gryphon I GD4520 Corded 1D/2D USB Barcode Scanner Black
A black corded handheld GD4520 with USB connectivity, a 1280 × 800 imager and omnidirectional 1D/2D barcode capture.
Product overview
Corded omnidirectional scanning through USB
The Datalogic Gryphon I GD4520-BKK1S is presented as a corded handheld scanner with USB connectivity and a black finish.
The supplied page lists a 1280 × 800 imager, omnidirectional scanning, standard 1D and 2D code support, Motionix sensing, a four-dot aimer and white illumination.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Datalogic |
| SKU | GD4520-BKK1S |
| Displayed manufacturer part number | GD4520-BKK1 |
| Product model | GD4520 |
| Product line / series | Gryphon I / GD4500 |
| Product type as supplied | Barcode scanner kit |
| Complete kit contents | Not itemised |
| Host interface | USB |
| Connectivity | Cable |
| Cable type included | USB |
| Image sensor | Imager, 1280 × 800 |
| Scanning capability | 1D and 2D |
| Barcode symbologies | Standard 1D codes including GS1 DataBar linear codes; Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code; Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC); EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites; Digimarc Barcodes |
| Scan pattern | Omnidirectional |
| Illumination | White LED stated |
| Technology conflict | Laser is also stated as the light source |
| Reading angles | 65° skew; 65° pitch; 360° roll |
| Motion tolerance | 889 mm/s |
| Maximum ambient light | 100000 lux |
| Minimum print contrast | 15% |
| Ingress protection rating | IP52 |
| Drop specification | Repeated drops from 1.8 m / 6.0 ft onto concrete |
| Approximate weight | 161 g |
| Colour | Black |
| Manufacturer warranty as supplied | 5 years limited warranty |
| Shipping weight as supplied | 0.8600 kg |
Helpful answers
Frequently asked questions
Which interface does this scanner use?
USB is the supplied host interface.
Does it scan 1D and 2D codes?
Yes. The detailed specification lists both capabilities.
Are the kit contents confirmed?
No. The page calls the product a kit but does not itemise every component.
Which part-number detail needs review?
The SKU is GD4520-BKK1S, while the detailed manufacturer-part field says GD4520-BKK1.
(GD4520-BKK1S)
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SKU | GD4520-BKK1S |
| Barcode # | 5706998503183 |
| Brand | DATALOGIC |
| Shipping Weight | 0.8600kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.100m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.003960000m3 |
Manufacturer Warranty: 5 Years Limited Warranty
