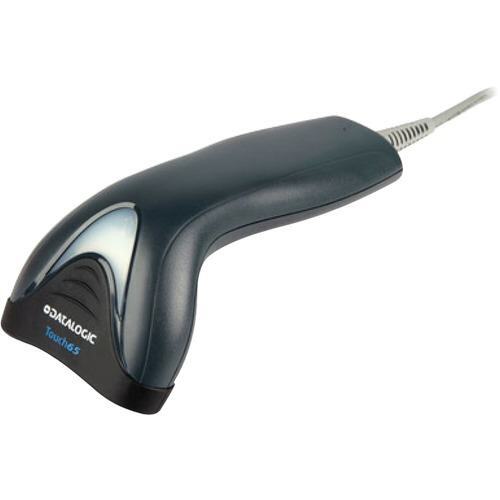

TD1100 65 Lite, Black, USB Kit (Includes Scanner, Holder and 90A052065 Cable.) The Touch TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.

(TD1120-BK-65K1)

Interfaces/Ports

Host Interface

USB

Miscellaneous

Additional Information	USB Cable separate
Application/Usage	Library
Package Contents	General Purpose Corded Handheld Contact Linear Imager Bar Code Reader Holder USB Cable
Country of Origin	Vietnam
Environmentally Friendly	Yes
Environmental Certification	EU RoHS
Environmental Certification	China RoHS

Technical Information

Barcode Symbology Supported	1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes Stacked Codes: GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional
Connectivity Technology	Cable
Scanning Distance	150 mm
Maximum Scan Resolution	0.10 mm
Drop Specification	Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Depth of Field	0" - 3.2"@7.5mil - Code 39 0" - 4.7"@10mil - Code 39 0" - 6"@13mil - EAN13
Scan Pattern	Omni-directional
Image Sensor Type	Linear
Image Sensor Type	Imager
Cable Type Included	USB
Scanning Capability	1D
Reading Angle (Skew)	70°
Reading Angle (Pitch)	65°
Reading Angle (Roll)	45°
Maximum Ambient Light	20000 lux
Minimum Print Contrast	25%
Minimum Element Resolution (Code 39)	0.19 mm
Maximum Element Resolution (Code 39)	0.25 mm

Physical Characteristics

Weight (Approximate)	130.4 g
Form Factor	Handheld
Height	160 mm
Width	58.4 mm
Depth	83.8 mm
Product Color	Black
Rugged	Yes

General Information

Product Type	Barcode Scanner Kit
Manufacturer Part Number	TD1120-BK-65K1
Manufacturer Website Address	http://www.datalogic.com
Manufacturer	Datalogic S.p.A
Product Model	65 Lite
Product Name	General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit
Product Line	Touch
Product Series	TD1100
Brand Name	Datalogic

SKU	TD1120-BK-65K1
Barcode #	5711045567810
Brand	DATALOGIC
Shipping Weight	0.4800kg

Manufacturer Warranty
