Eaton SKU 9E2000IAU

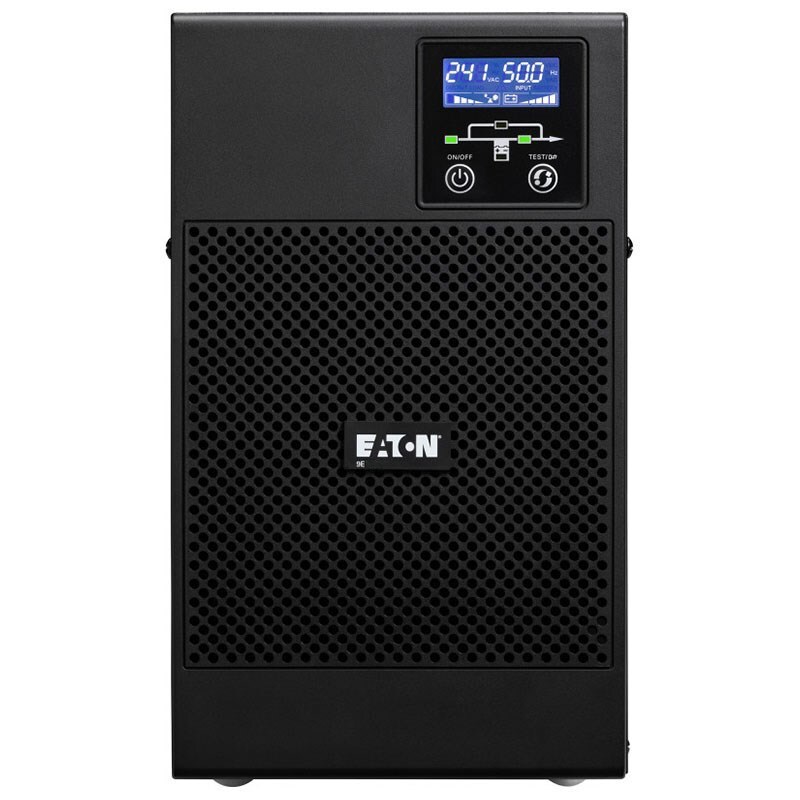

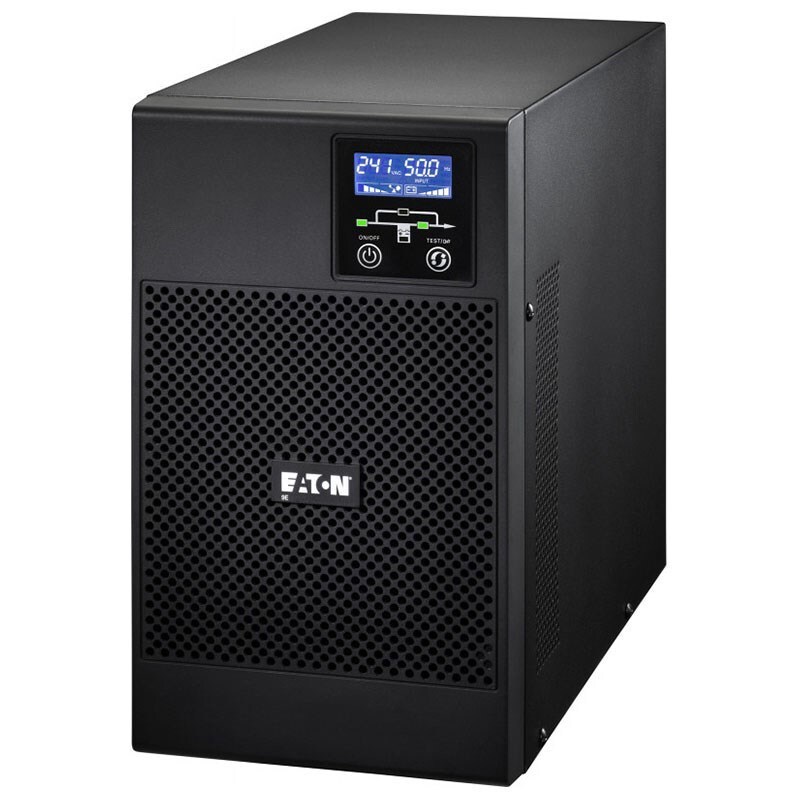

Eaton 9E2000IAU 2000VA/1600W Online Double-Conversion UPS

The Eaton 9E2000IAU 9E is an online double-conversion, single-phase tower UPS identified as 2000VA / 1600W in the supplied product name and description.

The source lists one IEC C14 10A input, 6 x IEC C13 10A outputs, 4070Hz input, autosensing 50/60Hz output, RS-232 serial, USB and a communication-card slot.

2000VA / 1600WOnline double conversionTower1-year warrantyDeviceDeal authorised Eaton reseller

Product overview

Online double conversion

The source classifies this model as a double-conversion online UPS.

Power connections

The supplied description lists one IEC C14 10A input and 6 x IEC C13 10A outputs.

Communication options

RS-232 serial, USB and a communication-card slot are listed in the supplied description.

Source review: The product name and description state 2000VA / 1600W, while the structured load-capacity field states 2000VA / 1800W. Both source values are preserved and should be confirmed before publication or purchase.

Frequently asked questions

What capacity is listed for the Eaton 9E2000IAU?

The product description lists 2000VA / 1600W, while the structured field lists 2000VA / 1800W.

Which output receptacles are listed?

The description lists 6 x IEC C13 10A outputs.

Which communication interfaces are listed?

The source lists RS-232 serial, USB and a communication-card slot.

What warranty is supplied?

The source lists a one-year Eaton manufacturer warranty.

(9E2000IAU)

Features

Eaton 9E2000IAU 2000VA/1600W Online Double-Conversion UPS

Power protection

Online double-conversion topology
Single phase
Description rating: 2000VA / 1600W
Structured rating: 2000VA / 1800W

Connections and frequency

1 x IEC C14 10A input
6 x IEC C13 10A outputs
4070Hz input range
50/60Hz autosensing output

Management and installation

RS-232 serial
USB
Communication-card slot
Tower form factor
One-year manufacturer warranty

Confirm the conflicting watt ratings in the supplied source before publication or purchase.

Technical specifications

Eaton 9E2000IAU 2000VA/1600W Online Double-Conversion UPS

Product details
Brand	Eaton
Model / SKU	9E2000IAU
Series	9E
Product type	Double-conversion online UPS
Phase	Single phase
Form factor	Tower
Product-name / description rating	2000VA / 1600W
Structured load-capacity field	2000VA / 1800W
Power and connections
Input	1 x IEC C14 10A
Outputs	6 x IEC C13 10A outputs
Nominal-voltage options stated	208V; 220V; 230V; 240V for 03kVA
Input frequency range	4070Hz
Output frequency	50/60Hz autosensing
Communication
RS-232 serial	Yes
USB	Yes
Communication-card slot	Yes
Physical properties
Height	330mm
Width	190mm
Depth	399mm
Approximate weight	22.40kg

SKU	9E2000IAU
Barcode #	743172105622
Brand	EATON
Shipping Weight	24.6000kg
Shipping Width	0.035m
Shipping Height	0.049m
Shipping Length	0.046m

Warranty information

Eaton 9E2000IAU 2000VA/1600W Online Double-Conversion UPS

1-Year Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a one-year Eaton manufacturer warranty in Australia, as listed in the supplied product information.
