Eaton SKU 9PX2200IRT2UANZ

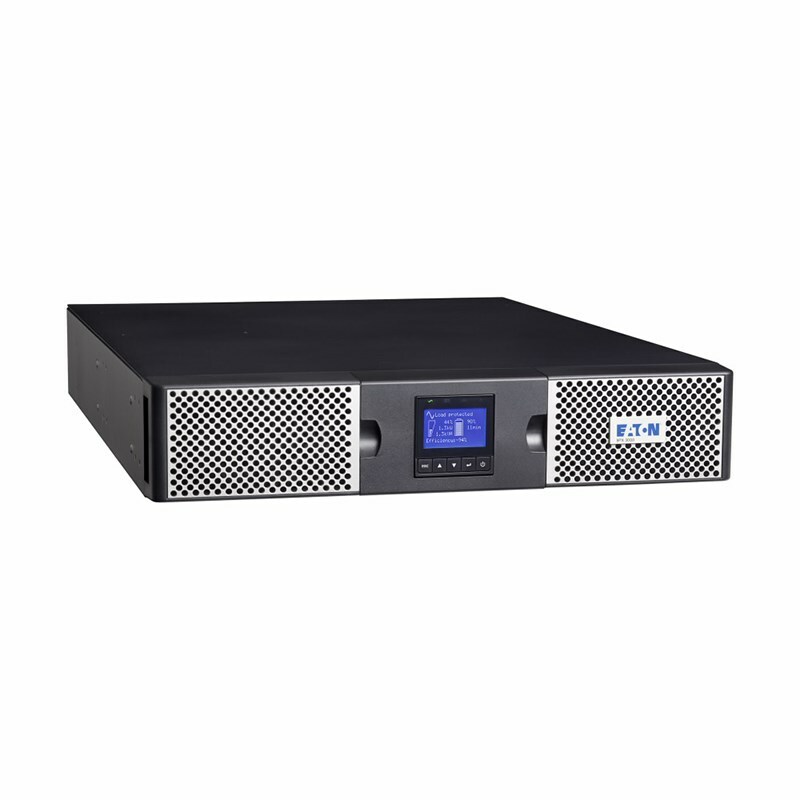

Eaton 9PX2200IRT2UANZ 2200VA/2200W Online 2U Rack/Tower UPS

The Eaton 9PX2200IRT2UANZ 9PX is a single-phase online double-conversion UPS rated at 2200VA / 2200W in a 2U rack/tower format.

The supplied record lists multilingual graphical lcd display, USB HID and serial connectivity, with the rail kit included.

2200VA / 2200WOnline double conversion2U rack/tower3-Year LimitedDeviceDeal authorised Eaton reseller

Product overview

2200VA / 2200W

The structured load capacity is 2200VA / 2200W.

Online double conversion

The supplied source classifies this model as a double-conversion online UPS.

2U rack/tower installation

The structured form factor is rack/tower with a listed rack height of 2U.

Source review: The description states 2200W and 1000VA, while the product name and structured load-capacity field identify 2200VA / 2200W. The description also lists an IEC C20 16A input, while the structured connector field lists IEC C14. All source values are preserved and require confirmation.

Frequently asked questions

What capacity is listed for the Eaton 9PX2200IRT2UANZ?

The structured specification lists 2200VA / 2200W.

Which output connections are listed?

The description lists 8 x IEC C13 10A and 2 x IEC C19 16A; the structured field lists 8 x IEC 60320 C13; 2 x IEC 60320 C19.

Which monitoring interfaces are listed?

The source lists multilingual graphical lcd display, USB HID and a serial port.

What warranty is supplied?

The source lists a three-year limited Eaton manufacturer warranty.

(9PX2200IRT2UANZ)

Features

Eaton 9PX2200IRT2UANZ 2200VA/2200W Online 2U Rack/Tower UPS

Power performance

Online double-conversion topology
Single phase
2200VA / 2200W
Sine wave

Connections and monitoring

Description input: IEC C20 16A
Structured input: IEC 60320 C14
Description outputs: 8 x IEC C13 10A and 2 x IEC C19 16A
Structured outputs: 8 x IEC 60320 C13; 2 x IEC 60320 C19
Multilingual graphical LCD display
USB HID
Serial port

Installation and support

2U rack/tower
Dimensions (H x W x D): 86.5mm x 605mm x 440mm
Approximate weight: 25.02kg
Rail kit: Included

Confirm the source-review notes, connected load and installation requirements before purchase.

Technical specifications

Eaton 9PX2200IRT2UANZ 2200VA/2200W Online 2U Rack/Tower UPS

Product details
Brand	Eaton
Model / SKU	9PX2200IRT2UANZ
Series	9PX
Product type	Double-conversion online UPS
Phase	Single phase
Status display	Multilingual graphical LCD display
Power
Load capacity	2200VA / 2200W
Input-voltage values listed	120V AC; 230V AC
Output-voltage values listed	240V AC
Input-voltage range	100276V AC; 176276V AC
Input frequency	60Hz
Output frequency	60Hz
Waveform	Sine wave
Connections
Input stated in description	IEC C20 16A
Structured plug / connector	IEC 60320 C14
Outputs stated in description	8 x IEC C13 10A and 2 x IEC C19 16A
Structured receptacle detail	8 x IEC 60320 C13; 2 x IEC 60320 C19
Serial port	Yes
USB HID-compliant port	Yes
Battery
Battery chemistry	Lead acid
Battery characteristics	Sealed
Hot swappable	Yes
Environment and additional fields
Sound emission	40dB
Physical properties
Form factor	Rack / tower
Rack height	2U
Height	86.5mm
Width	605mm
Depth	440mm
Approximate weight	25.02kg
Product colours listed	Silver; black
Applications listed
Application / usage	Healthcare; university; IT; medical; industrial automation system

SKU	9PX2200IRT2UANZ
Barcode #	743172081360
Brand	EATON
Shipping Weight	33.8000kg
Shipping Width	0.580m
Shipping Height	0.240m
Shipping Length	0.780m
Shipping Cubic	0.108576000m3

Warranty information

Eaton 9PX2200IRT2UANZ 2200VA/2200W Online 2U Rack/Tower UPS

3-Year Limited Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a three-year limited Eaton manufacturer warranty in Australia, as listed in the supplied product information.
