Eaton SKU 9SX3000I-AU

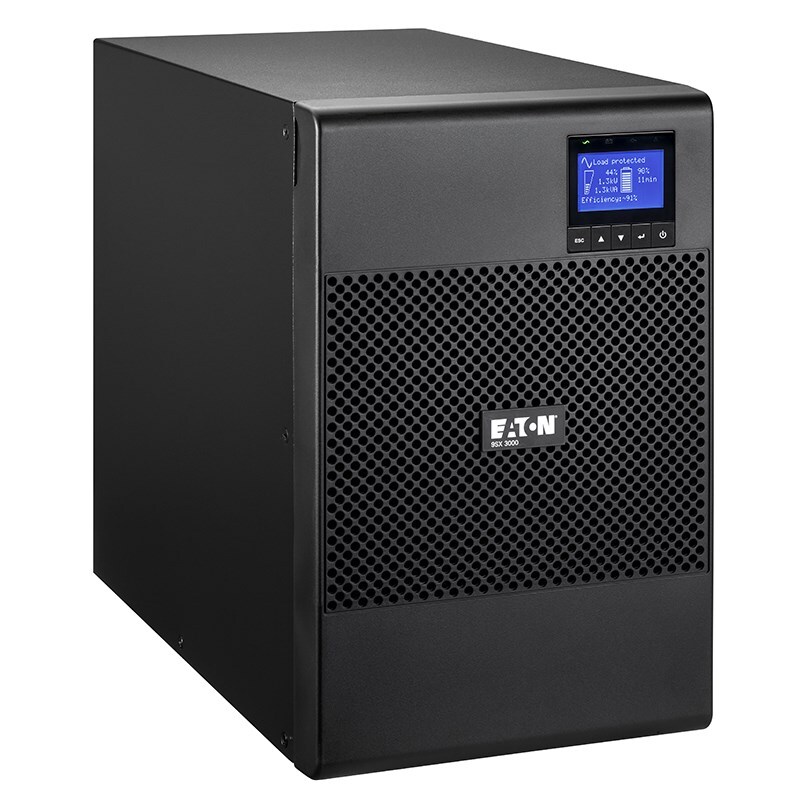

Eaton 9SX3000I-AU 3000VA/2700W Online Tower UPS

The Eaton 9SX3000I-AU is a 9SX online double-conversion tower UPS with a structured load capacity of 3000VA / 2700W.

The supplied record lists 1 x IEC 60320 C20 input, 1 x IEC 60320 C19; 5 x Australian outputs (description states 16A), a multilingual graphical LCD, USB HID, serial, EPO and SNMP-manageable operation.

3000VA / 2700WOnline double conversionTower UPS2-year warrantyDeviceDeal authorised Eaton reseller

Product overview

3000VA / 2700W

The structured specification lists 3000VA / 2700W.

Online double conversion

The source classifies the 9SX as a double-conversion online UPS for network, storage, IT, industrial, medical and telecommunications applications.

Local and remote management

The source lists a multilingual graphical LCD, LED indicators, USB HID, serial, EPO and SNMP-manageable operation.

Source review: The description identifies five Australian 16A outputs, while the structured receptacle field lists five Australian outputs without an amperage. The source distinction is preserved for confirmation.

Frequently asked questions

What capacity is listed for the Eaton 9SX3000I-AU?

The supplied record lists 3000VA / 2700W.

Which power connections are listed?

The source lists 1 x IEC 60320 C20 input and 1 x IEC 60320 C19; 5 x Australian outputs (description states 16A).

Which monitoring interfaces are listed?

The source lists a multilingual graphical LCD, LED indicators, USB HID, a serial port, EPO and SNMP-manageable operation.

What warranty is supplied?

The source lists a two-year Eaton manufacturer warranty.

(9SX3000I-AU)

Features

Eaton 9SX3000I-AU 3000VA/2700W Online Tower UPS

Power protection

9SX online double-conversion topology
Structured rating: 3000VA / 2700W
230V AC nominal input
Input range: 140276V AC

Connections and management

1 x IEC 60320 C20 input
1 x IEC 60320 C19; 5 x Australian outputs (description states 16A)
USB HID-compliant port
RS-232 serial port
Emergency power-off port

Installation and environment

Tower form factor
Dimensions (H x W x D): 346mm x 214mm x 412mm
Approximate weight: 48.70kg
Sound emission: 45dB
40°C maximum operating temperature

Review the supplied-source note and confirm the final connected load, input circuit and outlet requirements before purchase.

Technical specifications

Eaton 9SX3000I-AU 3000VA/2700W Online Tower UPS

Product details
Brand	Eaton
Model / SKU	9SX3000I-AU
Series	9SX
Product type	Double-conversion online UPS
Form factor	Tower
Structured load capacity	3000VA / 2700W
Power
Input voltage	230V AC
Input-voltage range	140276V AC
Input frequency field	70Hz
Output frequency field	60Hz
Connections and management
Input connector	1 x IEC 60320 C20 input
Output receptacles	1 x IEC 60320 C19; 5 x Australian outputs (description states 16A)
Serial port	Yes
USB HID-compliant port	Yes
Emergency power-off port	Yes
Network management	SNMP manageable
Status display	LED indicators; multilingual graphical LCD
Physical and environmental
Height	346mm
Width	214mm
Depth	412mm
Approximate weight	48.70kg
Sound emission	45dB
Maximum operating temperature	40°C
Applications listed
Application / usage	IT system; network; storage; industry; telecommunications; medical

SKU	9SX3000I-AU
Barcode #	743172091116
Brand	EATON
Shipping Weight	13.4000kg
Shipping Width	0.032m
Shipping Height	0.057m
Shipping Length	0.049m

Warranty information

Eaton 9SX3000I-AU 3000VA/2700W Online Tower UPS

2-Year Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a two-year Eaton manufacturer warranty in Australia, as listed in the supplied product information.
