Eaton UPS Buying Guide 2026

Affordable Standby Power for Home & Small Office

Eaton’s 3S series provides budget-friendly standby (offline) UPS protection. Ideal for home PCs, modems, routers and basic office equipment. The 3S activates battery power within milliseconds of a mains failure — fast enough for computers and networking gear.

• Compact DC UPS: 3SM36AU (36W DC) — ultra-compact DC UPS designed specifically for modems and routers. Keeps your internet alive during power outages with 12V/9V/5V DC output. No bulky transformer needed.
• Powerboard UPS: 3S850AU (850VA/510W) — powerboard-style UPS with battery backup and surge protection outlets. Protect your home PC, monitor and router in one compact strip. Great for home offices and entertainment setups.

When to choose 3S: You need basic blackout protection for non-critical equipment. Budget is the priority and you want a simple plug-and-play solution.

Reliable Power for Business Workstations & Networks

Eaton’s 5S and 5P Gen2 series use line-interactive topology with automatic voltage regulation (AVR). They continuously condition incoming power, correcting sags and surges without switching to battery — extending battery life and providing superior protection compared to standby UPS models.

• Entry business: 5S700AU (700VA/420W) — compact line-interactive tower UPS for individual workstations. AVR stabilises voltage fluctuations, USB connectivity for graceful shutdown via Eaton’s free software.

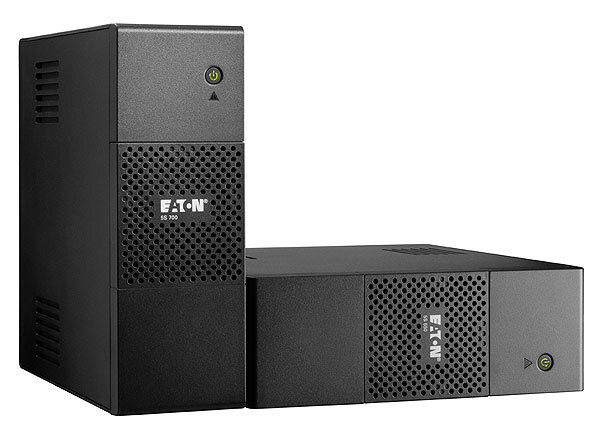

• Mid-range business: 5S1200AU (1200VA/750W) — higher capacity for workstations with multiple monitors, or small network closets. Supports a PC + monitor + router comfortably with extended runtime.
• High-performance business: 5P1550IRG2 (1550VA/1350W, Gen2) — the latest 5P Gen2 with Energy Star efficiency, LCD display and advanced battery management. Ideal for server closets, point-of-sale systems and critical workstations requiring maximum runtime.

When to choose 5S/5P: You need reliable power for business equipment where voltage regulation is important. The simulated sinewave output works well with most computing equipment and networking gear.

Pure Sinewave for Sensitive Equipment

The 5SC series delivers line-interactive protection with pure sinewave output on battery. This is critical for equipment with Active PFC power supplies, laser printers, audio/video production gear and sensitive medical or laboratory instruments that cannot tolerate the stepped approximation of simulated sinewave.

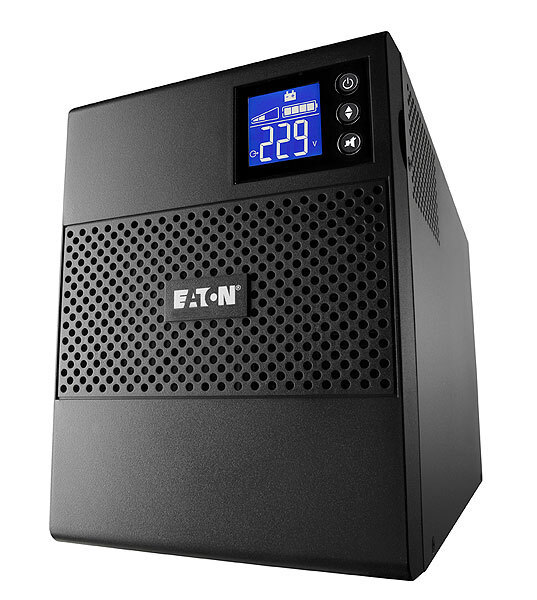

• Pure sinewave tower: 5SC750i (750VA/525W) — compact tower UPS with pure sinewave output, USB and serial connectivity. Compatible with Eaton Intelligent Power Manager (IPM) for centralised UPS monitoring across your organisation. Hot-swappable batteries for maintenance without downtime.

When to choose 5SC: Your equipment specifically requires pure sinewave power (check your device specs for “Active PFC”), or you run sensitive audio, video or test equipment. The 5SC bridges the gap between affordable line-interactive and premium online UPS models.

Mission-Critical Online Double-Conversion

For servers, storage, virtualisation hosts and critical network infrastructure, Eaton’s online double-conversion UPS models provide the highest level of power protection. They continuously convert incoming AC to DC and back to AC, delivering perfectly conditioned power with zero transfer time — the load never touches raw mains power.

• 5PX Gen2 rack/tower: 5PX2000IRT2UAUG2 (2000VA/2000W) — versatile 2U rack/tower convertible with line-interactive topology and advanced LCD management. Energy-optimised design with up to 98% efficiency in high-efficiency mode. Ideal for edge computing and distributed IT.
• 9SX online tower: 9SX1500I-AU (1500VA/1350W) — true online double-conversion in a tower form factor. Zero transfer time, pure sinewave output, hot-swappable batteries and an internal bypass for maintenance. Supports Eaton IPM for enterprise-wide monitoring.
• 9PX online rack/tower: 9PX1000IRT2UANZ (1000VA/1000W) — the latest generation online UPS with Energy Star certification, cybersecurity features and lithium-ion battery option. 2U rack/tower convertible with rail kit included. Unmatched power density for edge and remote deployments.

When to choose 5PX/9SX/9PX: You cannot afford any power disruption. Servers, virtualisation, VoIP, critical networking and storage systems all demand online UPS. The 9SX and 9PX deliver zero transfer time and the cleanest possible power.

Complete Your Power Infrastructure

A UPS is only part of the power protection picture. Eaton’s PDUs, bypass switches and accessories ensure your rack is properly powered, managed and maintainable without downtime.

• Rack PDU: EFLX12I (FlexPDU, 12x IEC) — 1U rackmount power distribution unit with 12 IEC C13 outlets. Clean, organised power distribution from your UPS to rack equipment.
• HotSwap bypass: MBP3KI (3000VA, 6x C13) — maintenance bypass panel that lets you service or replace your UPS without powering down connected equipment. Essential for 24/7 operations where downtime is not an option.
• Rail kit: 5SXRACKKIT2U — rackmount rail kit for Eaton 5SX 1250VA–3000VA UPS models. Tool-less installation in standard 19″ racks.
• Replacement battery: 52UPS12V34WFR (12V 9VA sealed lead-acid) — genuine Eaton replacement battery for 3S and 5S series UPS. Batteries typically last 3–5 years and should be replaced proactively to maintain runtime.
