Eaton SKU 3S850AU

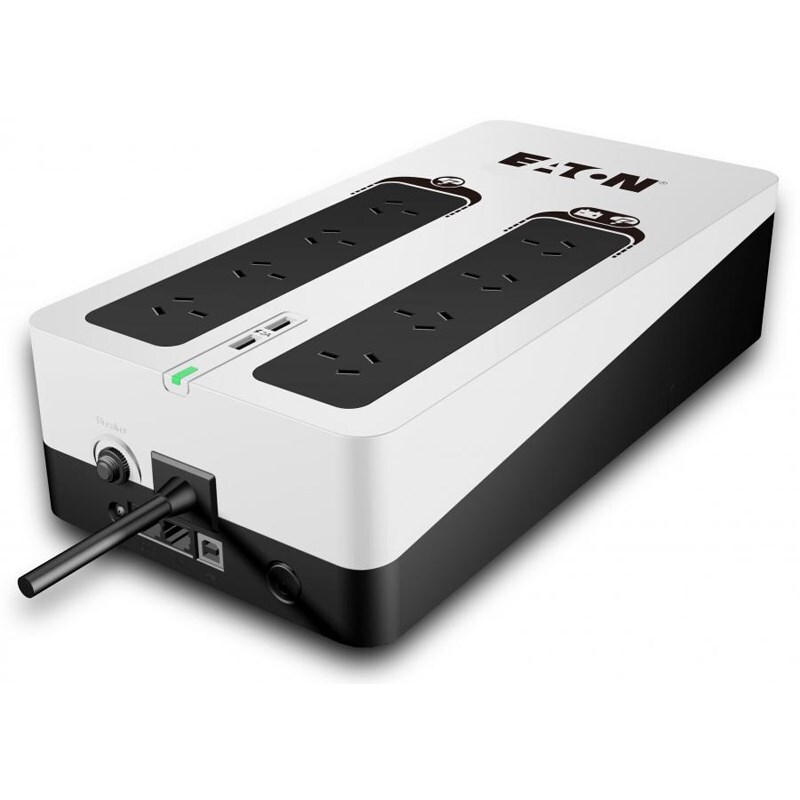

Eaton 3S850AU 850VA 510W Standby Powerboard UPS

The Eaton 3S850AU is a wall-mountable standby powerboard UPS rated at 850VA / 510W, with eight AC power outlets and two USB receptacles listed in the supplied specifications.

The source divides the AC outlets into four battery-and-surge and four surge-only positions, and lists a replaceable sealed 12V 9000mAh lead-acid battery.

850VA / 510W8 AC outlets plus 2 USB4 battery and surge outlets12-month limited warrantyDeviceDeal authorised Eaton reseller

Eaton 3S850AU 850VA 510W standby powerboard UPS

Product overview

850VA / 510W capacity

The supplied load capacity is 850VA / 510W with a 10A thermal-breaker input-protection claim in the description.

Powerboard connections

The source lists eight AC power outlets, including four battery-and-surge and four surge-only outlets, plus two USB receptacles.

Replaceable battery

The structured specification lists a sealed, replaceable 12V 9000mAh lead-acid battery.

Source review: Supplier confirmation required: the description lists 50/60Hz input frequency, while the structured specification lists 65Hz. Both values are preserved below.

Frequently asked questions

What power capacity is listed for the Eaton 3S850AU?

The supplied load capacity is 850VA / 510W.

How many receptacles are listed?

The source lists eight AC power outlets and two USB receptacles.

Is the battery replaceable?

Yes. The structured specification lists a replaceable sealed 12V 9000mAh lead-acid battery.

What warranty is supplied?

The supplied fields list a 12-month limited Eaton manufacturer warranty.

(3S850AU)

Features

Eaton 3S850AU 850VA 510W Standby Powerboard UPS

Power protection

Standby UPS
Load capacity: 850VA / 510W
10A thermal-breaker input protection stated
Single-phase operation

Outlets and connectivity

8 x AC power outlets
2 x USB receptacles
4 x battery and surge outlets
4 x surge-only outlets
USB HID-compliant port
Coax dataline protection

Battery and installation

12V 9000mAh sealed lead-acid battery
User-replaceable battery
Wall mountable
335 x 170 x 86mm
Approximate weight: 4.30kg

Confirm the input-frequency requirement because the supplied description and structured specification do not match.

Technical specifications

Eaton 3S850AU 850VA 510W Standby Powerboard UPS

General and power
Brand	Eaton
Model / SKU	3S850AU
Product type	Standby UPS
Series	3S
Load capacity	850VA / 510W
Input mains voltage stated in description	220240V
Input voltage stated in structured specification	230V AC
Output voltage values listed	220V AC; 230V AC; 240V AC
Input voltage ranges listed	168295V AC; 220240V AC; 192276V AC
Description input frequency	50/60Hz
Structured input frequency	65Hz
Input protection stated	10A thermal breaker
Outlets, protection and interfaces
Phase	Single phase
Receptacle types	USB; AC power
Battery and surge outlets	4
Surge-only outlets	4
Receptacle detail	2 x USB; 8 x AC power
Dataline protection	Coax
USB HID-compliant port	Yes
Status indicator	Battery-replacement LED
Battery and environment
Battery chemistry	Lead acid
Battery voltage	12V
Battery capacity	9000mAh
Battery characteristics	Sealed
Replaceable battery	Yes
Maximum operating temperature	40°C
Storage temperature	-25°C to 55°C
Maximum operating elevation	3km
Physical properties
Form factor	Wall mountable
Dimensions (W x D x H)	335 x 170 x 86mm
Approximate weight	4.30kg
Application types listed
Applications	Telephone; modem; network; TV; desktop computer; home appliance; home theatre; internet gateway; gaming console; video equipment; decoder; workstation; business-critical system; multimedia device; computer

SKU	3S850AU
Barcode #	743172101853
Brand	EATON
Shipping Weight	5.0700kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.390m
Shipping Cubic	0.001950000m3

Warranty information

Eaton 3S850AU 850VA 510W Standby Powerboard UPS

12-Month Limited Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a 12-month limited Eaton manufacturer warranty in Australia, as listed in the supplied product information.
