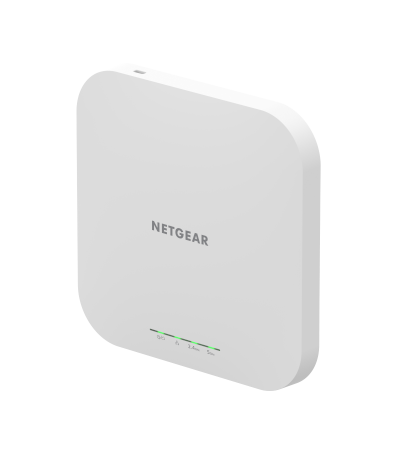

NETGEAR WAX610-100EUS
NETGEAR (WAX610) AX1800 DUAL BAND ACCESS POINT, WIFI-6, 5YR

No. of Max Users : 250

No. of Concurrent Users : 50

Ethernet port : 2.5G

Remote management : Insight or Standalone

Overview:

High Performance WiFi 6 Access Points Insight WAX615 for the Small and Medium Size Businesses

The WAX610 supports the next generation WiFi 6 smart phones, IoT devices, and notebook computers, delivering up to 40% more throughput to each individual device in the 5GHz band and 70% more throughput in the 2.4GHz band, compared to the previous generation equivalent model; provides 4x the client device connection, allowing businesses to serve more customers with better speed and less congestion.

Enjoy a 1-Year Insight subscription included with WAX610 and WAX610Y. WiFi 6 Access Points for the Insight WAX610 WAX610Y Small and Medium Size Businesses In the past several years, the WiFi industry has made progress in increasing speeds by leaps and bounds. However, capacity continues to be a challenge, namely, supporting a large number of concurrent users. This requirement is particularly acute for businesses, where very high throughput to each individual device may not be the paramount requirement. Rather, it is providing network connectivity to a large number of client devices, with good throughput, stable connection, and robust responses to environmental changes that is most important.

The WAX610Y is the outdoor version of the WAX610. WAX610Y is waterproof and dust proof protected by a P2i nano-coating and meets the IP55 rating to withstand the rain and outdoor atmosphere.

Business Features for higher speed, greater coverage and higher density WiFi

Easy to Configure

• Business class WiFi based on next generation 802.11ax WiFi 6 technology on both 5GHz and 2.4GHz bands. (Backward compatible to 802.11b/g/n/a/ac)
• Dual band 2x2 (2.4GHz and 5GHz) 4 streams of data for an aggregate throughput of up to 3Gbps
• Instant WiFi Mesh forming wireless backhaul with other WAC540, WAC564, WAX610, WAX610Y, WAX620, WAX630, or WAX630E units to form a WiFi mesh network
• 160MHz channelization on App managed. Faster installation 5GHz allows 100% more throughput than WiFi 6 Release 1 80MHz channelization
• 4 times more client device supported
• Enterprise security and Enhanced Open security, such as WPA3/WPA3 Enterprise, 8x SSID and VLAN
• Basic Service Set Coloring (BSS Coloring) enabling significant improvement in radio frequency channel effeciency and reduction of interference
• Orthogonal Frequency Division Multiple Access (OFDMA) allowing simultaneous services to multiple devices in the same channel thus improving bandwidth efficiency and reducing latency
• 2.5GbE port, backward compatible with 100/1000Mbps Ethernet, supported by NETGEAR GSM4210P, MS510TXPP and other multi-gig Ethernet switches
• Target Wake Time (TWT) allows more efficient power usage resulting in longer battery life in WiFi 6 client devices
• Beamforming+; Advanced 6th generation WiFi technology such as up and downstream MU-MIMO
• One 802.3at 2.5Gbps PoE port: Remote management and monitoring from NETGEAR Insight app or Cloud portal for unrivaled management experience of your wireless network
• App managed for faster installation through NETGEAR Insight app or Cloud portal with no additional hardware needed
• Market leading 5-year warranty with 24/7 chat support for peace of mind

Features:

Performance Features

Powerful Business WiFi

Faster and more reliable WiFi due to higher throughput and more coverage with the use of both 2.4Ghz and 5Ghz bands simultaneously

Ideal for High Density Environments

Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.

Easy Wiring

Extra Wired 2.5Gbps Ethernet port that’s backward compatible with 100/1000Mbps Ethernet for easy wiring.

Greater Network Capacity

Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.

Seamless, Mesh WiFi

Wire-free installation with other WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.

Ease of Use

Easy DIY Set Up

Setup, configure, and manage with the Insight app.

Flexible Mounting

Easy to securely install on the wall or a suspended ceiling with included hardware.

Security Features

8 Wireless Networks (SSIDS)

Separate and secure networks for admin, guests, employees and IoT like cameras, locks and more.

Separate VLANs

Keep admin, employees, visitors, HR departments safely separated and segregated.

Peer-to-peer Separation

Prevent guests from accessing other guests devices on same VLAN.

(WAX610-100EUS)

Features:

WiFi 6 Dual Band AX1800 Access Point, up to 1.2Gbps in 5GHz band and 600Mbps in 2.4GHz
Multi-Gigabit Speed and PoE — Includes a 2.5 Gbps Ethernet port with PoE for high speed and easy wiring (Ideal switches to power WAX610 are GSM4210P and MS510TXPP)
Faster and more reliable WiFi due to higher throughput and more coverage with the use of both 2.4Ghz and 5Ghz band simultaneously.
Ideal for high density WiFi environments, supported by robust and seamless roaming between a large number of WAX610 and other NETGEAR Business WiFi APs
High Performance — Get 4 Streams of WiFi 6 and speeds up to 1.8 Gb
Greater Capacity and Battery Life — Enjoy 4X more connection capacity than WiFi 5 with improved efficiency for longer device battery life.
Compatible with WAC505/510/540 specifically but not WiFi 5 APs in general.
Dual-Band Wireless Mesh – wire-free installation with other WAX610, WAX610Y, WAC540 or WAC564. One of the bands is then shared between the wireless backhaul and the devices.
Ultimate Speed and Capacity with WiFi 6
Offer customers and employees the best WiFi with higher speeds, less congestion, higher device density... Read More
Up to 70% higher speed for client devices
4x more client devices per unit (when all devices support WiFi 6)
Dual-band 4-stream: each unit can deliver up to 1.8 Gbps of data throughput
- 2 streams: 5GHz band
- 2 streams: 2.4GHz band
One 2.5G Ethernet port for multi-gig wired network connectivity
Enhanced security features
SMB IT budget
Centralized remote monitoring and management

WiFi Security for your Business

Small and medium organizations now enjoy enterprise level security without the enterprise budget. Insight helps you configure and maintain the security of the network easily
WPA3 for the highest level of WiFi connection security
8 separate wireless networks (SSIDs) can be used for administration, employees, guests and IoT devices (WiFi surveillance cameras, thermostats, door locks and sensors)
Separate VLANs for network separation and segregation between admin network, employee, visitor, HR, Finance, etc.
Peer-to-peer separation: Total user separation on the same VLAN, preventing guest accessing other guests’ devices
Dynamic VLAN per RADIUS user assignment, a feature specially designed for businesses who use RADIUS to efficiently manage user accounts and access (Note: Feature available in October 2020 firmware release)

Remote monitoring and management with NETGEAR Insight

Instant discovery & set-up
Local and Cloud monitoring and management through the Insight app or Cloud Portal
Remote access and multi-device configuration
No additional Cloud controller, appliance, network manager, or PC/server is necessary
QR code intial configuaration for instant installation

Specifications:

NETGEAR WAX610-100EUS Specifications
Physical Specification	Dimensions (WxDxH) @mm : 160.9 x 160.9 x 33.25 mm (6.33 x 6.33 x 1.30 in) Weight (kg) : 412 g (0.90 lb)
Technical Specification	Speed : AX1800 # of Max Users : 250 # of Concurrent Users : 50 Ideal Use : Small and Medium Business Ethernet port : 2.5G PoE : Yes Remote management : Insight or Standalone Third party support : Domotz
Support & Warranty	Hardware Limited Warranty 3 years Next-Business-Day (NBD) Replacement 5 years

SKU	WAX610-100EUS
Barcode #	606449152579
Brand	Netgear
Shipping Weight	1.3000kg
Shipping Width	0.390m
Shipping Height	0.350m
Shipping Length	0.430m
Shipping Cubic	0.058695000m3
