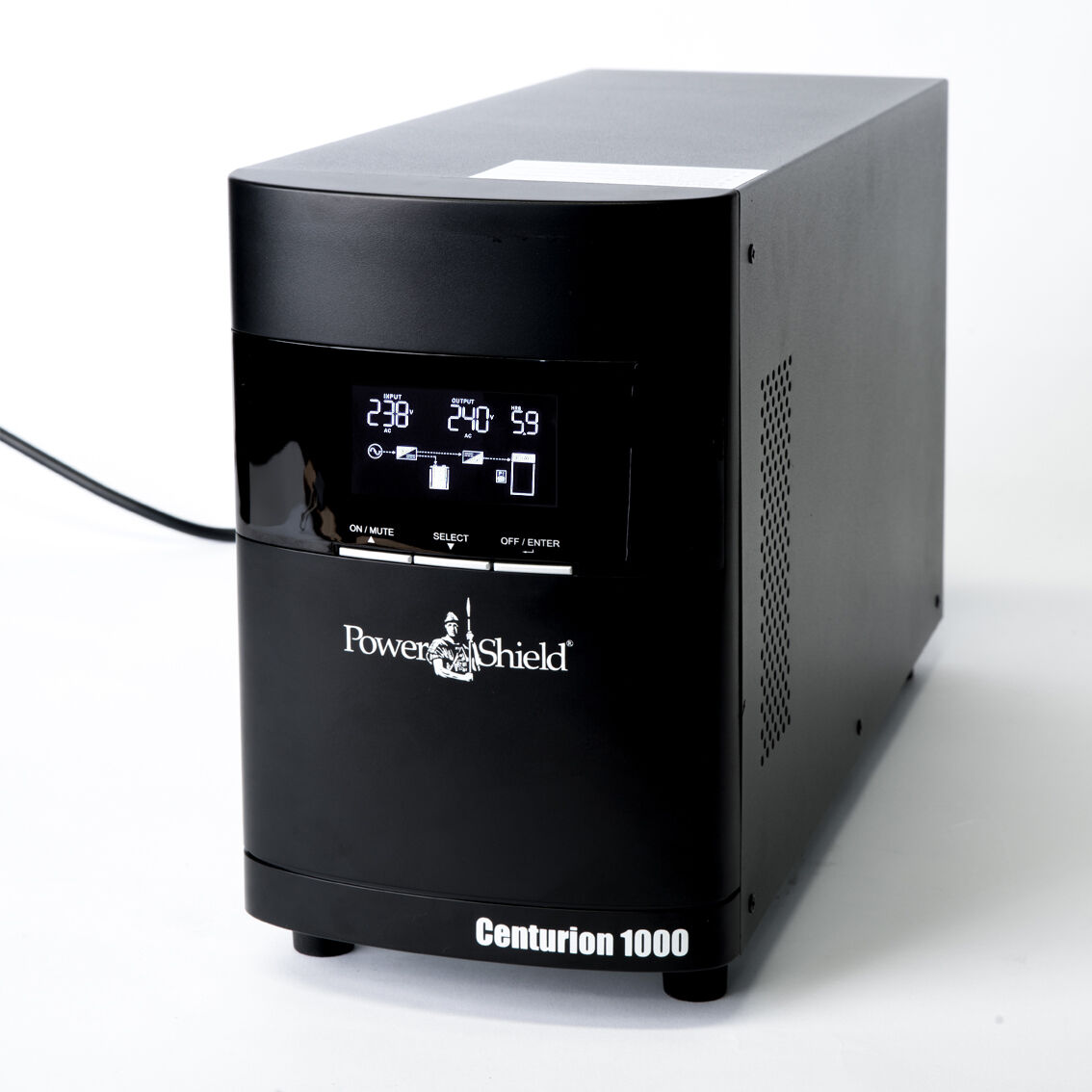

PowerShield Centurion 1000VA True On-Line Tower UPS PSCE1000 PSCE1000
Emergency power off function (EPO)
-
SKU: PSCE1000
- Pick Up Available
- Australian Warranty
- Checkout Securely
The PowerShield Centurion is designed to electrically protect, servers, communication, industrial, medical and other mission critical equipment. The PowerShield Centurion is a True On-Line Double Conversion UPS designed to guarantee trouble free operation of protected equipment in harsh electrical environments. Versatile management and hardware options offer the flexibility to build up a power protection solution to fit any application. The PowerShield Centurion range includes programmable outlets so less important loads can automatically shed sometime during battery backup. This will leave additional battery back-up reserve for the equipment that is most critical.
- 1000VA / 800 Watts
- True On-Line Double Conversion
- Wide input voltage range (110-300 VAC)
- Input power factor correction 0.98
- 50Hz/ 60Hz frequency converter mode
- Programmable power outlets
- Emergency power off function (EPO)
- Eco-mode operation for energy efficiency
- Generator compatible
- Extended battery backup times with daisy chained battery modules
- Communication: USB, RS232
- Optional SNMP and AS400 dry relays available
- Optional EMBS - External Maintenance Bypass Switch available for all models
- N + X parallel redundancy available for 6kVA & 10kVA models
- Monitoring and Shutdown Software included
(PSCE1000)
Technical Details
| Model Number | PSCE1000 |
|---|---|
| Capacity | 1000VA / 900W |
| Topology | True online double-conversion |
| Voltage | 200 / 208 / 220 / 230 / 240 Vac |
| Voltage Range | 110-300 VAC ?± 5% at 50% load 160-300 VAC ?± 5% at 100% load |
| Frequency Range | 40Hz~70Hz |
| Output Voltage | 240Vac (200 / 208 / 220 / 230 / 240 Vac - Selectable) |
| Frequency | 47~53Hz or 57~63Hz (Auto detect) |
| Frequency Range (Batt. Mode) | 50Hz ?± 0.1Hz or 60Hz ?± 0.1Hz |
| Transfer Time | 4 ms (typical) |
| Waveform (Batt. Mode) | Pure Sinewave |
| Australian Outlets - UPS & Surge Protection | 2 |
| Battery Type & Number | 12V*9AH(x3) |
| Typical Recharge Time | 4 hours recover to 90% capacity |
| Full Protection | 1248 Joules / 39000 Amps |
| Interface | USB and RS232 as standard. Intelligent slot for PSSNMPV4 or PSAS400 dry contact or PSMBUS |
| Software | Power Shield Netguard?® Software - supports Windows based operating Systems, Linux, Unix & Mac |
| HID | Supports Windows, Apple, Linux, NAS and various industrial controllers |
| LCD Alarm | UPS Status, Load Level, Battery Level, Input/Output Voltage, Battery Time Remaining and Fault Indica |
| Audible Alarm | Battery Mode, Low Battery, Overload, Fault |
| Dimension L x W x H (mm) | 396 x 145 x 240 |
| Net Weight (kgs) | 12.5 |
| Temperature | 20 - 95% (RH non-condensing) @ 0 - 40?°C |
| Noise Level | Less than 50dBA @ 1metre |
| Safety/EMC | EN62040 - 1 - 1 2003, IEC60950 - 1 - 1 |
| RoHS | Directive 2001 / 65 / EU |
| Warranty | 2 Year ARW |
| SKU | PSCE1000 |
| Barcode # | 9346909000194 |
| Brand | PowerShield |
| Shipping Weight | 15.4000kg |
| Shipping Width | 0.480m |
| Shipping Height | 0.240m |
| Shipping Length | 0.340m |
| Shipping Cubic | 0.039168000m3 |
