PowerShield Centurion RT 3000VA Long Run Model True Online Double Conversion Rack / Tower UPS. PSCERT3000L
Larger internal charger for connected battery modules.
-
SKU: PSCERT3000L
Don't pay: $2,904.00
$2,423.00
SAVE $481.00 (17%)
You Might Want To Add
- Pick Up Available
- Australian Warranty
- Checkout Securely
As a true online double conversion UPS the Centurion RT is our highest single phase power density UPS. Boasting an output power factor of 0.9, this will fully protect mission critical devices as it can support larger loads than UPS products of an equal VA rating. The Centurion RT has an energy saving Advanced ECO mode, which allows the unit to operate at very high efficiency, up to 98%. When the utility mains input voltage is within the ECO range the UPS saves energy by passing the mains supply directly through to the load, while the inverter continues to operate in a passive mode.
- No Internal Batteries - must use an external battery module.
- True double-conversion
- User-friendly and electronic easy-shift LCD display

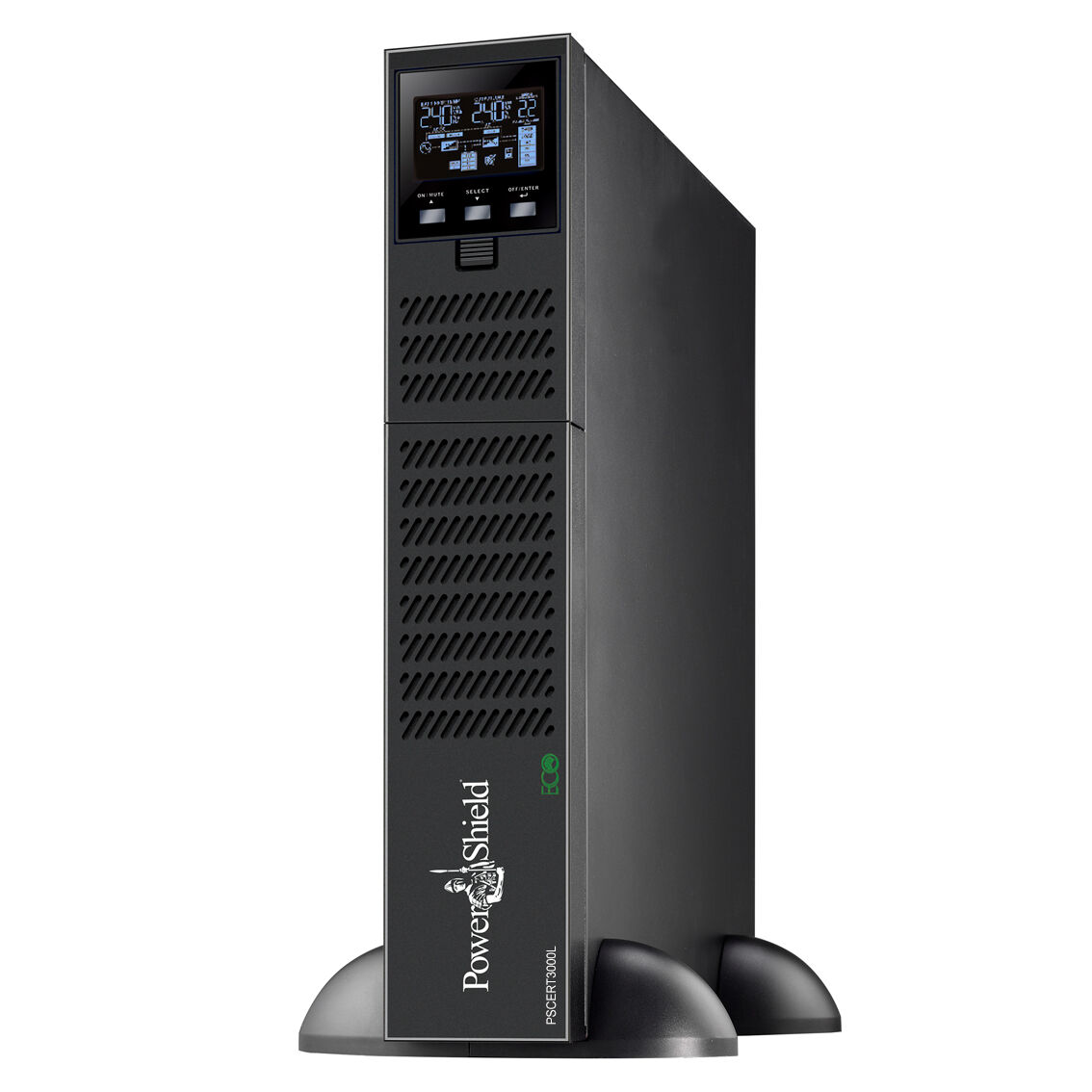

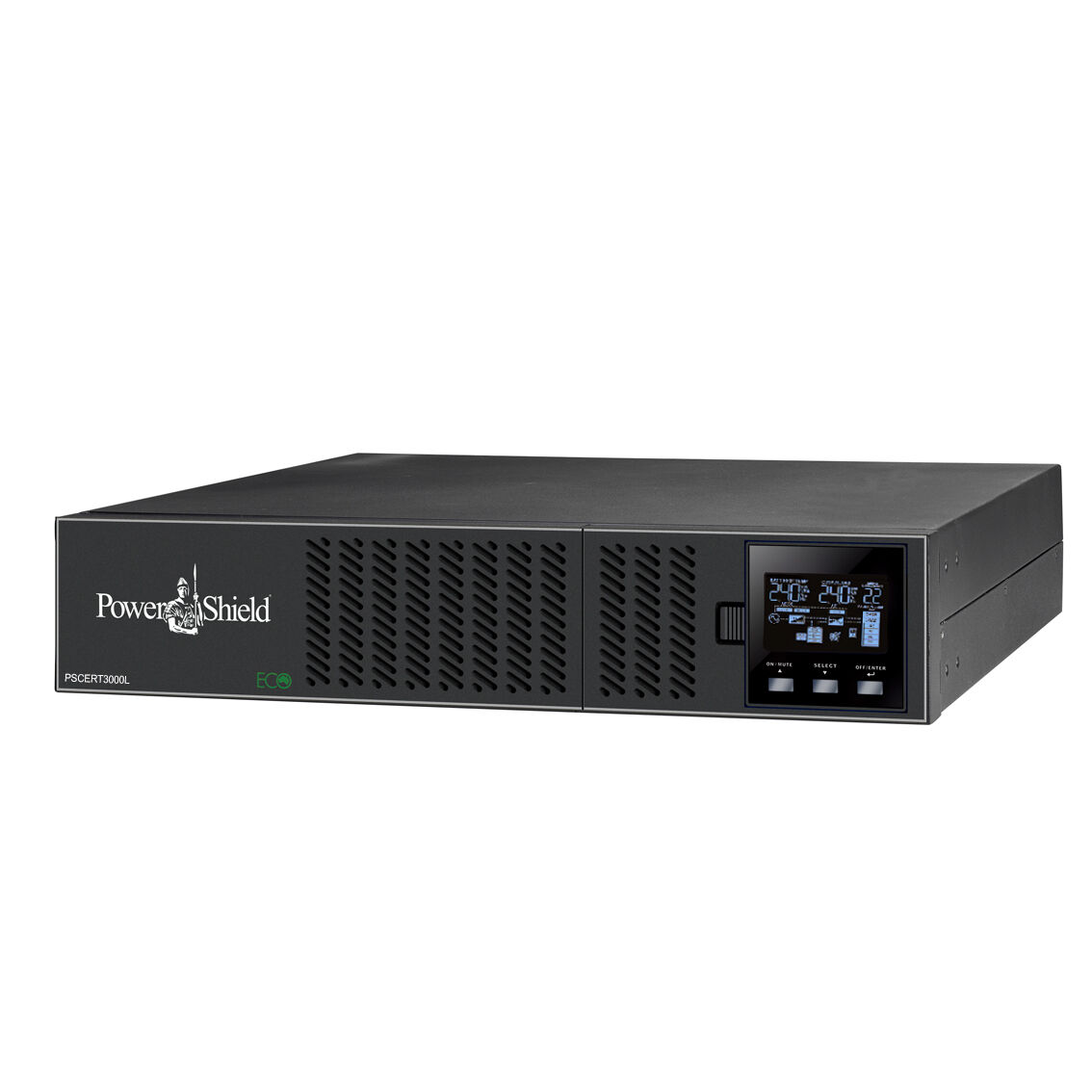

- Rack or Tower design
- Advanced ECO mode for energy saving
- Programmable power management outlets
- Hot swappable battery design
- Ideal for medium density power protection
- Extra-large internal battery charger
(PSCERT3000L)
Technical Details
| Model Number | PSCERT3000L |
|---|---|
| Capacity | 3000VA/2700W |
| Topology | True online double- conversion,Pure Sine Wave |
| Voltage | 160Vac / 140Vac / 120 / 110Vac ?± 5 % |
| Frequency Range | 40Hz - 70Hz |
| Output Voltage | 240Vac (Selectable 200/208/220/230/240Vac) |
| Frequency Range (Batt. Mode) | 50Hz or 60Hz ?±1Hz |
| Transfer Time | 4ms (Typical) |
| Waveform (Batt. Mode) | Pure Sine Wave |
| Australian Outlets - UPS & Surge Protection | 2 |
| Battery Type & Number | (12 V*9AH) 6 |
| Typical Recharge Time | 4 hours recover to 90% capacity (for standard model only) |
| Full Protection | Overload, discharge, thermal, short circuit and overcharge protection |
| Surge Protection | 984 Joules / 22000 Amps |
| Interface | USB or RS232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact |
| Software | PowerShield?® NetGuard?® software - supports Windows, Linux, Unix and Mac based operating systems |
| HID | Supports Windows, Apple, Linux, NAS and various industrial controllers |
| LCD Alarm | UPS Status, Load & Battery Level, Input/Output Voltage, Batt. Time Remaining and Fault Indicators |
| Audible Alarm | Battery Mode, Bypass Mode, Low Battery (Batt. Mode), Fault, Overload |
| Dimension L x W x H (mm) | 600 x 438 x 88 |
| Net Weight (kgs) | 26.8 |
| Temperature | 0 - 40?°C |
| Humidity | 20 - 90% (RH Non-condensing) |
| Noise Level | < 50dBA @ 1 Meter |
| Safety/EMC | EN62040-1-1 2003, IEC60950-1-1 / EN62040-2 2006 |
| RoHS | Directive 2011/65/EU |
| Warranty | 2 Years |
| SKU | PSCERT3000L |
| Barcode # | 9346909000316 |
| Brand | PowerShield |
| Shipping Weight | 24.0000kg |
| Shipping Width | 0.610m |
| Shipping Height | 0.770m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.093940000m3 |
