PILOT DC MINI 36

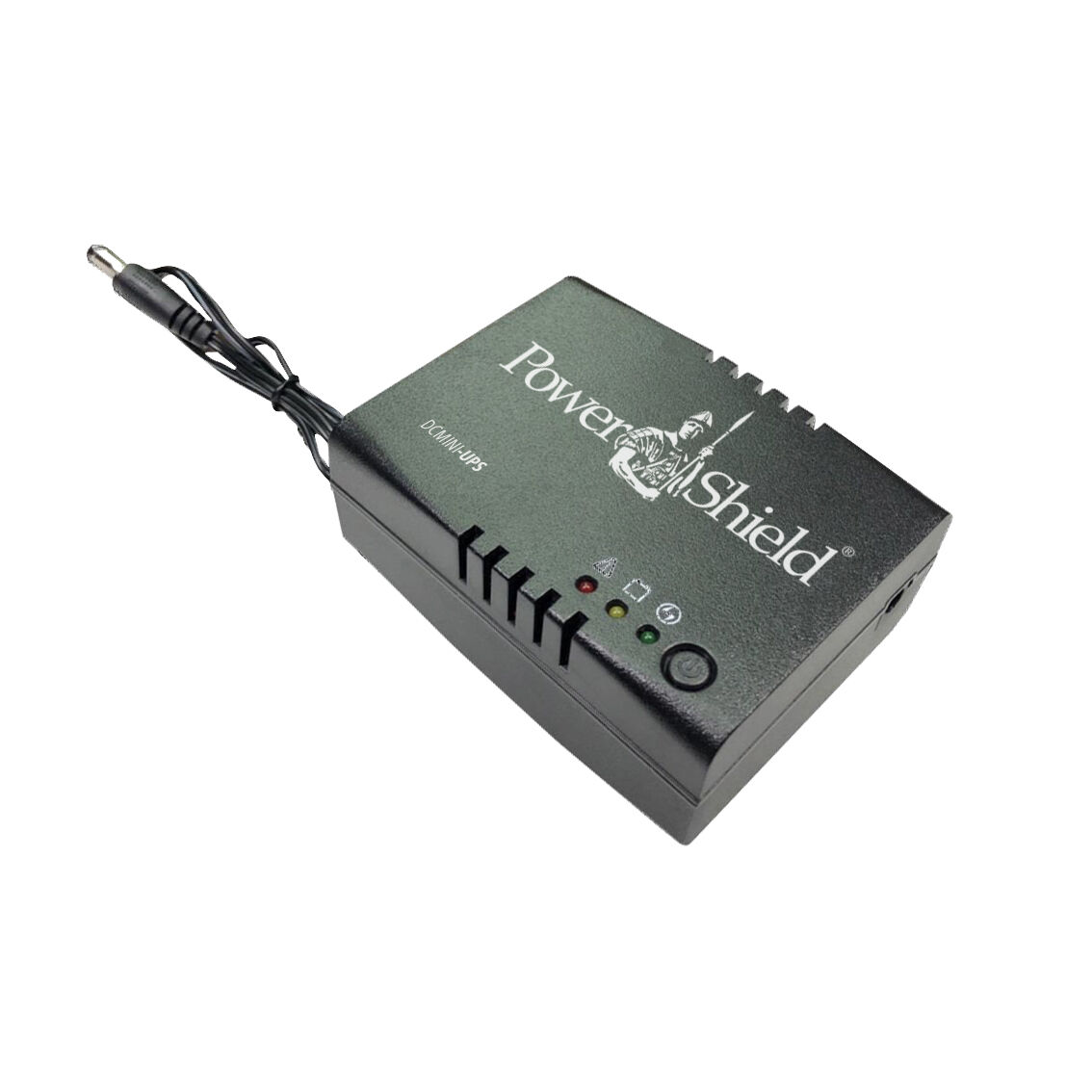

Name: PowerShield DC Mini 36 UPS - 36W/24VA
Brand: PowerShield
SKU: PSDCM36
Price: 129 AUD
Availability: OutOfStock

12V | 15V | 19V | 24V

The PowerShield DC Mini 36 is an inline DC UPS designed to provide emergency power backup to DC powered equipment including modems, routers, VOIP phones, surveillance equipment, alarm systems and many other telecommunications devices.

FEATURES

Includes 4 x Li-Ion batteries

Auto start when plugged in

Microprocessor control

Multifunction LED indicator and manual Power Off Switch

Overload, short circuit, overcharge and over-discharge protection

Long backup time

Additional terminal output for DIY builds

Power Connectors: Complete set of DC Power Jacks for adapters allowing routers and other equipment to run using DC powered port outputs.

(PSDCM36)

PILOT DC SPECIFICATIONS

MODEL	Pilot DC Mini 36
Model Number	PSDCM36
INPUT
Input Voltage	100-240VAC
Frequency Range	50/60Hz Auto Detection
Current	30W = 3A / 2A / 1.8A / 1.5A / 1.2A
OUTPUT
Output DC	12V / 24VAC
BATTERY
Battery Type	Lithium-ion 18650 Type Battery (4 x 2600mAh)
Backup Time	30W = Full 20 minutes – 100% load 65 minutes
PROTECTION
Protection	Short circuit, output short, transformer over voltage, over charging, over discharging
INDICATORS
LED	Yes/Auto, Battery Volts, Fault Btn
PHYSICAL
Dimensions D x W x H (mm)	107.5 x 80 x 43
OPERATING ENVIRONMENT
Humidity	5% to 90% non-condensing
Operating Temperature	0°C – 40°C
RUNTIME
Small Router Backup Time	24 hours
Medium Access (12 Watts)	3 hours

Product specifications are subject to change without prior notice.

SKU	PSDCM36
Barcode #	9346909001078
Brand	PowerShield
Shipping Weight	0.4000kg
Shipping Width	0.110m
Shipping Height	0.130m
Shipping Length	0.050m
Shipping Cubic	0.000715000m3
