StarTech Connect a DVI display for an extended desktop multi-monitor USB solution USB2DVIE3
Model # USB2DVIE3
-
SKU: USB2DVIE3
- Pick Up Available
- Australian Warranty
- Checkout Securely

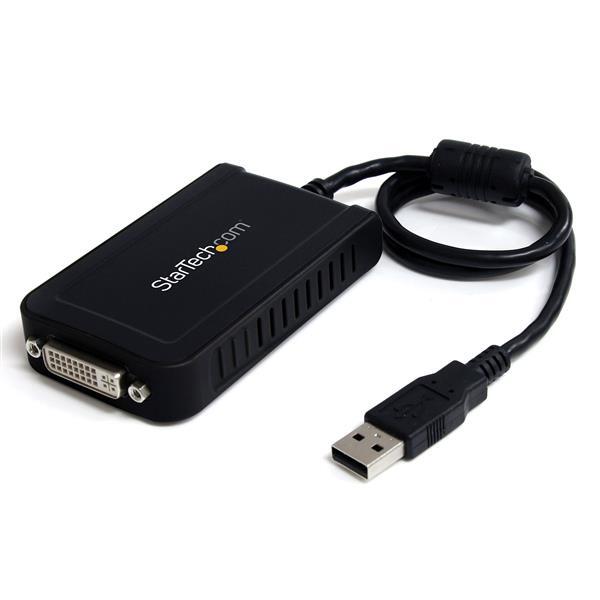

The USB2DVIE3 USB DVI Video Adapter offers a perfect external multi-monitor solution, enabling you to add a high-resolution (up to 1920x1200) external DVI output to your desktop or laptop computer system using an available USB 2.0 port.
A cost-effective solution for systems that lack the outputs required for a multi-monitor setup, this high-performance USB to DVI adapter can be used to mirror your primary display and show the same image on both screens, or extend your desktop to double your workspace.
This small form factor USB video adapter can be used with up to 4 additional (5 total) USB2DVIE3 USB video adapters, creating multiple DVI connections to add additional displays quickly and easily - all without having to open the computer case to add extra video cards.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Add a secondary display adapter and extend your desktop display without taking apart your computer to install a new video card
- Add multiple (up to five) monitors/projectors to your computer setup using one USB2DVIE3 device for each additional display
- View large or multiple spreadsheets that span multiple displays
(USB2DVIE3)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| AV Input | USB 2.0 | |
| AV Output | DVI | |
| Chipset ID | Trigger - T2-285B | |
| Industry Standards | USB 2.0 Compliant | |
| Memory | 32MB | |
| USB Pass-Through | No | |
| Performance | ||
| General Specifications | This USB video adapter uses a Trigger family chipset. If youÕre connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset. | |
| MTBF | 200,000 Hours | |
| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 | |
| Wide Screen Supported | Yes | |
| Connector(s) | ||

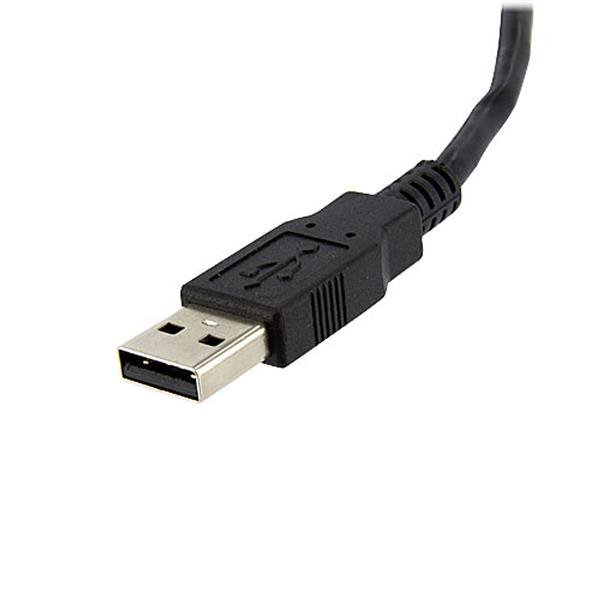

| Connector A | 1 - USB Type-A (4 pin) USB 2.0 Male Input | |
| Connector B | 1 - DVI-I (29 pin) Female Output | |
| Software | ||
| OS Compatibility | Windows¨ 10 (32/64) Windows 8 / 8.1 (32/64) Windows 7(32/64) Windows Vista (32/64) Windows XP (32/64) | |
| Special Notes / Requirements | ||
| Note | This USB video adapter uses a Trigger family chipset. If youÕre connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as DisplayLink¨ or Fresco Logic¨ | |
| Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources | ||
| This USB video adapter is not intended for graphical intensive applications, such as gaming | ||
| System and Cable Requirements | System Processor: Quad Core 2.4GHz (i5 recommended) System Memory: 4GB | |
| Environmental | ||
| Humidity | <85% RH non condensing | |
| Operating Temperature | -10¡C to 55¡C (14¡F to 131¡F) | |
| Storage Temperature | -25¡C to 75¡C (-14¡F to 167¡F) | |
| Physical Characteristics | ||
| Cable Length | 19.7 in [500 mm] | |
| Color | Black | |
| Enclosure Type | Plastic | |
| Product Height | 0.7 in [1.8 cm] | |
| Product Length | 3.5 in [88 mm] | |
| Product Width | 2.1 in [52.5 mm] | |
| Weight of Product | 3.8 oz [108 g] | |
| Packaging Information | ||
| Package Height | 1.6 in [40 mm] | |
| Package Length | 8.4 in [21.3 cm] | |
| Package Width | 5.7 in [14.6 cm] | |
| Shipping (Package) Weight | 10.7 oz [304 g] | |
| What's in the Box | ||
| Included in Package | 1 - USB to DVI adapter | |
| 1 - DVI to VGA adapter | ||
| 1 - driver and software CD | ||
| 1 - instruction manual | ||
| SKU | USB2DVIE3 |
| Barcode # | 65030844161 |
| Brand | Startech |
| Shipping Weight | 0.2900kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.040m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.001260000m3 |
