StarTech Connect an HDMI¨ and DVI-I-equipped display through a USB 3.0 port, for a 1080p HD external multi-monitor solution USB32HDDVII
Model # USB32HDDVII
-
SKU: USB32HDDVII
- Pick Up Available
- Australian Warranty
- Checkout Securely

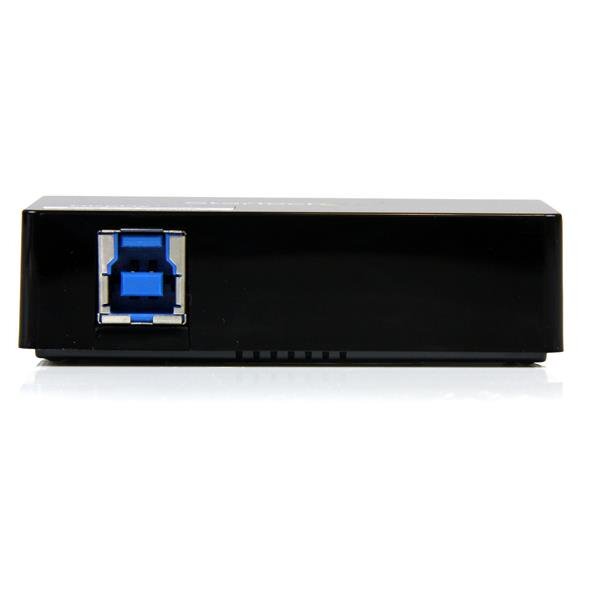

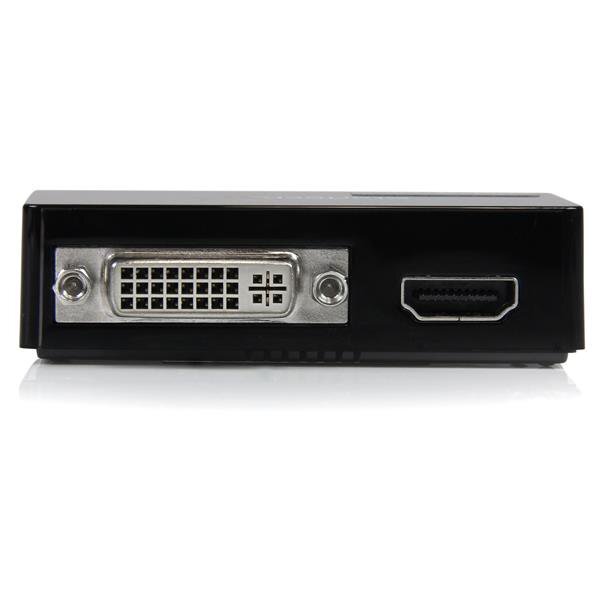

The USB32HDDVII USB 3.0 to HDMI® and DVI-I Dual Head Adapter turns an available USB 3.0 port into one DVI-I or VGA port (DVI to VGA adapter included) and one HDMI® output, with support for high-definition 1080p and 1920x1200 video and 5.1 surround sound audio (from HDMI® port only). Each display can simultaneously support the maximum resolution of 2048x1152 @ 60Hz.
The adapter delivers a convenient external video solution that makes it easy to add multi-monitor capability to a USB enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the USB video adapter functions as a convenient external graphics card that eliminates having to open the computer case for video card installation. The adapter delivers smooth, high definition content to multiple displays and can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop onto a second or third monitor to double or triple your workspace and increase your productivity.
The USB 3.0 HDMI® and DVI-I Adapter is backed by a StarTech.com 2-year warranty and includes free lifetime technical support.
(USB32HDDVII)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Audio | Yes | |
| AV Input | USB 3.0 | |
| AV Output | DVI | |
| HDMI | ||
| Chipset ID | DisplayLInk - DL-3900 | |
| Industry Standards | Standard HDMI¨, DVI-I, SuperSpeed USB 3.0, USB 2.0 | |
| Memory | 1 GB | |
| USB Pass-Through | No | |
| Performance | ||
| Audio Specifications | 5.1-Channel Surround (48Khz) | |
| General Specifications | This USB video adapter uses a DisplayLink family chipset. If youÕre connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset. | |
| Each display can simultaneously support the maximum resolution of 2048x1152 @ 60Hz | ||
| Maximum Digital Resolutions | 2048x1152 @ 60Hz | |
| Note | If using OS X 10.8, Apple update 10.8.3 must be installed before installing DisplayLink software. 10.8.3 fixes several serious OS X bugs exposed when DisplayLink software is installed. | |
| Supported Resolutions | Widescreen(16/32 bit): 2048x1152, 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1368x768, 1366x768, 1360x768, 1280x800, 1280x768, 1280x720, 1024x600, 848x480, 800x480, 720X480 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x870, 1152x864, 1024x768, 832x624, 800x600, 768X567, 640X480 | |
| Wide Screen Supported | Yes | |
| Connector(s) | ||
| Connector A | 1 - USB Type-B (9 pin) USB 3.0 Male Input | |
| Connector B | 1 - DVI-I (29 pin) Female Output | |
| 1 - HDMI (19 pin) Female Output | ||
| Software | ||
| OS Compatibility | Windows¨ 2000, XP, Vista, 7, 8, 8.1, 10 macOS 10.6 - 10.12, 10.14 Ubuntu 14.04, 16.04, 18.04 Chrome OSª v55+ | |
| Special Notes / Requirements | ||
| Note | This USB video adapter uses a DisplayLink¨ family chipset. If youÕre connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as Trigger or Fresco Logic¨ | |
| Connect a maximum of three USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources | ||
| This USB video adapter is not intended for graphical intensive applications, such as gaming | ||
| System and Cable Requirements | System Processor: Quad Core 2.4GHz (i5 recommended) System Memory: 4GB | |
| Not intended for gaming | ||
| Power | ||
| Power Source | USB-Powered | |
| Environmental | ||
| Humidity | 20¡C to 80¡C (68¡F to 176¡F) | |
| Operating Temperature | 0¡C to 55¡C (32¡F to 95¡F) | |
| Storage Temperature | -5¡C to 40¡C (23¡F to 104¡F) | |
| Physical Characteristics | ||
| Cable Length | 6.3 in [160 mm] | |
| Color | Black | |
| Enclosure Type | Plastic | |
| Product Height | 0.7 in [1.9 cm] | |
| Product Length | 2.9 in [73 mm] | |
| Product Width | 2 in [50 mm] | |
| Weight of Product | 1.5 oz [43 g] | |
| Packaging Information | ||
| Package Height | 1.6 in [40 mm] | |
| Package Length | 5.7 in [14.5 cm] | |
| Package Width | 8.1 in [20.6 cm] | |
| Shipping (Package) Weight | 8.5 oz [240 g] | |
| What's in the Box | ||
| Included in Package | 1 - USB 3.0 to HDMI¨/DVI-I Graphics Adapter | |
| 1 - DVI to VGA Adapter | ||
| 1 - USB 3.0 Cable (40.5 inches) | ||
| 1 - Driver CD | ||
| 1 - Installation guide | ||
| SKU | USB32HDDVII |
| Barcode # | 65030847667 |
| Brand | Startech |
| Shipping Weight | 0.2400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001000000m3 |
