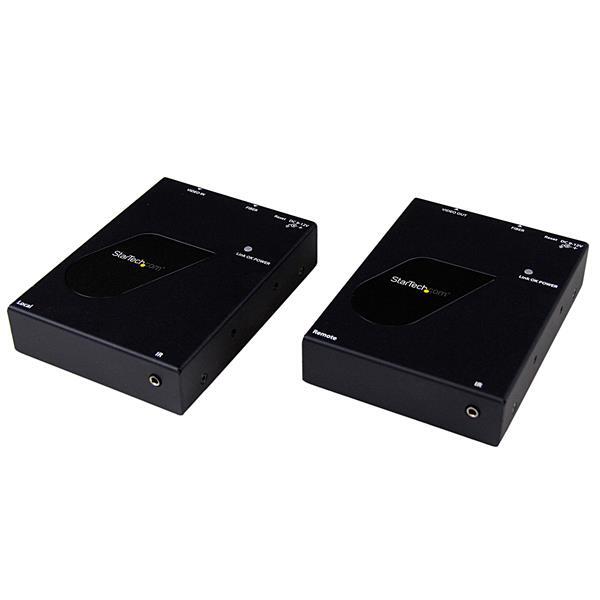

StarTech Extend HDMI video and audio over SC Multi Mode fiber, with Infrared control ST121HDFXA
Model # ST121HDFXA
-
SKU: ST121HDFXA
- Pick Up Available
- Australian Warranty
- Checkout Securely
HDMI Over Fiber Extender with IR Control Ð SC Fiber - 2600ft (800m) - 1920x1200/1080p
The ST121HDFXA is a long-range HDMI video extender kit that uses SC fiber optic cable to extend video/audio from an HDMI-equipped device to a remote display up to 2600 feet (800 Meters) away. The extender supports full High-Definition video (1920x1200 / 1080p) and includes both the transmitter and receiver, for a complete ready-to-use digital signage solution.
Not only is this an incredibly long range solution that can extend an HDMI signal across or between buildings, but because fiber optics transmit data using light rather than copper, it will not cause or be effected by electromagnetic Interference (EMI).
For convenient, time-saving control of the media source, the HDMI extender also offers Infrared (IR) extension, which enables you to control the HDMI audio-video source from either end of the connection. The kit also includes optional mounting hardware for a clean and professional installation.
The ST121HDFXA HDMI over Fiber Optic Extender kit is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
Applications
- Extend an HDMI video source in a hospital, with no EMI (electromagnetic interference)
- Connect a video source to a display across a large shopping complex
- Optimize placement of your demo stations at tradeshows and in auditoriums
Product Numbers
Tech Data
11118825
ASI
139063
Ingram Micro USA
RM3076
SYNNEX US
STA-ST121HDFXA
UPC Code
065030849982
(ST121HDFXA)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Audio | Yes | |
| Cabling | Fiber Optic | |
| Daisy-Chain | No | |
| Ports | 1 | |
| Rack-Mountable | Yes | |
| Performance | ||
| Audio Specifications | Supports Dolby¨ TrueHD, DTS-HD MA | |
| IR Interface | Bi-directional 38Khz / ±10¡ / 5M | |
| Max Distance | 800 m / 2600 ft | |
| Maximum Cable Length | 2599.3 ft [792.5 m] | |
| Maximum Data Transfer Rate | HDMI¨ - 3.4Gbps | |
| Maximum Digital Resolutions | 1080p @ 60Hz, 48-bit | |
| Supported Resolutions | 50 / 125 Multimode cabling 800 m at 1080p 1200 m at 1080i 62.5 / 125 Multimode cabling 350 m at 1080p 450 m at 1080i | |
| Wide Screen Supported | Yes | |
| Connector(s) | ||
| Local Unit Connectors | 1 - HDMI (19 pin) Female | |
| 1 - Fiber Optic SC Duplex Female | ||
| 1 - IrDA (Infrared, SIR/FIR) Female | ||
| Remote Unit Connectors | 1 - HDMI (19 pin) Female | |
| 1 - Fiber Optic SC Duplex Female | ||
| 1 - IrDA (Infrared, SIR/FIR) Female | ||
| Special Notes / Requirements | ||
| Note | If your video source is HDCP encrypted, your connected display MUST be HDCP compliant. If the extender detects a non-HDCP compliant display while youÕre extending an HDCP encrypted video source, the content will not display | |
| System and Cable Requirements | Multi-mode fiber cabling (50/125 or 62.5/125) terminated with SC duplex connectors, is required to connect the transmitter to the receiver. | |
| Power | ||
| Center Tip Polarity | Positive | |
| Input Voltage | 100 - 240 AC | |
| Output Current | 1.5A | |
| Plug Type | M | |
| Power Consumption (In Watts) | 18 | |
| Power Source | 2 AC Adapters Included | |
| Environmental | ||
| Humidity | 0-80% | |
| Operating Temperature | 0¡C to 40¡C (32¡F to 104¡F) | |
| Storage Temperature | -10¡C to 60¡C (14¡F to 140¡F) | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Steel | |
| Product Height | 1 in [2.6 cm] | |
| Product Length | 5.1 in [12.9 cm] | |
| Product Width | 3.8 in [97 mm] | |
| Weight of Product | 16.1 oz [457 g] | |
| Packaging Information | ||
| Package Height | 3.4 in [86 mm] | |
| Package Length | 11.9 in [30.1 cm] | |
| Package Width | 9.6 in [24.4 cm] | |
| Shipping (Package) Weight | 4.4 lb [2 kg] | |
| What's in the Box | ||
| Included in Package | 1 - Local HDMI¨ Extender Unit | |
| 1 - Remote HDMI¨ Receiver Unit | ||
| 1 - IR Receiver Cable | ||
| 1 - IR Transmitter Cable | ||
| 2 - Mounting Brackets | ||
| 1 - 7 ft [2.1 m] Multi-mode SC-SC duplex Fiber Optic cable | ||
| 2 - Foot Pad Set | ||
| 2 - Universal Power Adapter NA / UK / EU | ||
| 1 - User Manual | ||
| SKU | ST121HDFXA |
| Barcode # | 65030849982 |
| Brand | Startech |
| Shipping Weight | 2.0500kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.290m |
| Shipping Cubic | 0.001450000m3 |
