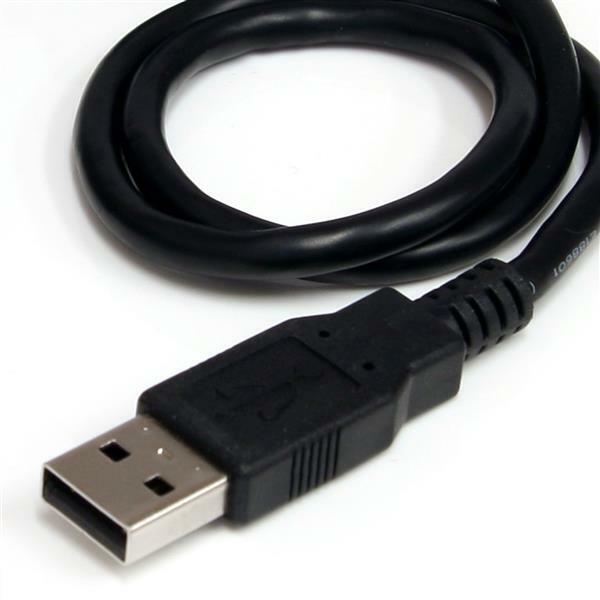

StarTech USB to VGA Multi Monitor External Video Adapter - USB2VGAE2
Model # USB2VGAE2
-
SKU: USB2VGAE2
- Pick Up Available
- Australian Warranty
- Checkout Securely
The USB2VGAE2 USB to VGA external video adapter is the perfect multi-monitor VGA solution for office applications and Internet browsing.
The USB video adapter features a small form factor and enables a USB 2.0 port to be used with a VGA port. A cost-saving multi-monitor or dual display option that can be used as an external graphics card for either laptop or desktop applications.
The USB video adapter can be used with up to four additional (five total) USB2VGAE2 USB video adapters, creating multiple VGA connections that can be used to further extend or mirror the desktop shown on the existing display - all without having to open the computer case to add extra video cards.

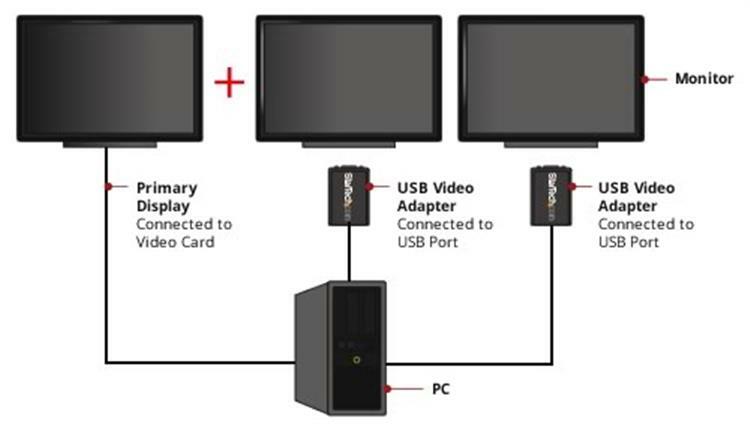

Application Diagram
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
(USB2VGAE2)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| AV Input | USB 2.0 | |
| AV Output | VGA | |
| Chipset ID | Trigger - Trigger 1+ | |
| Memory | 16MB | |
| USB Pass-Through | No | |
| Performance | ||
| General Specifications | This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset. | |
| Supported Resolutions | Standard: 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 Widescreen: 1680x1050, 1440x900, 1280x800, 1280x768, 1152x864, 800x600 | |
| Connector(s) | ||
| Connector A | 1 - USB Type-A (4 pin) USB 2.0 Male Input | |
| Connector B | 1 - VGA (15 pin, High Density D-Sub) Female Output | |
| Software | ||
| OS Compatibility | Windows® 10 (32/64) Windows 8 / 8.1 (32/64) Windows 7(32/64) Windows Vista (32/64) Windows XP (32/64) | |
| Special Notes / Requirements | ||
| Note | This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as DisplayLink® or Fresco Logic® | |
| Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources | ||
| This USB video adapter is not intended for graphical intensive applications, such as gaming | ||
| System and Cable Requirements | System Processor: 1.2GHz System Memory: 512MB | |
| Physical Characteristics | ||
| Cable Length | 18 in [457.2 mm] | |
| Color | Gray | |
| Product Height | 2 in [5 cm] | |
| Product Length | 3 in [75 mm] | |
| Product Width | 1.7 in [42 mm] | |
| Weight of Product | 2.8 oz [80 g] | |
| Packaging Information | ||
| Package Height | 1.6 in [40 mm] | |
| Package Length | 8.3 in [21 cm] | |
| Package Width | 5.8 in [14.8 cm] | |
| Shipping (Package) Weight | 8.3 oz [235 g] | |
| What's in the Box | ||
| Included in Package | 1 - USB to VGA Adapter | |
| 1 - Driver and Software CD | ||
| 1 - Instruction Manual | ||
| SKU | USB2VGAE2 |
| Barcode # | 65030835619 |
| Brand | Startech |
| Shipping Weight | 0.2300kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.040m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.001260000m3 |
